Starting and Charging Schematics

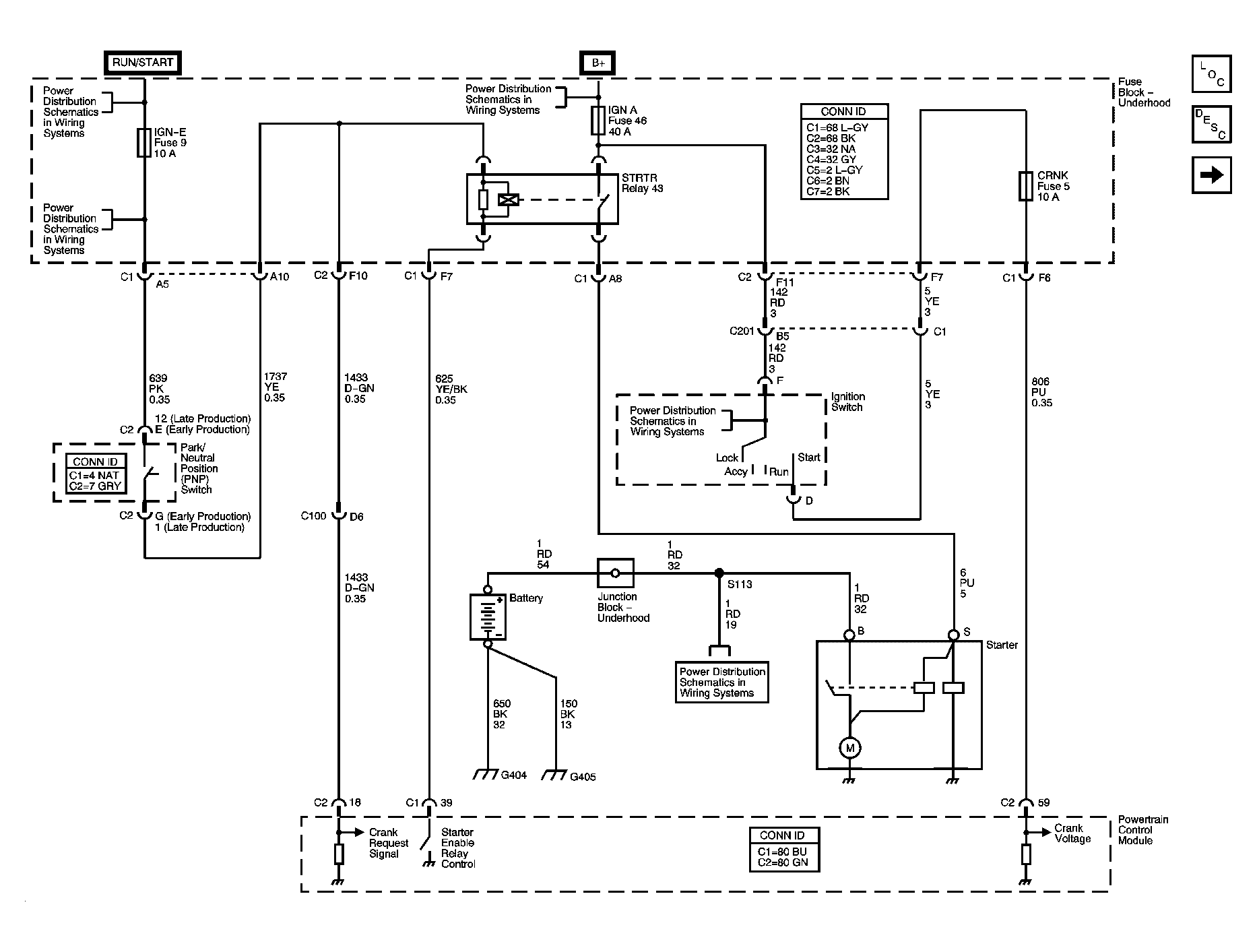

Fig 1: Starting System
GM1177906Courtesy of GENERAL MOTORS CORP.

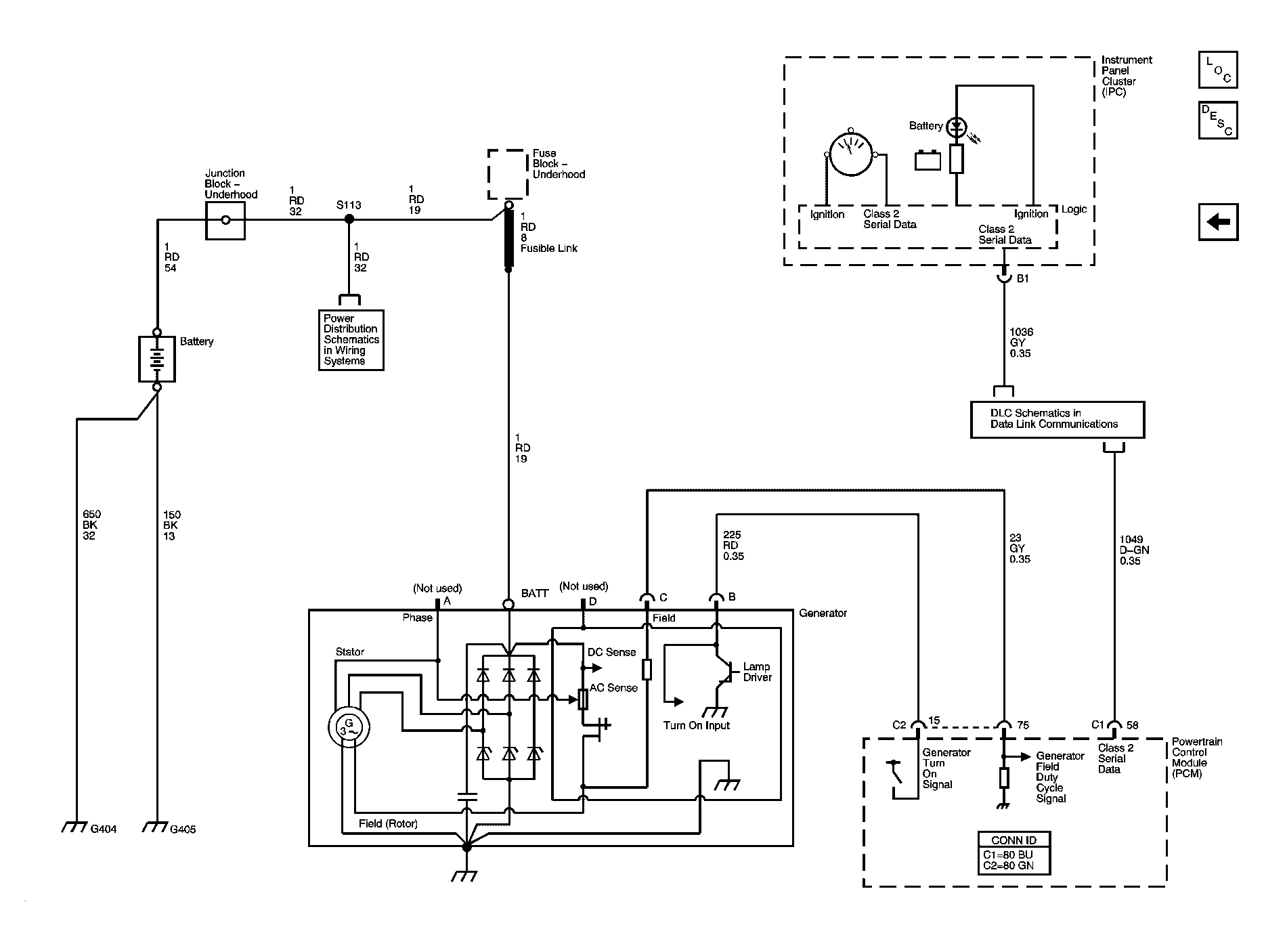

Fig 2: Charging System
GM1177909Courtesy of GENERAL MOTORS CORP.
