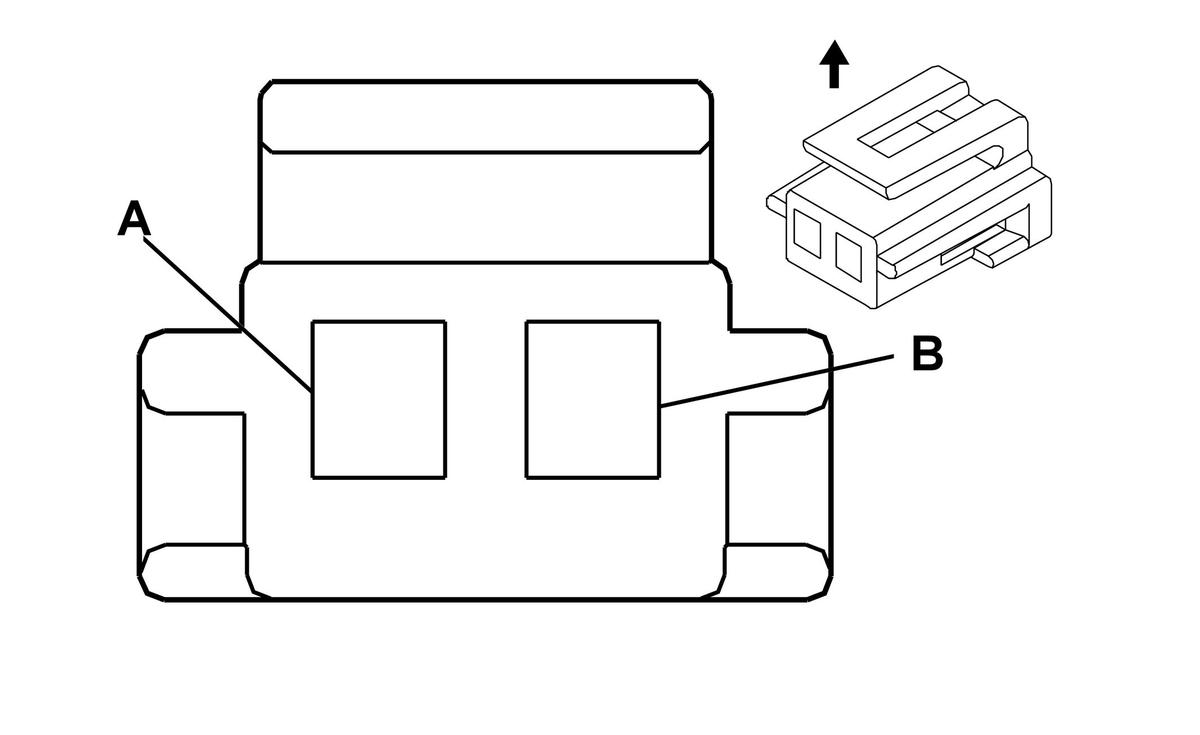

Recirculation Actuator Connector End View
Recirculation Actuator
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12059110
- 2-Way F Metri-Pack 150 Series (BK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
PK/WH |
1648 |
Close Recirculation Door Control |
| B |
L-GN/BK |
1647 |
Open Recirculation Door Control |
