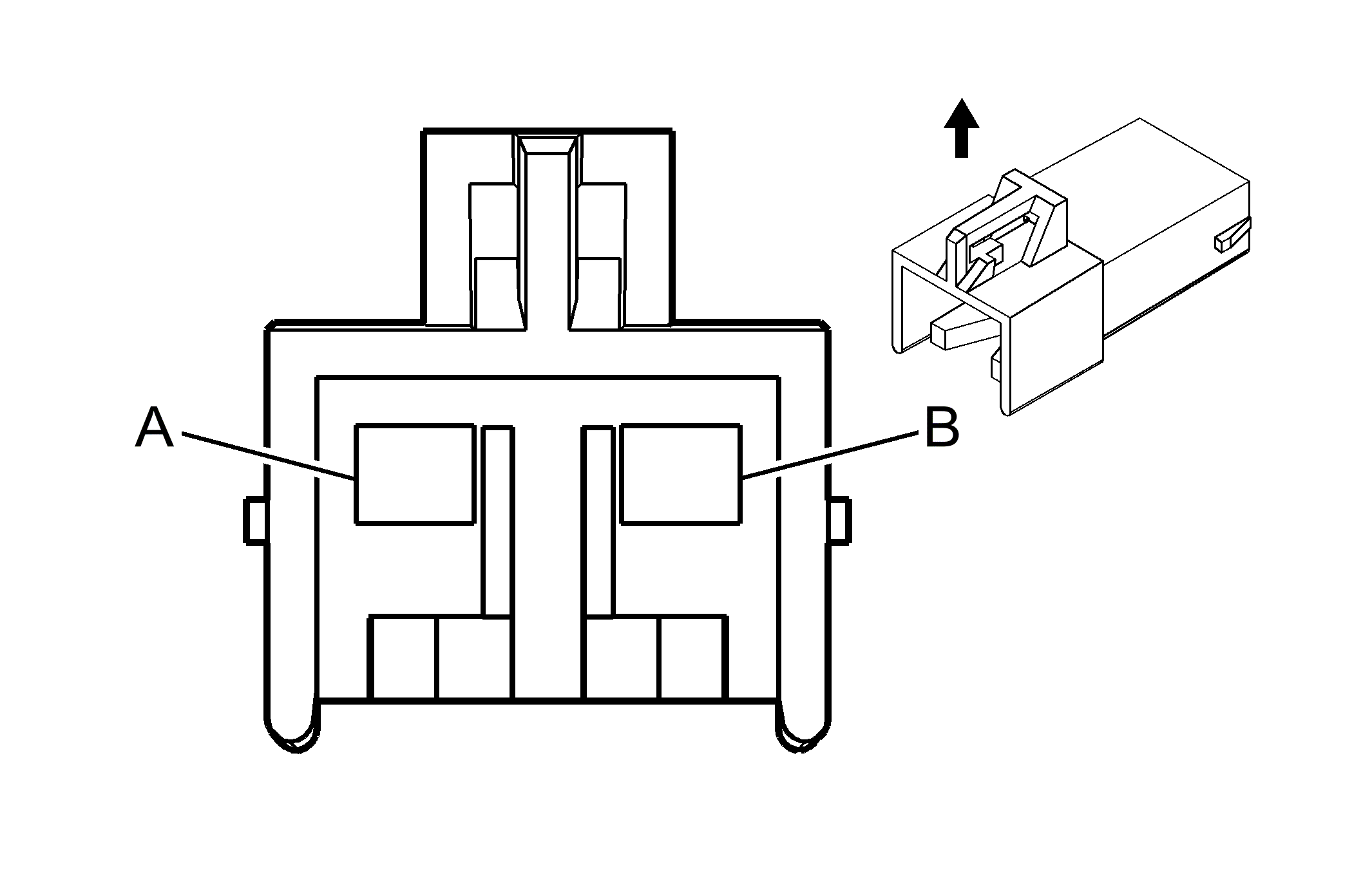

Inflatable Restraint Side Impact Module Connector End View - Left
Inflatable Restraint Side Impact Module - Left
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12110288
- 2-Way F Metri-Pack 280 Series (YE)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
D-GN |
2105 |
Left Side Impact Module High Control |
| B |
BN |
2106 |
Left Side Impact Module Low Control |
