ABS Schematics

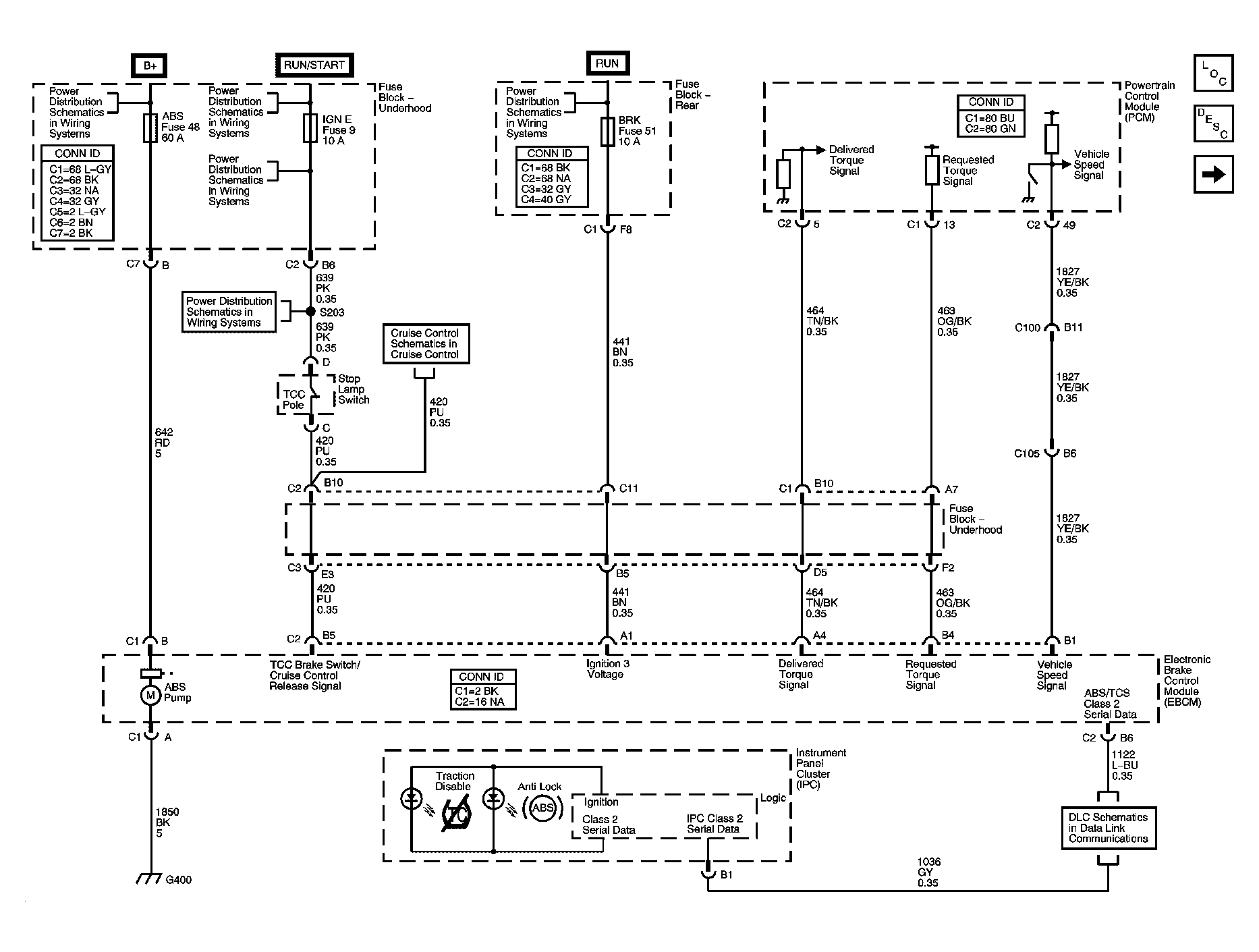

Fig 1: Power, Ground and Electronic Brake Control Module

Courtesy of GENERAL MOTORS CORP.

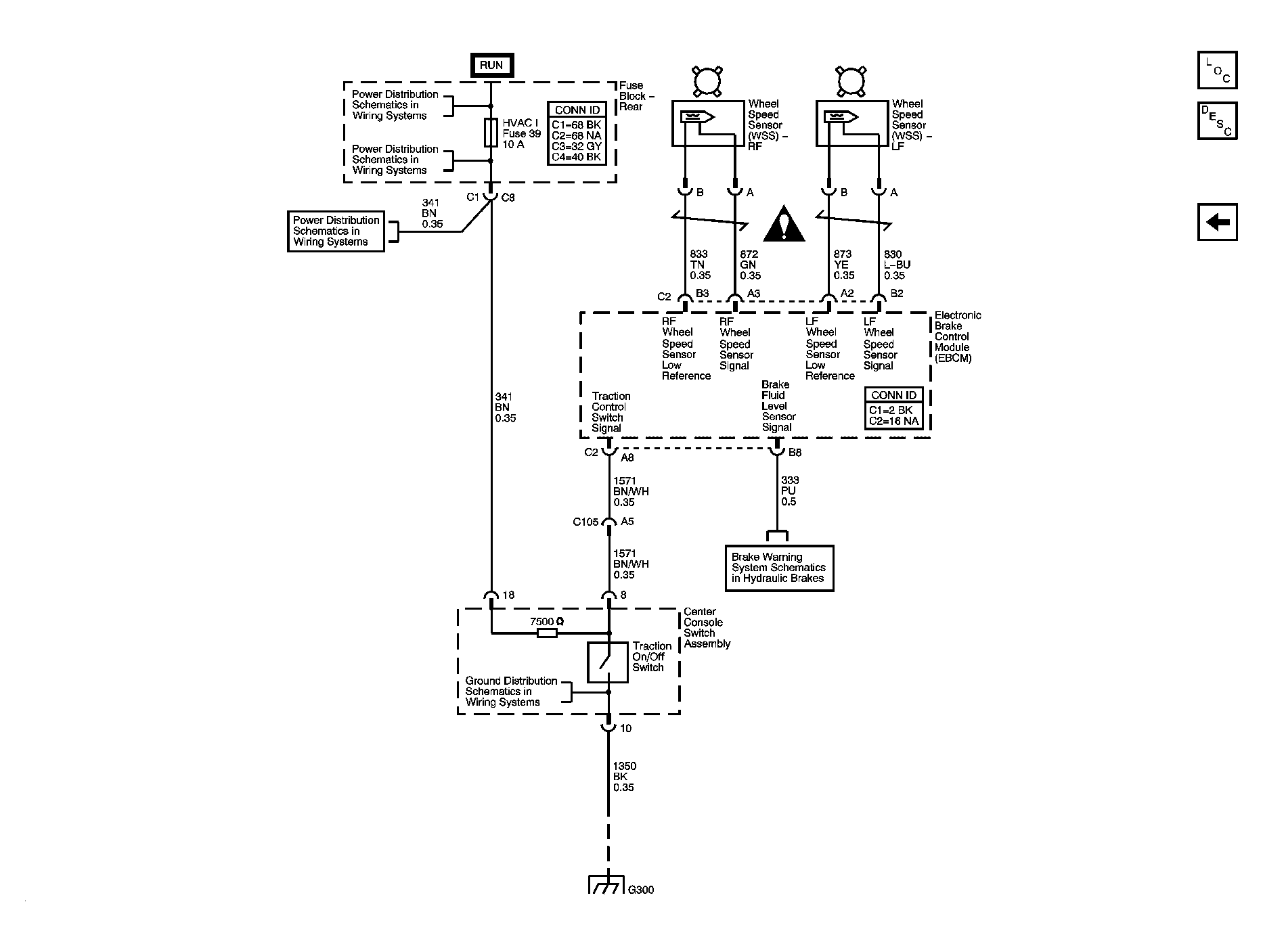

Fig 2: Wheel Speed Sensors and Traction Control

Courtesy of GENERAL MOTORS CORP.
