Door Lock/Indicator Schematics

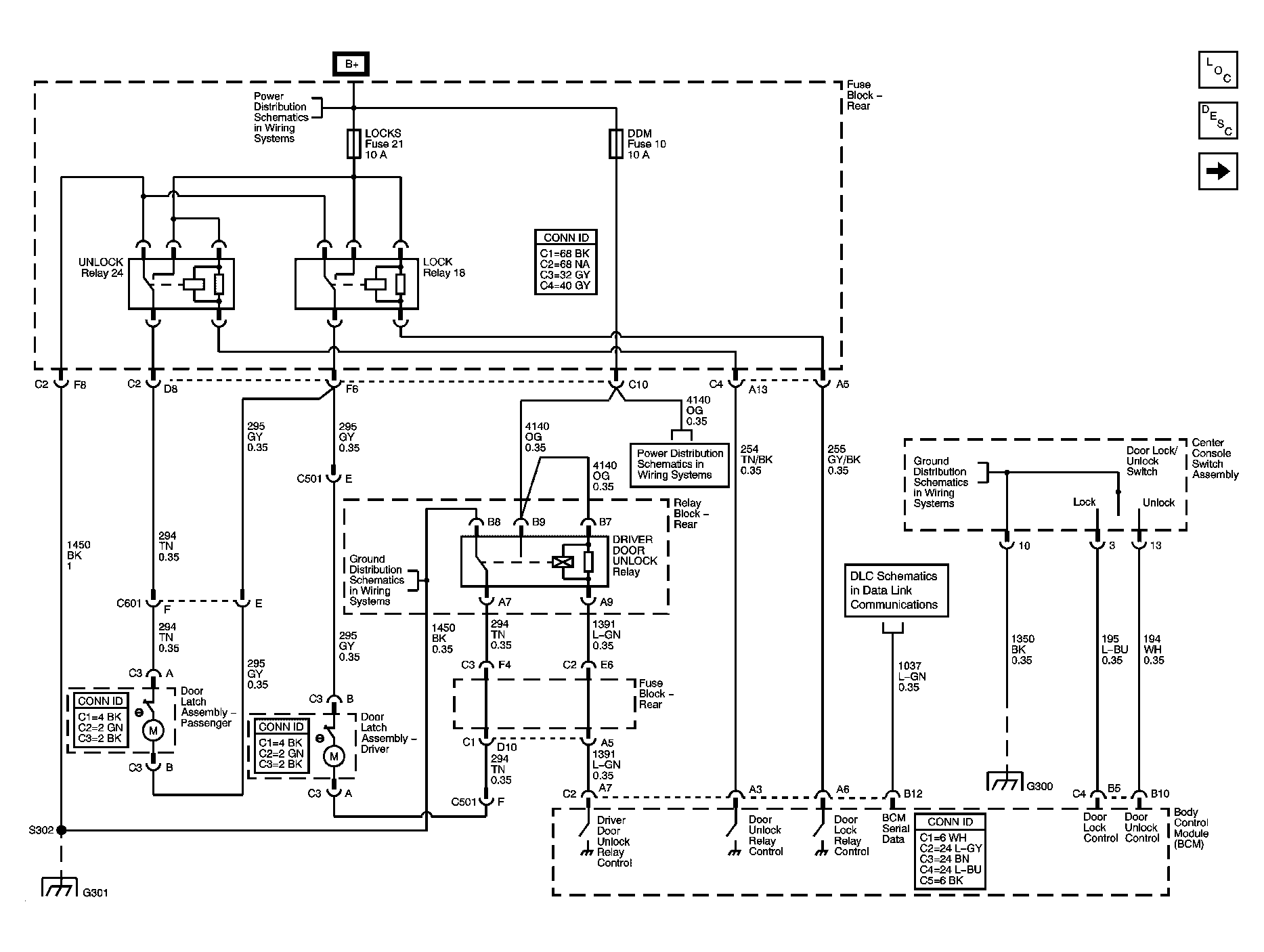

Fig 1: Power Door Locks Schematic

Courtesy of GENERAL MOTORS CORP.

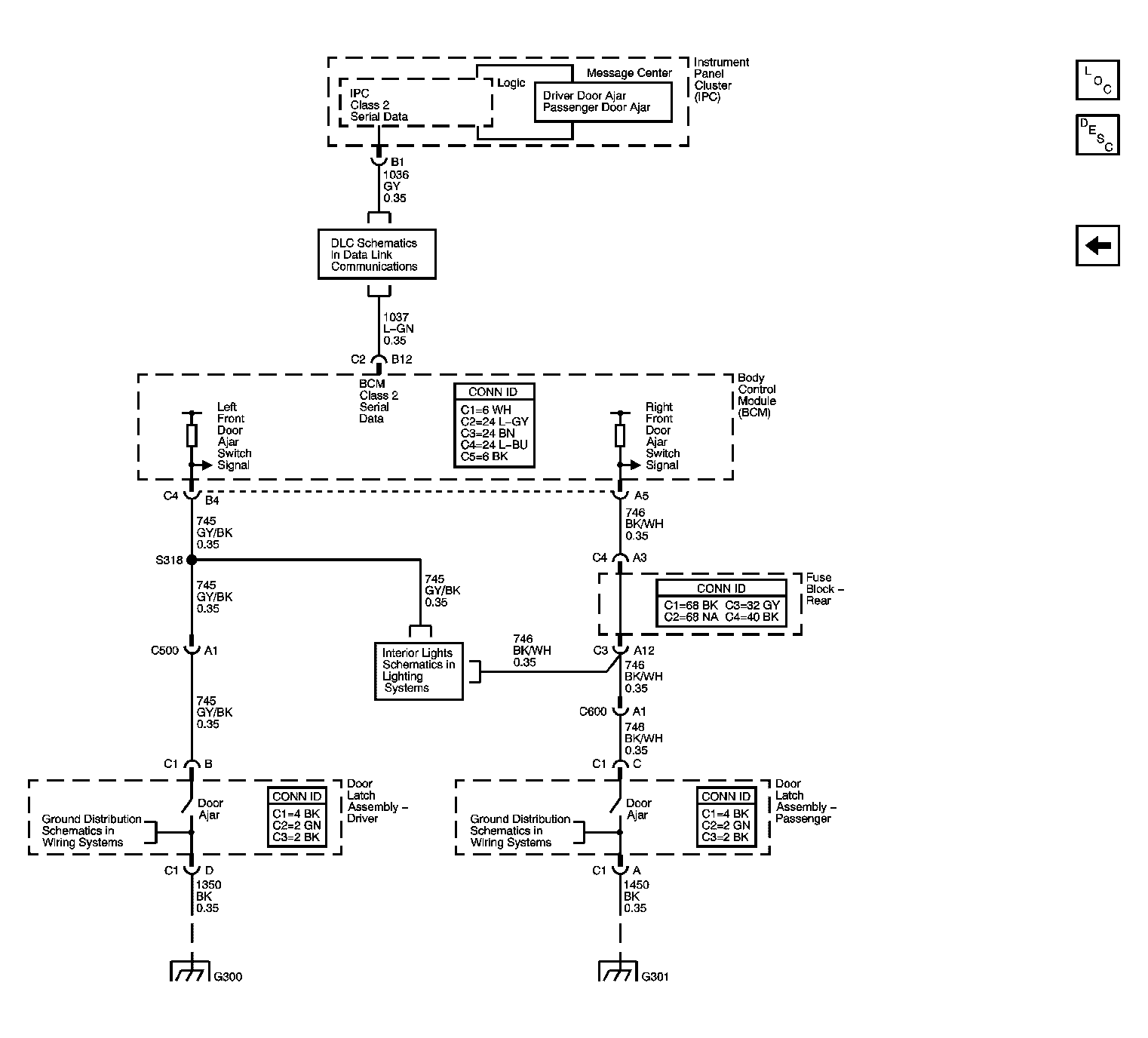

Fig 2: Door Ajar & Indicator Schematic

Courtesy of GENERAL MOTORS CORP.
