Lumbar Support Schematics

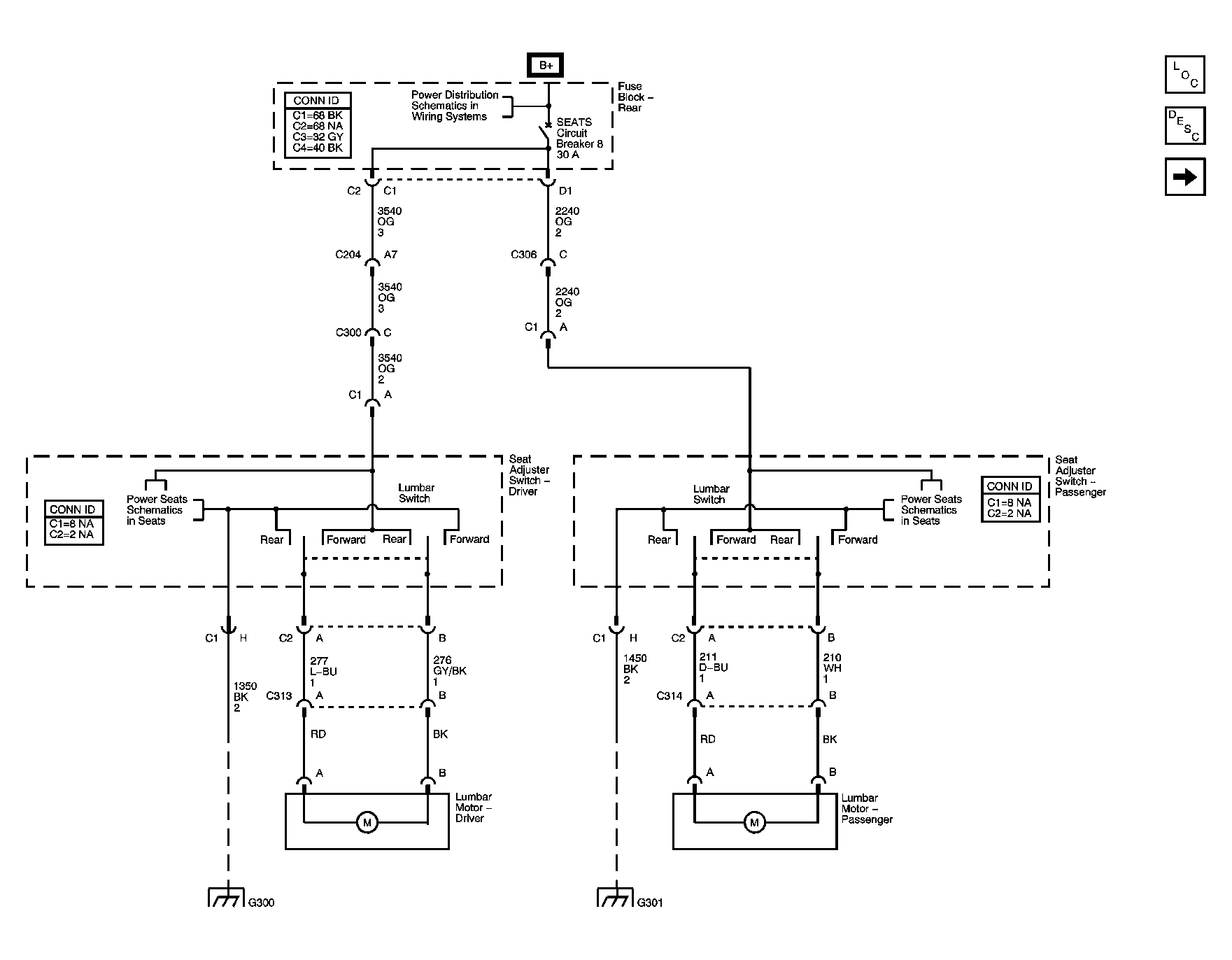

Fig 1: Driver 6-Way, Passenger 2-Way w/o Memory
GM1259292Courtesy of GENERAL MOTORS CORP.

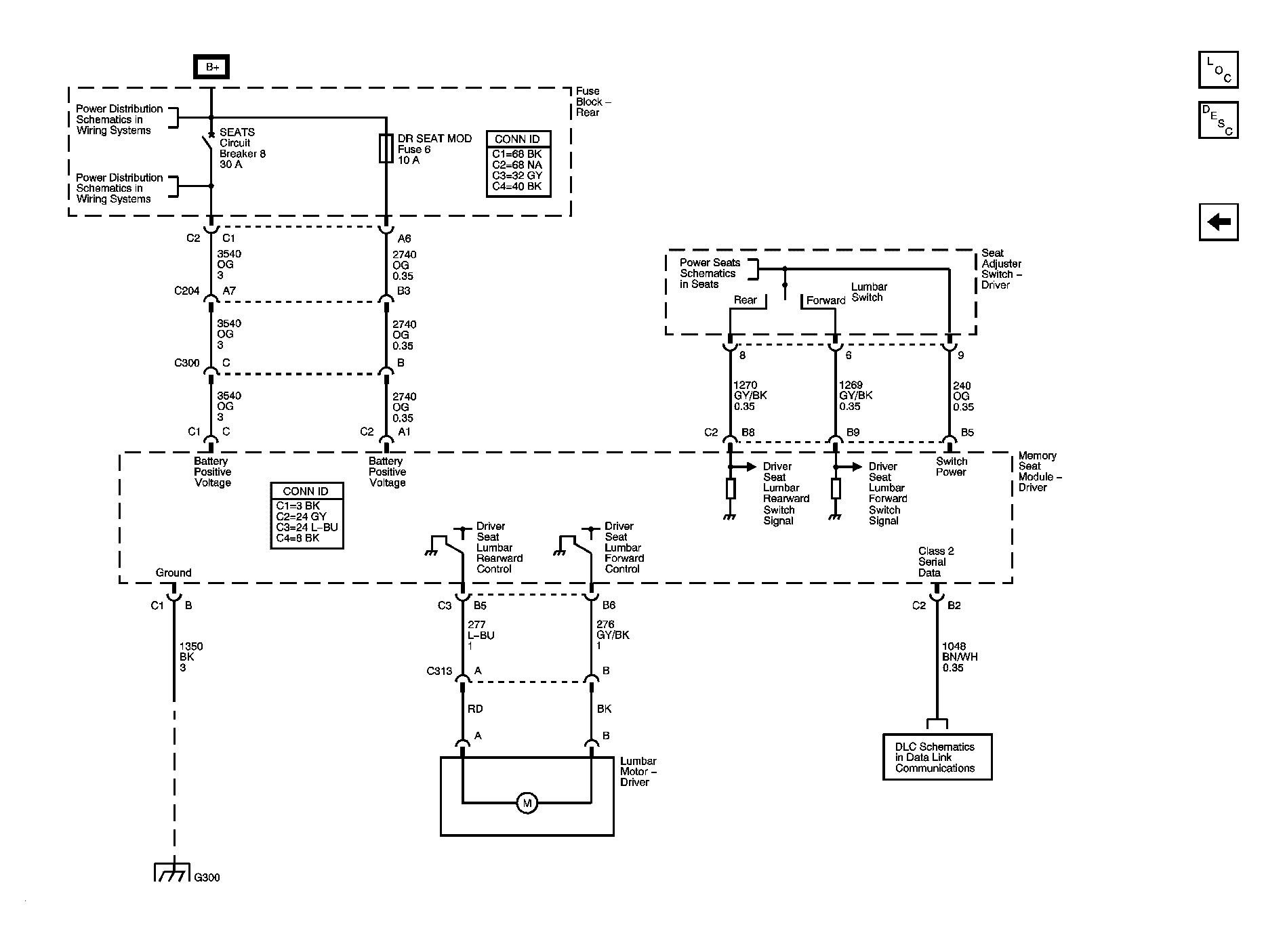

Fig 2: Driver 6-Way with Memory
GM1259425Courtesy of GENERAL MOTORS CORP.
