Installation Procedure

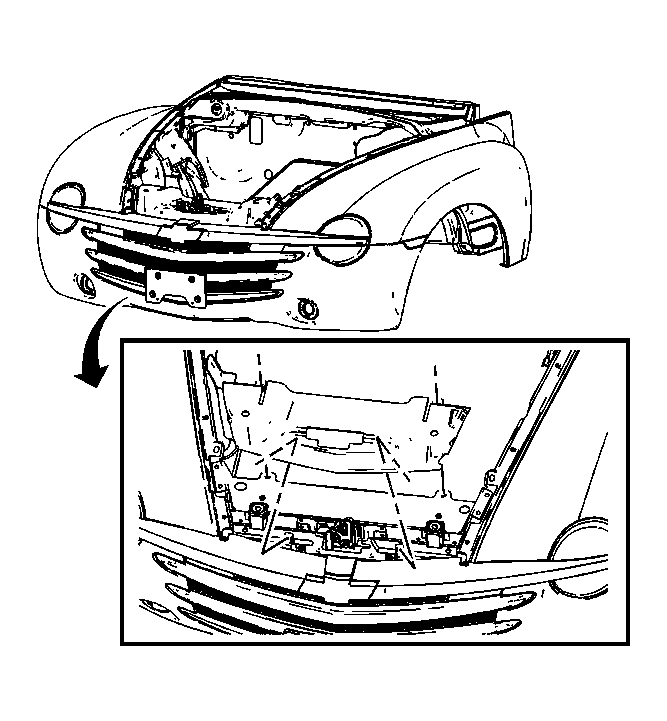

    Fig 1: View of Splash Shield
    GM1344839Courtesy of GENERAL MOTORS CORP.
  1. Install the splash shield onto the vehicle.
    2. Fig 2: Identifying Splash Shield Retainers
    GM1344912Courtesy of GENERAL MOTORS CORP.
  2. Install the splash shield retainers.
  3. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls - 4.8L, 5.3L, and 6.0L.
  4. Close the hood.
