Automatic Transmission Shift Lock Control Connector End Views

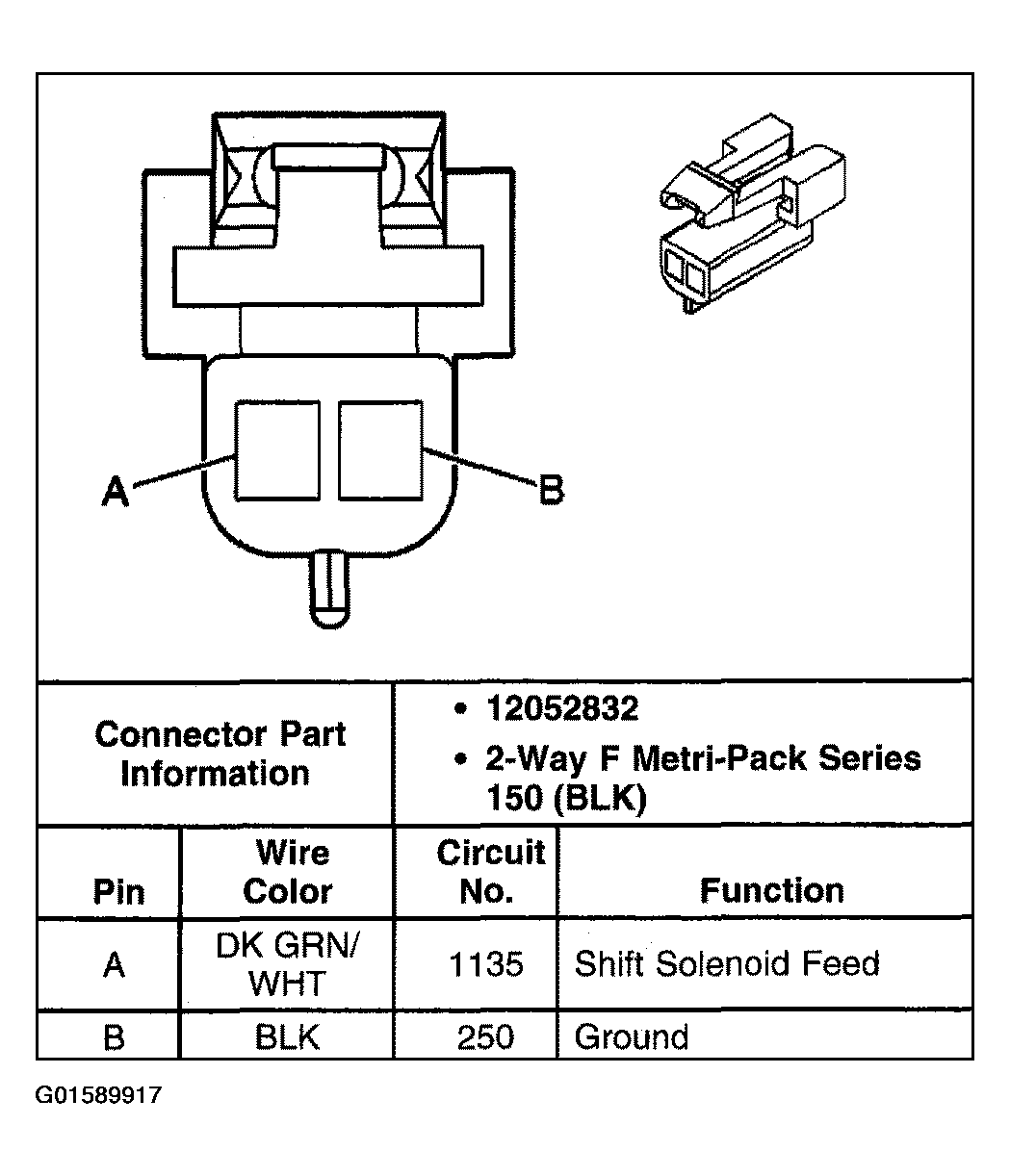

Fig 1: Automatic Transmission Shift Lock Control Connector End Views - A/T Shift Lock Control Solenoid
G01589917Courtesy of GENERAL MOTORS CORP.
