Lower Intake Manifold, Cylinder Head, and Components

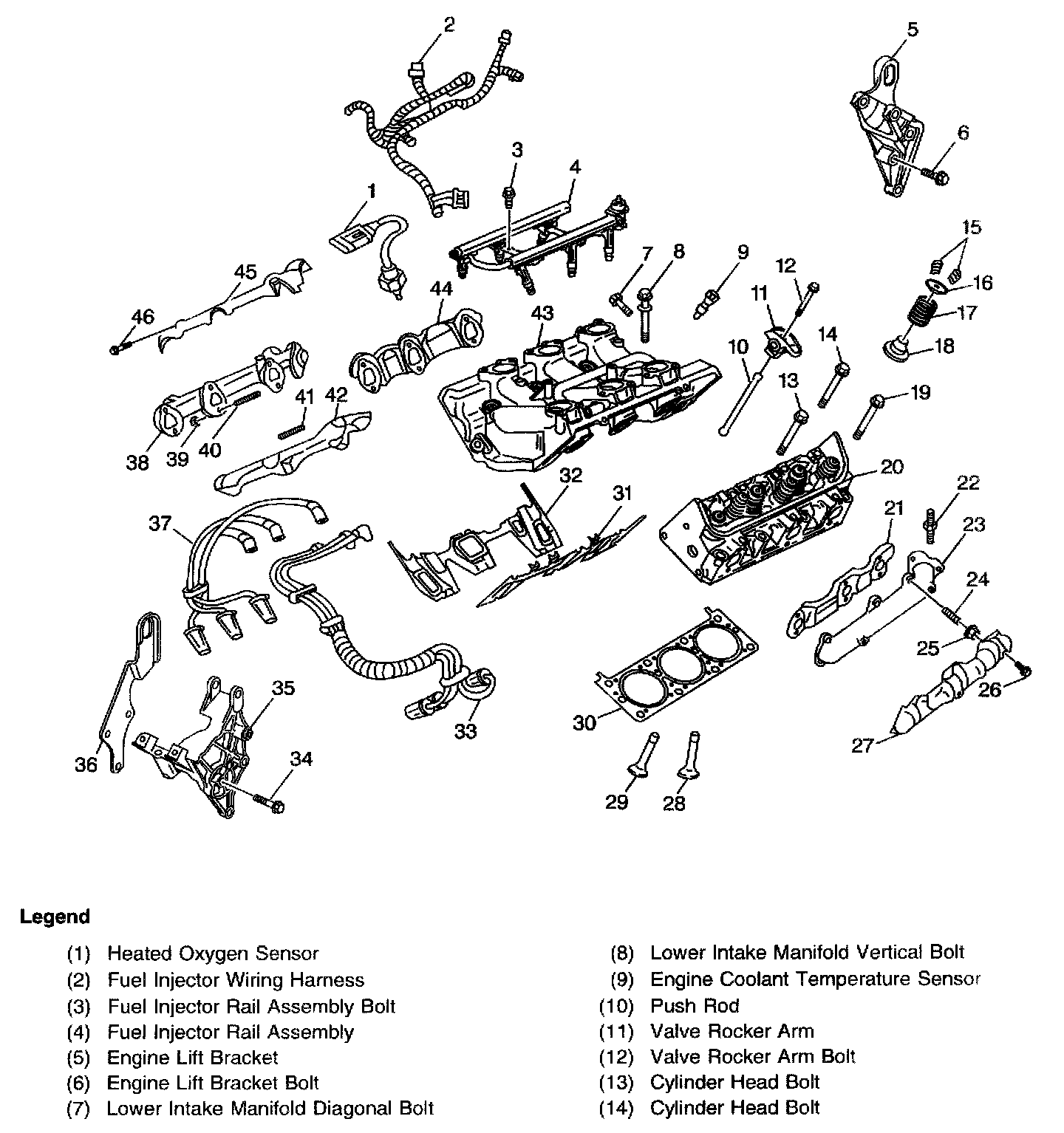

Lower Intake Manifold, Cylinder Head, and Components (Part 1 Of 2):

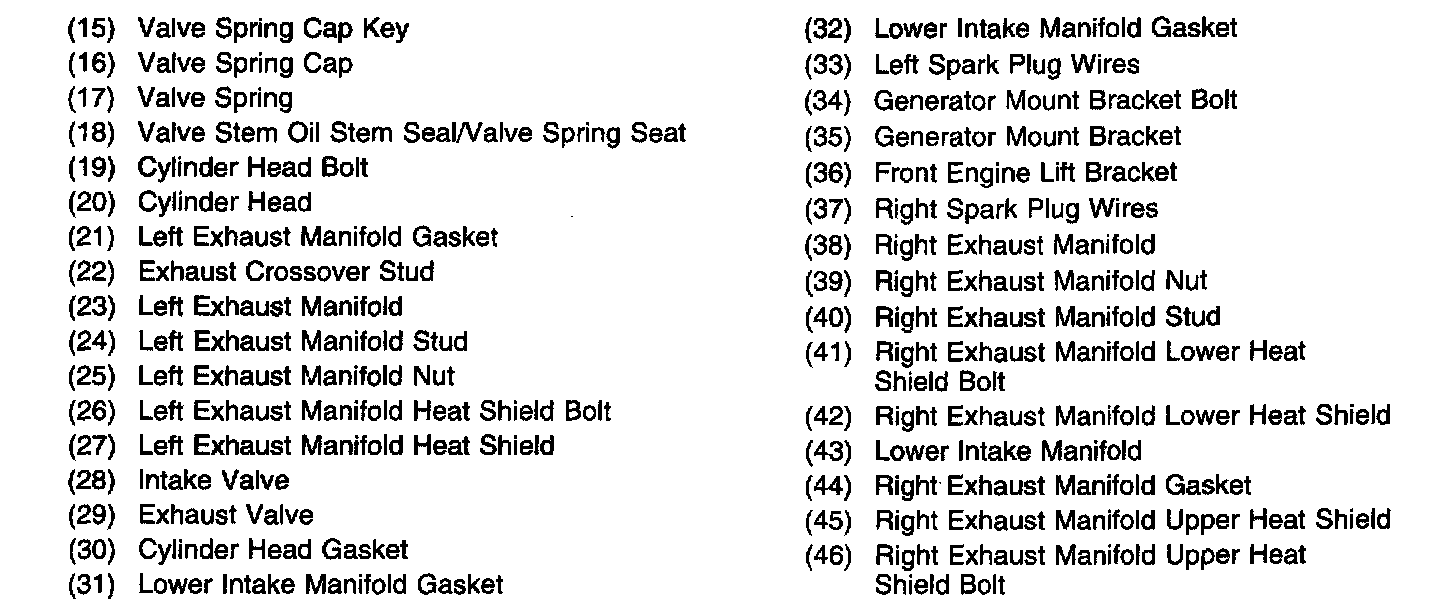

Lower Intake Manifold, Cylinder Head, and Components (Part 2 Of 2):





Lower Intake Manifold, Cylinder Head, and Components
