DTC P0650: Malfunction Indicator Light Control Circuit
>>
Diagnostic Procedures
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedures

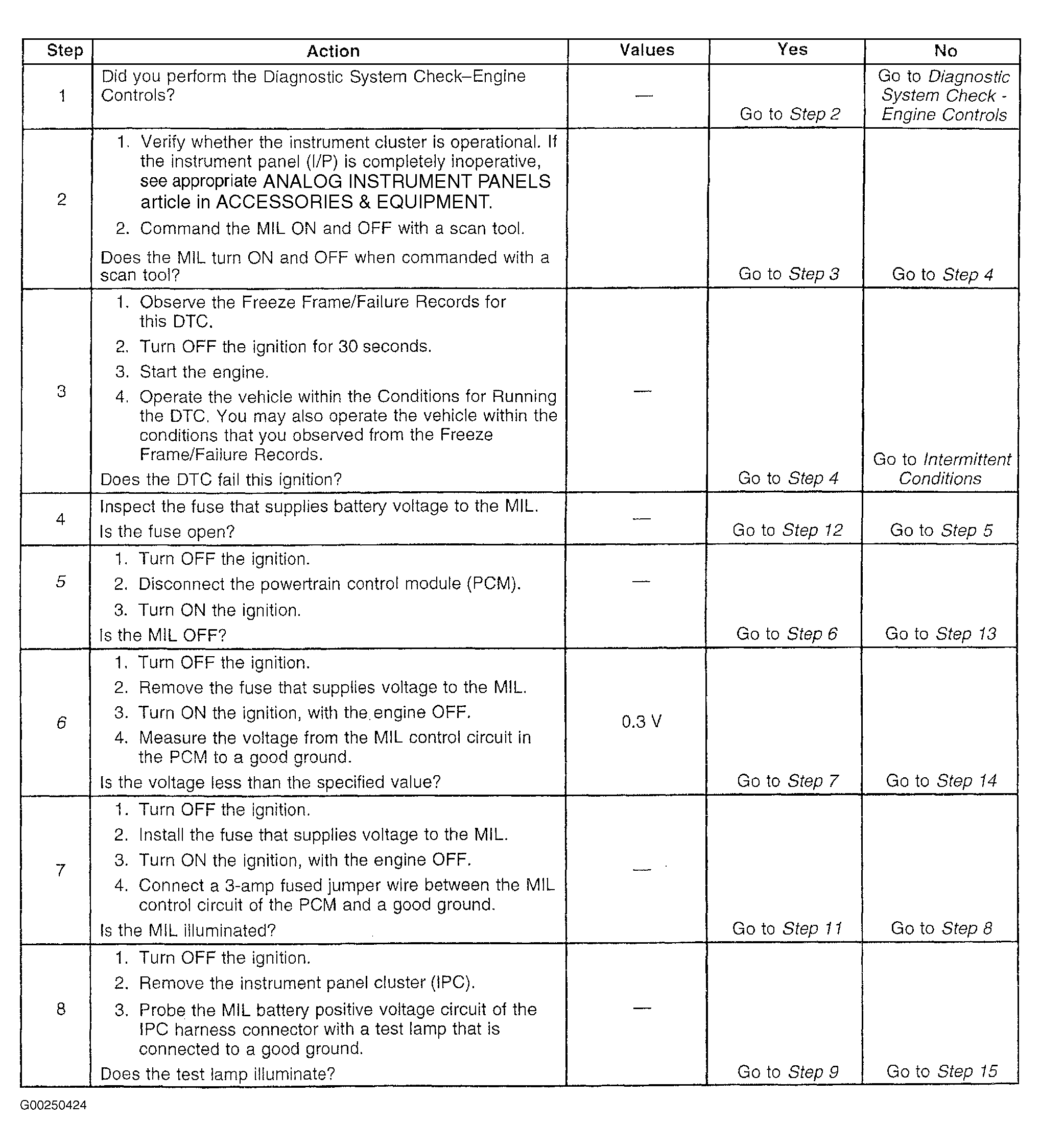

Fig 1: DTC P0650: Malfunction Indicator Light Control Circuit (Steps 1-8)
Courtesy of GENERAL MOTORS CORP.

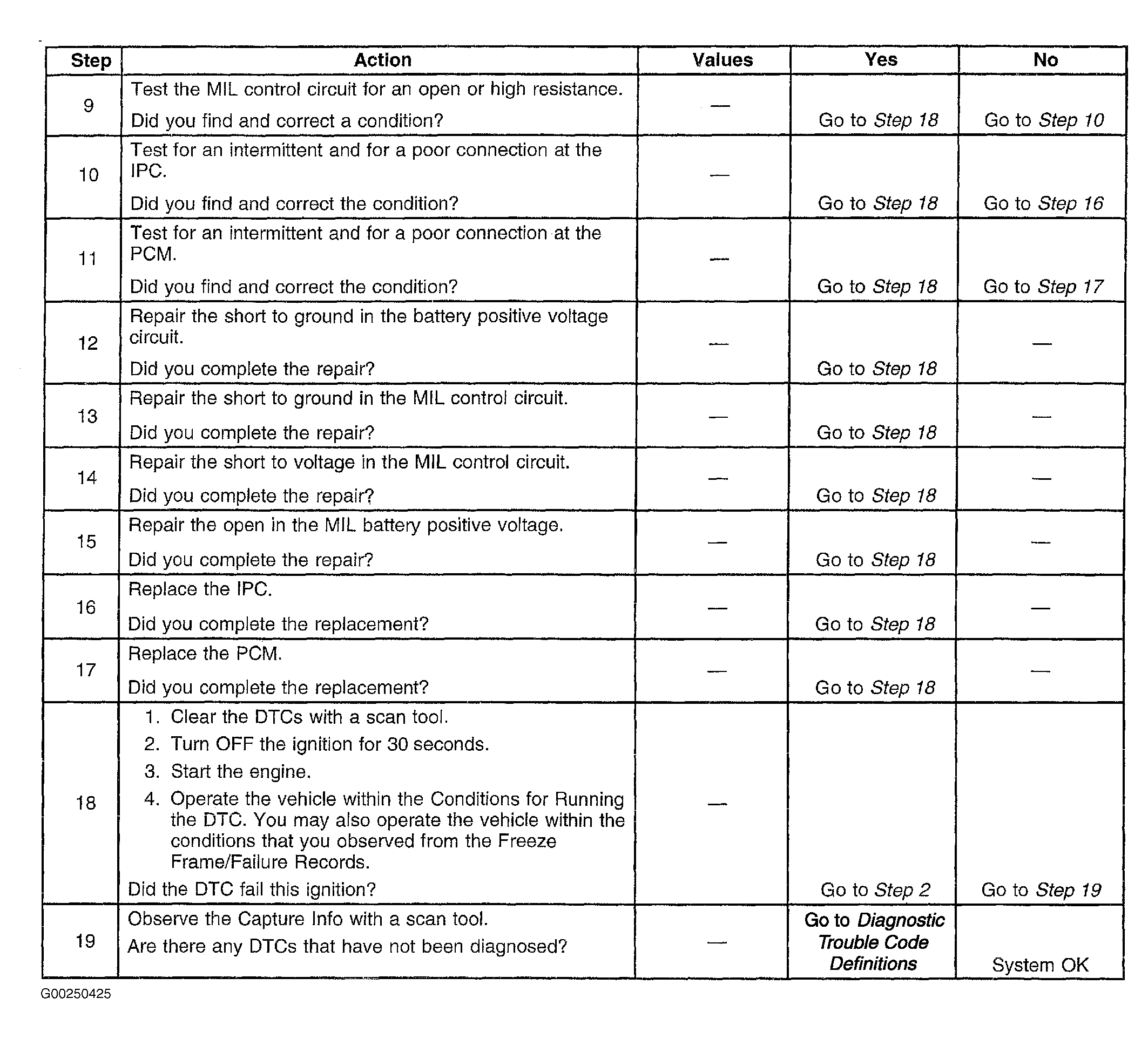

Fig 2: DTC P0650: Malfunction Indicator Light Control Circuit (Steps 9-19)
Courtesy of GENERAL MOTORS CORP.
