Diagnostic Procedures

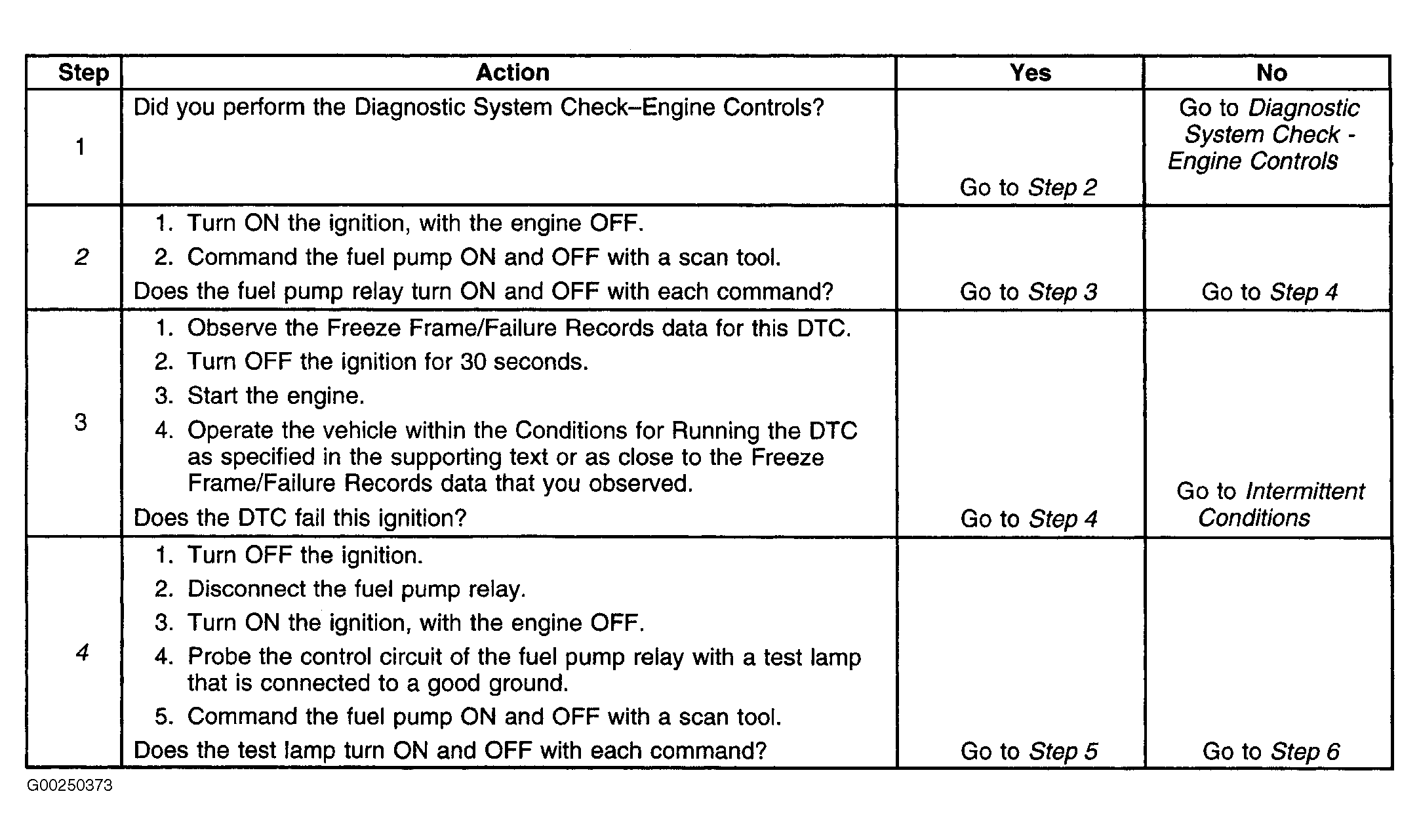

Fig 1: DTC P0230: Fuel Pump Control Circuit (Steps 1-4)
G00250373Courtesy of GENERAL MOTORS CORP.

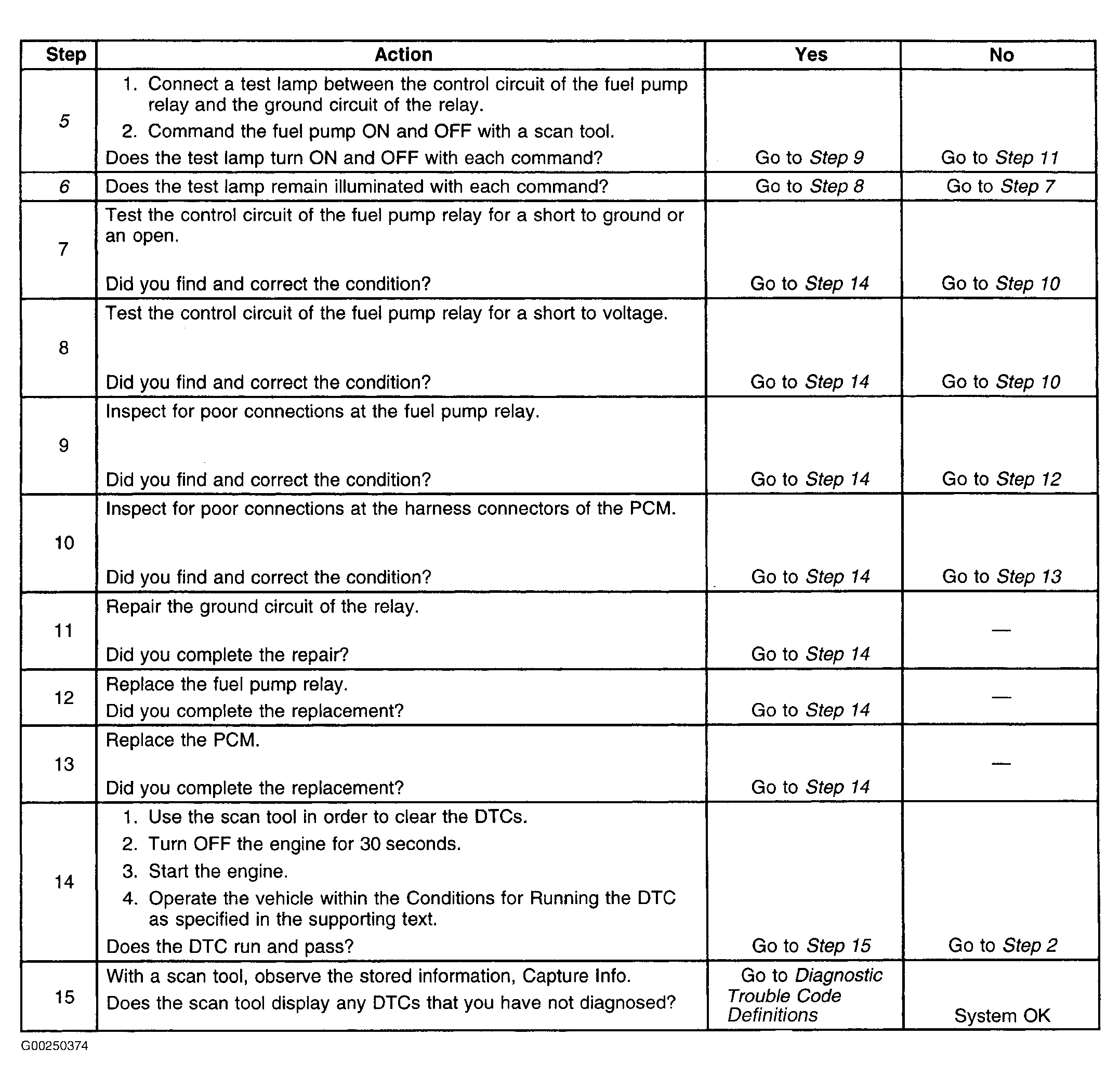

Fig 2: DTC P0230: Fuel Pump Control Circuit (Steps 5-15)
G00250374Courtesy of GENERAL MOTORS CORP.
