Diagnostic Procedures

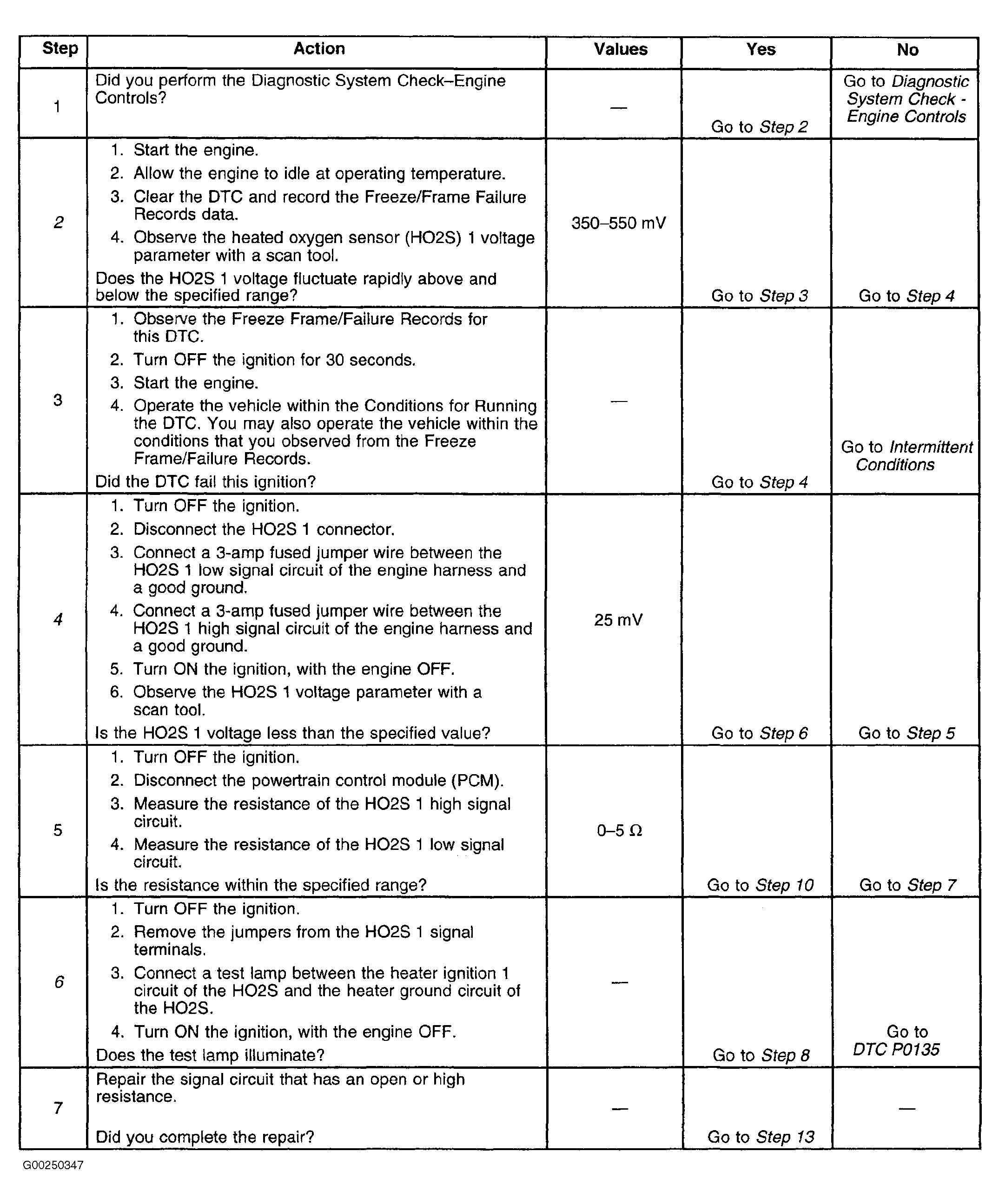

Fig 1: DTC P0130: Low Activity - Sensor 1 (Steps 1-7)
G00250347Courtesy of GENERAL MOTORS CORP.

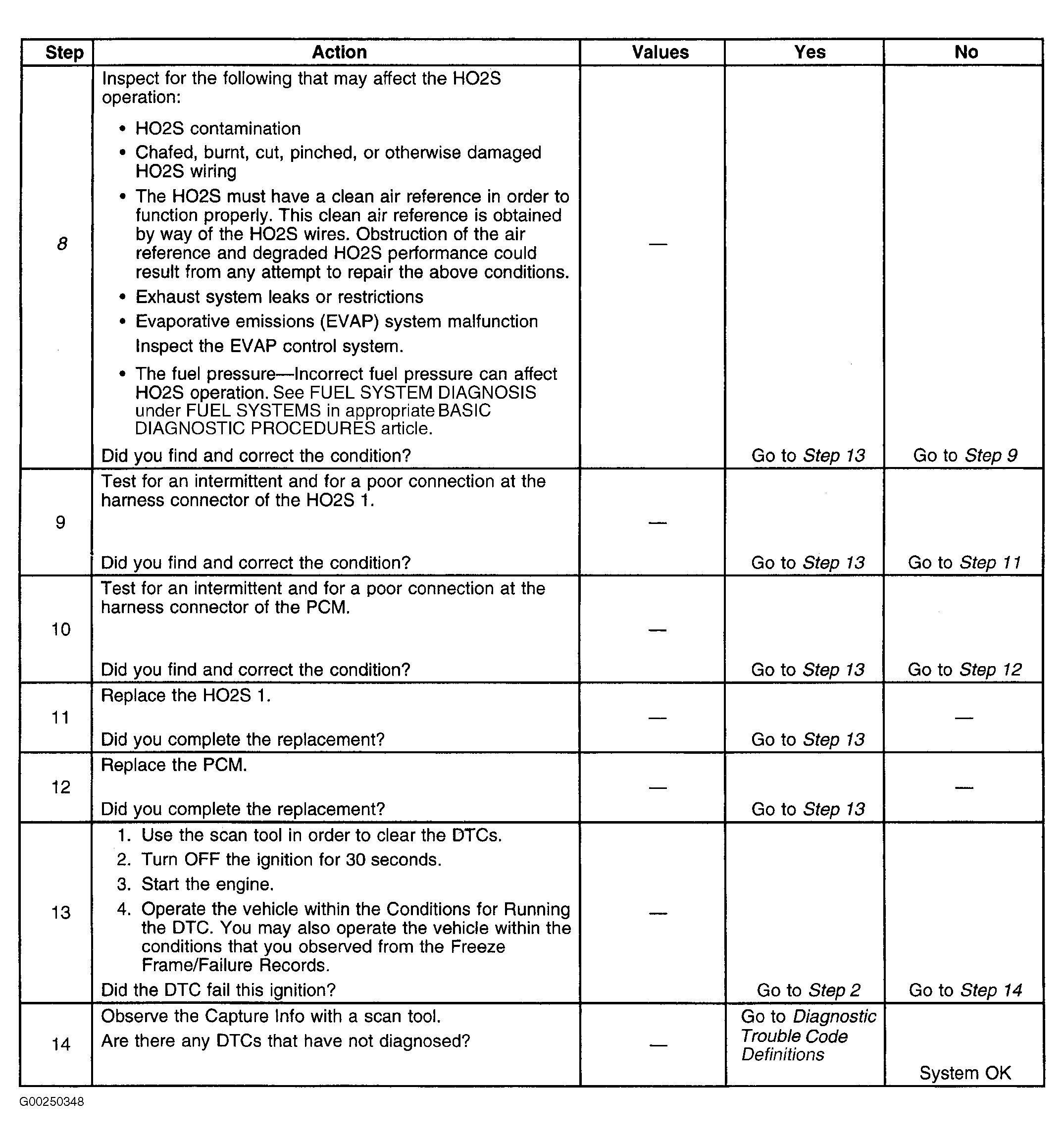

Fig 2: DTC P0130: Low Activity - Sensor 1 (Steps 8-14)
G00250348Courtesy of GENERAL MOTORS CORP.
