Vehicle Speed Sensor Connector End View (Harness Side)

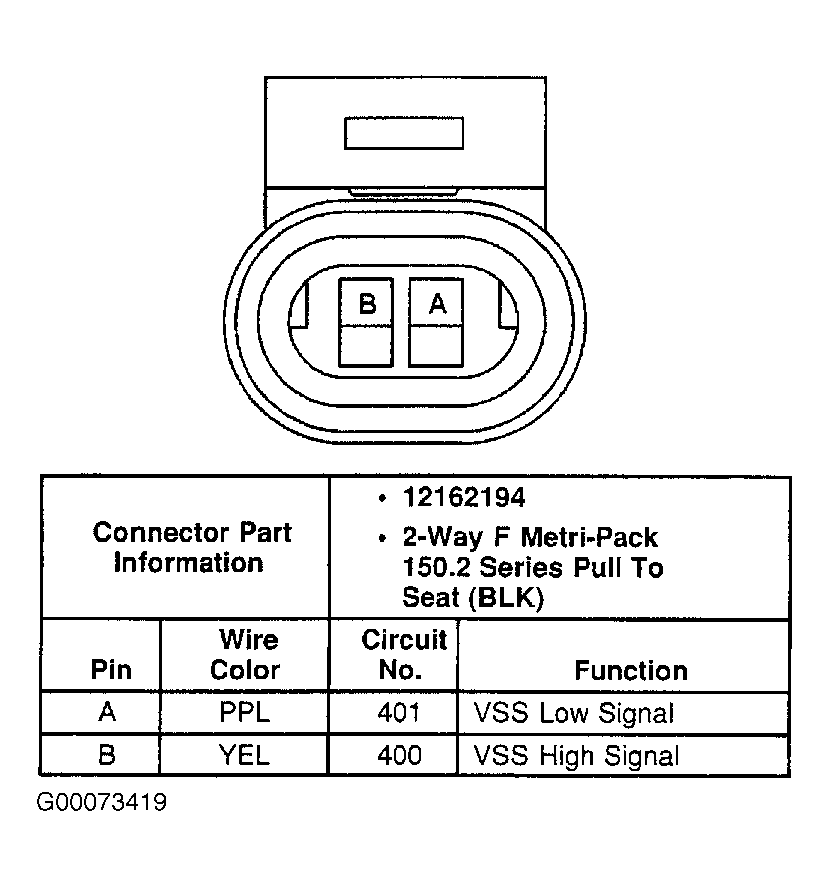

Fig 1: Vehicle Speed Sensor Connector (Harness Side)
G00073419Courtesy of GENERAL MOTORS CORP.
