Engine Electrical Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Positive Battery Cable |
| 2 |
Negative Battery Cable |
| 3 |
Junction Block-Underhood (Top and Bottom) |
| 4 |
G100 |
| 5 |
Battery |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |

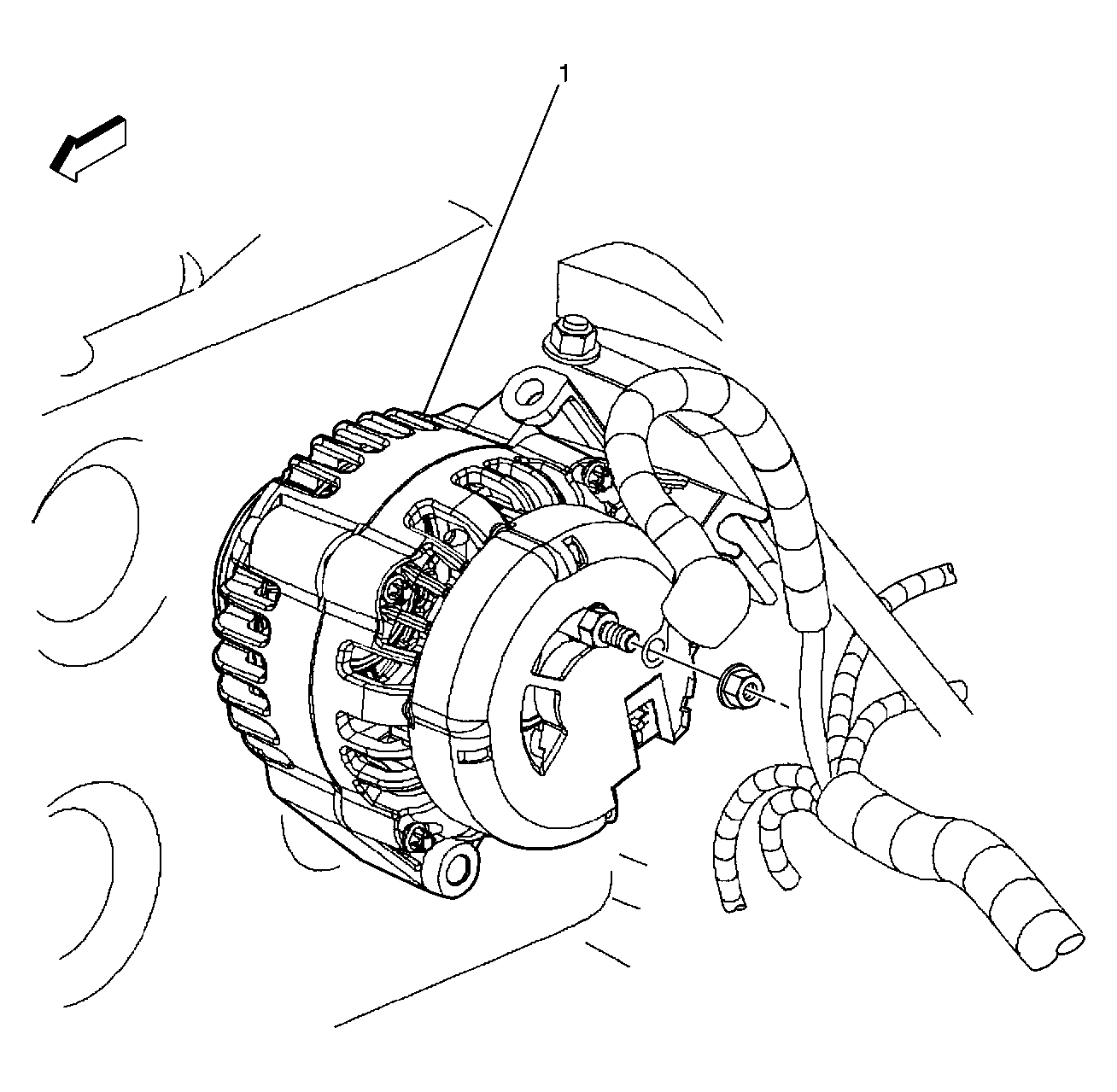

Generator |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Generator |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Starter |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Starter |
