Ground Distribution Schematics

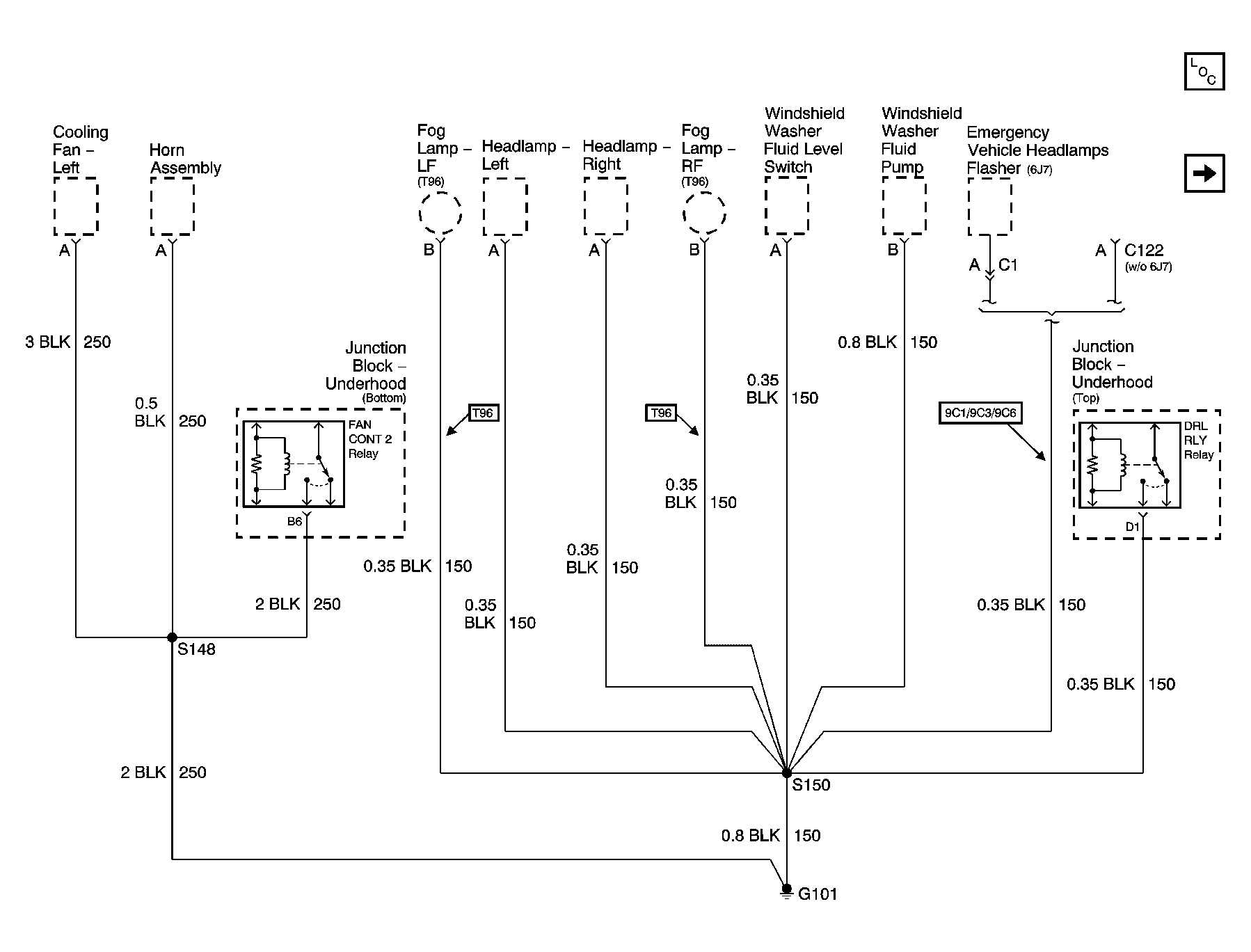

Fig 1: G101 Schematic

GM885123

Courtesy of GENERAL MOTORS CORP.

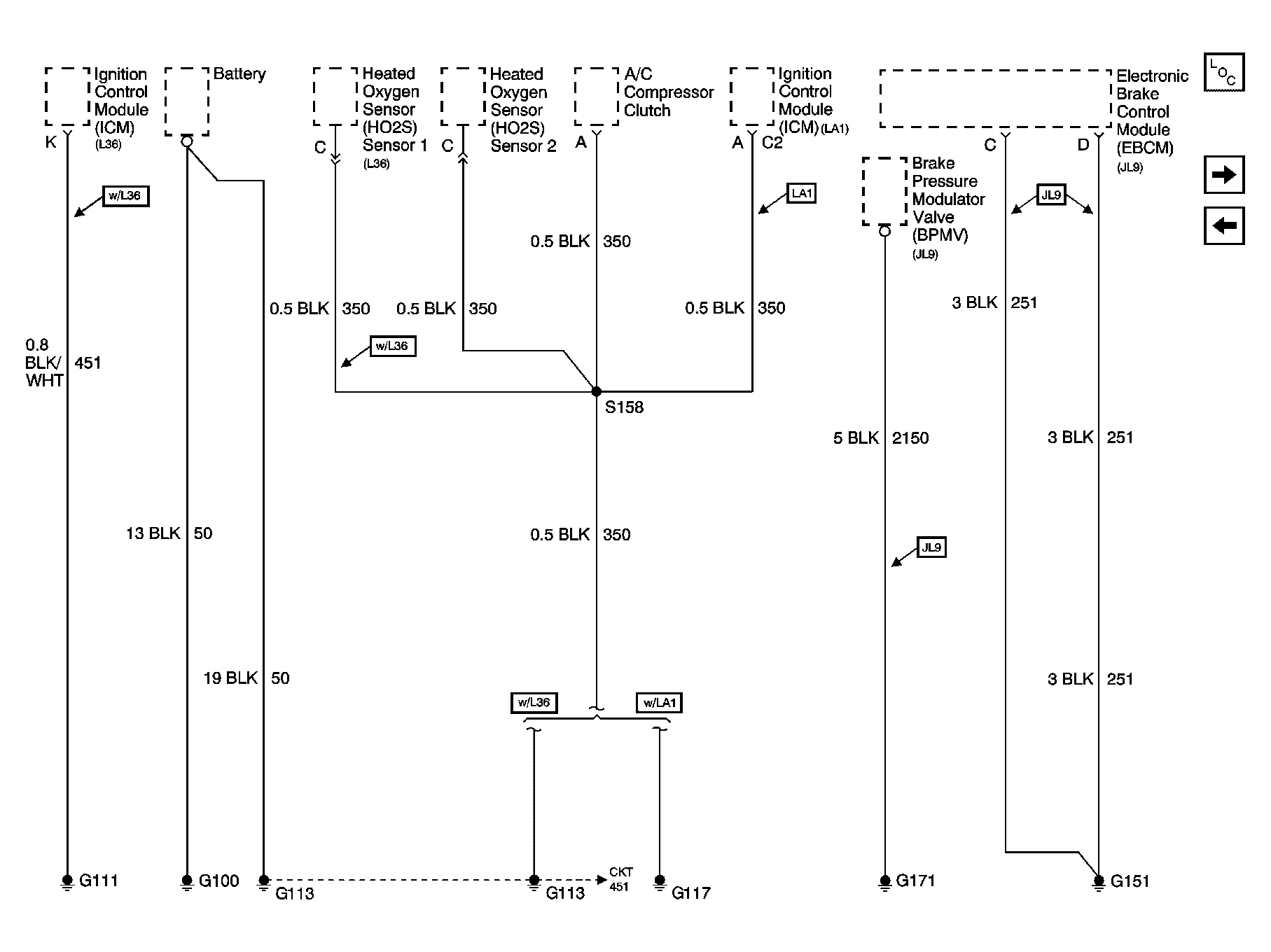

Fig 2: G100, G111, G113 (1 Of 2), G117, G151 & G171 Schematic

GM873279

Courtesy of GENERAL MOTORS CORP.

Fig 3: G113 Schematic (2 Of 2)

GM661977

Courtesy of GENERAL MOTORS CORP.

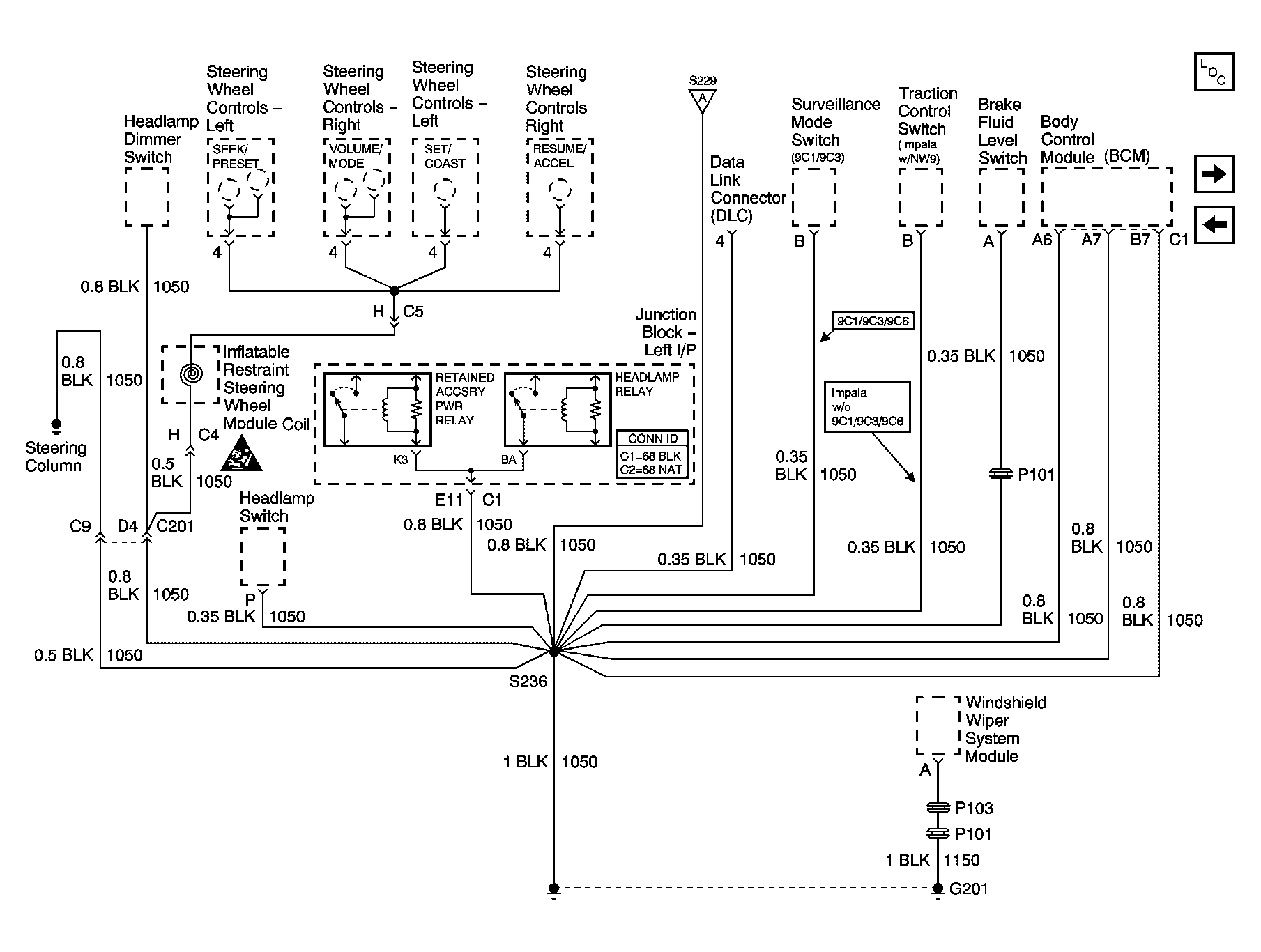

Fig 4: G201 Schematic (1 Of 2)

GM808814

Courtesy of GENERAL MOTORS CORP.

Fig 5: G201 Schematic (2 Of 2) (Early Production)

GM798535

Courtesy of GENERAL MOTORS CORP.

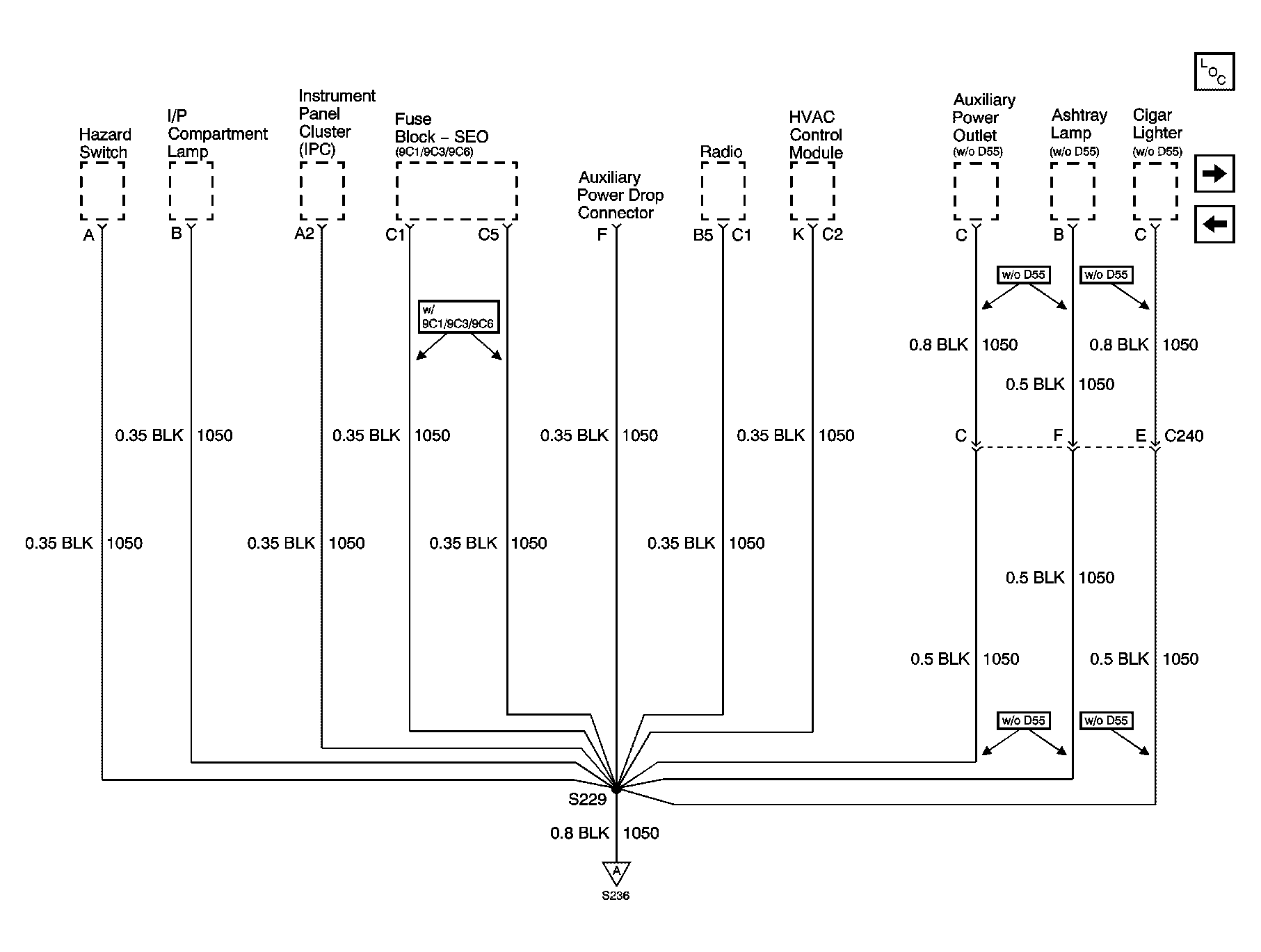

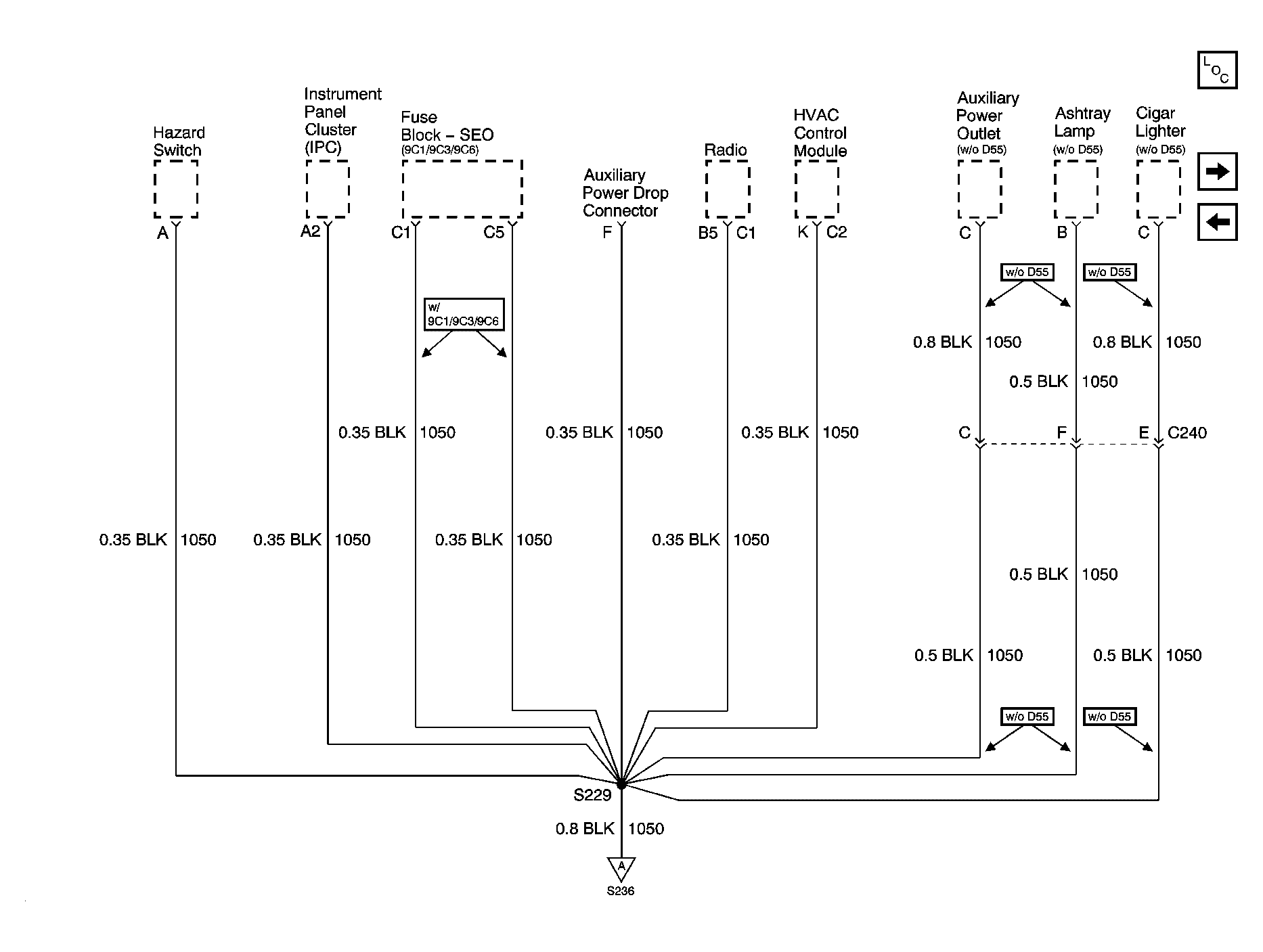

Fig 6: G201 Schematic (2 Of 2) (Late Production)

GM1194130

Courtesy of GENERAL MOTORS CORP.

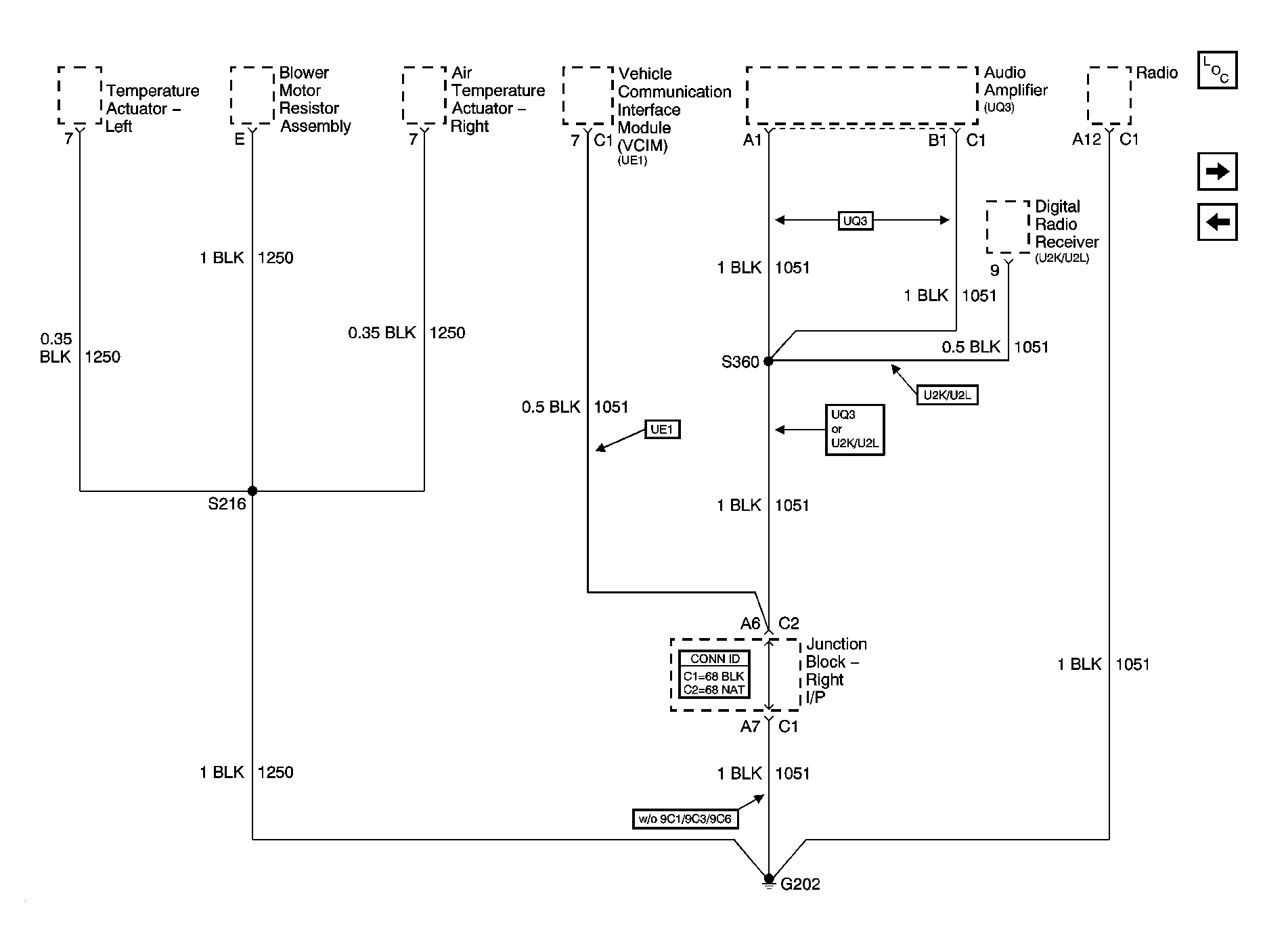

Fig 7: G202 Schematic

GM909202

Courtesy of GENERAL MOTORS CORP.

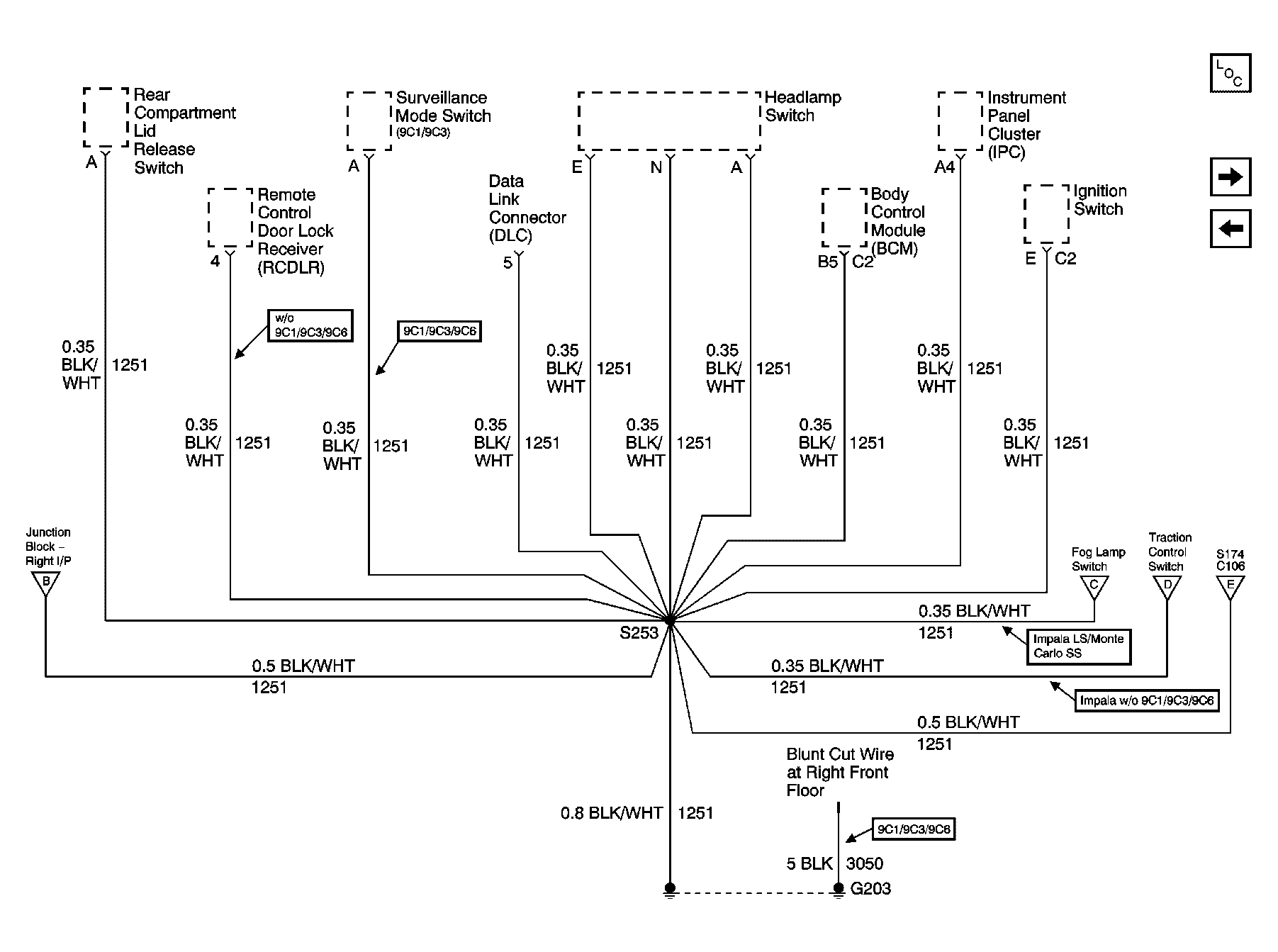

Fig 8: G203 Schematic (1 Of 3)

GM808815

Courtesy of GENERAL MOTORS CORP.

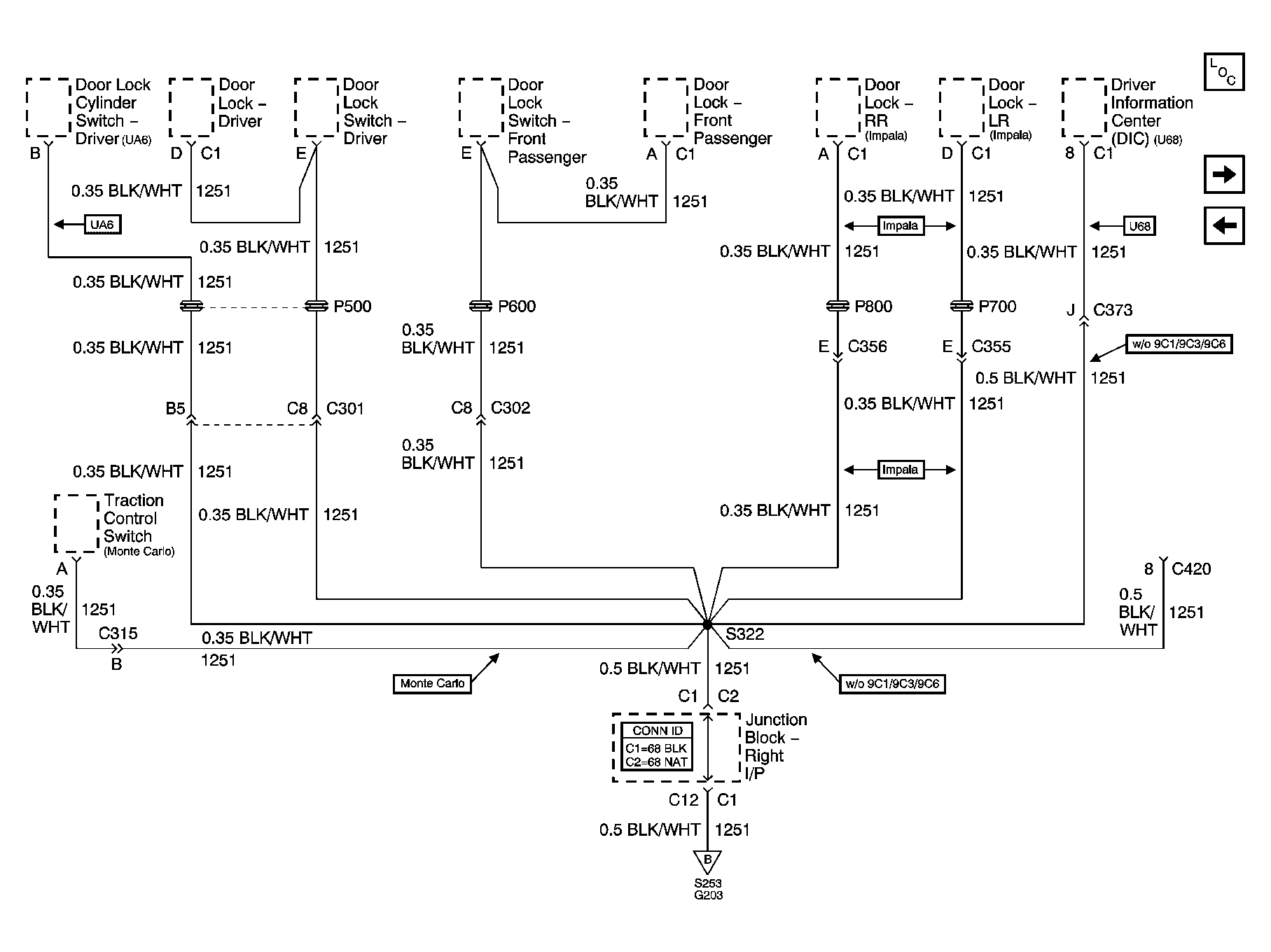

Fig 9: G203 Schematic (2 Of 3)

GM885124

Courtesy of GENERAL MOTORS CORP.

Fig 10: G203 Schematic (3 Of 3)

GM885126

Courtesy of GENERAL MOTORS CORP.

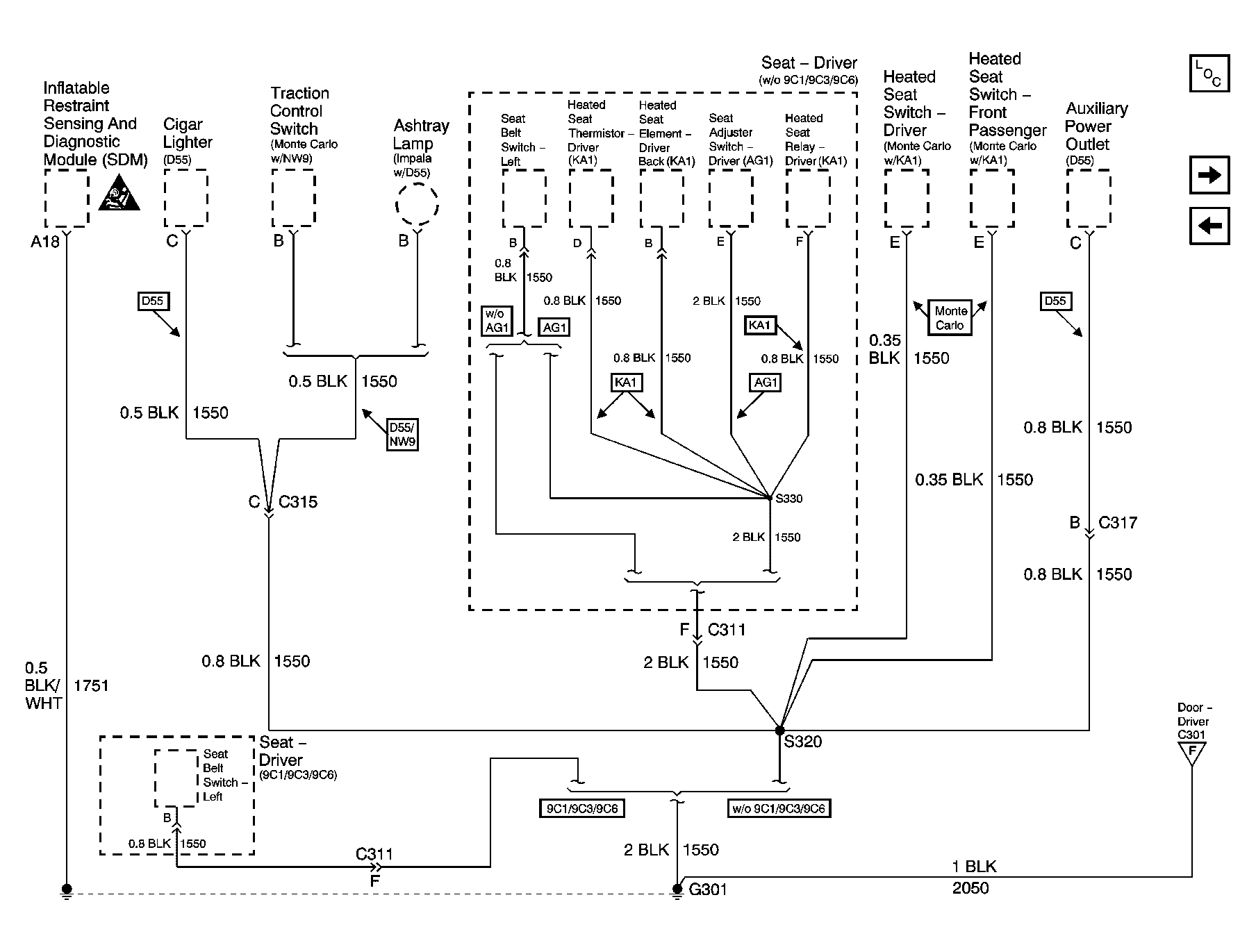

Fig 11: G301 Schematic (1 Of 2)

GM885127

Courtesy of GENERAL MOTORS CORP.

Fig 12: G301 Schematic (2 Of 2)

GM885128

Courtesy of GENERAL MOTORS CORP.

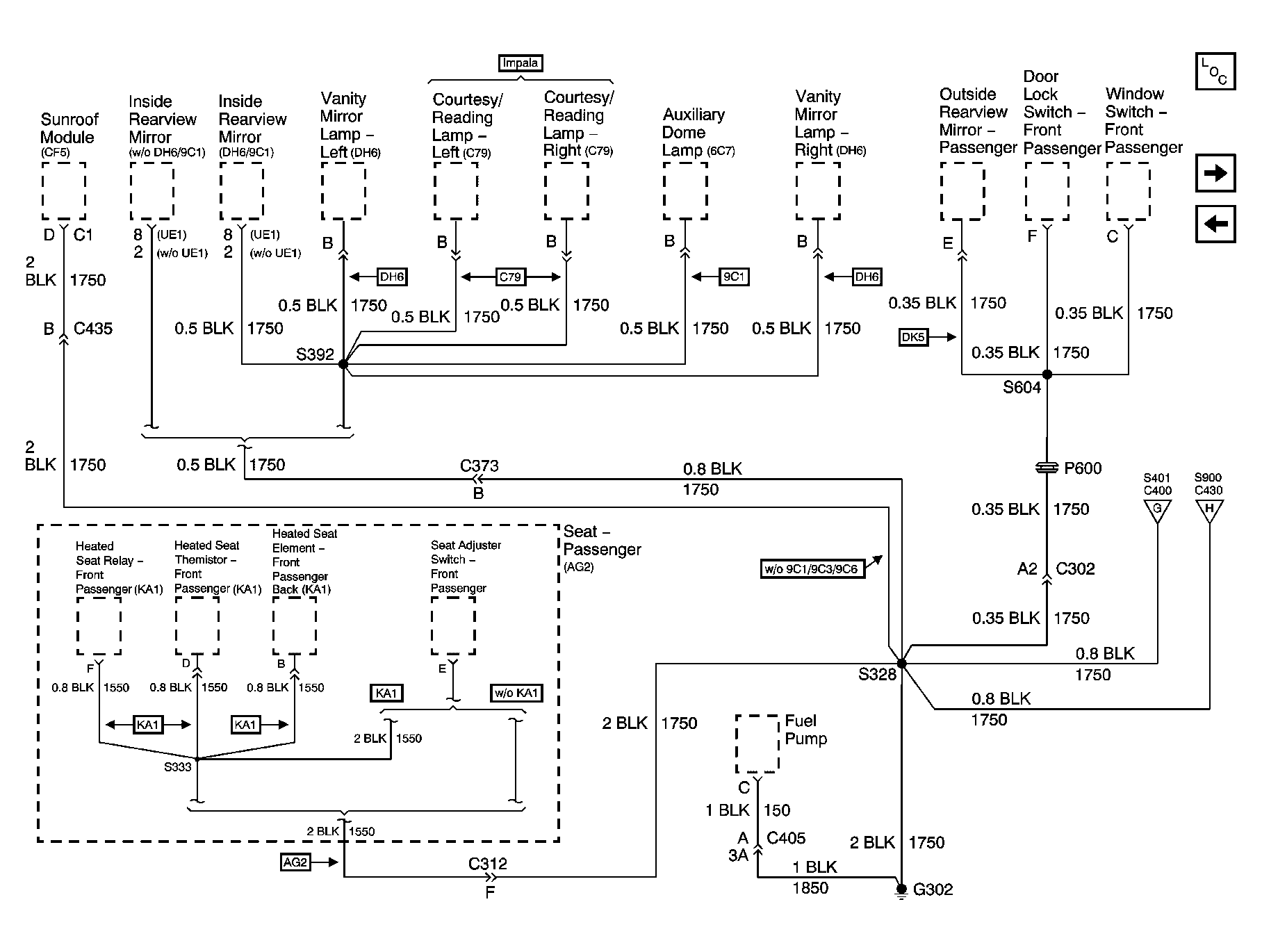

Fig 13: G302 Schematic (1 Of 2)

GM885130

Courtesy of GENERAL MOTORS CORP.

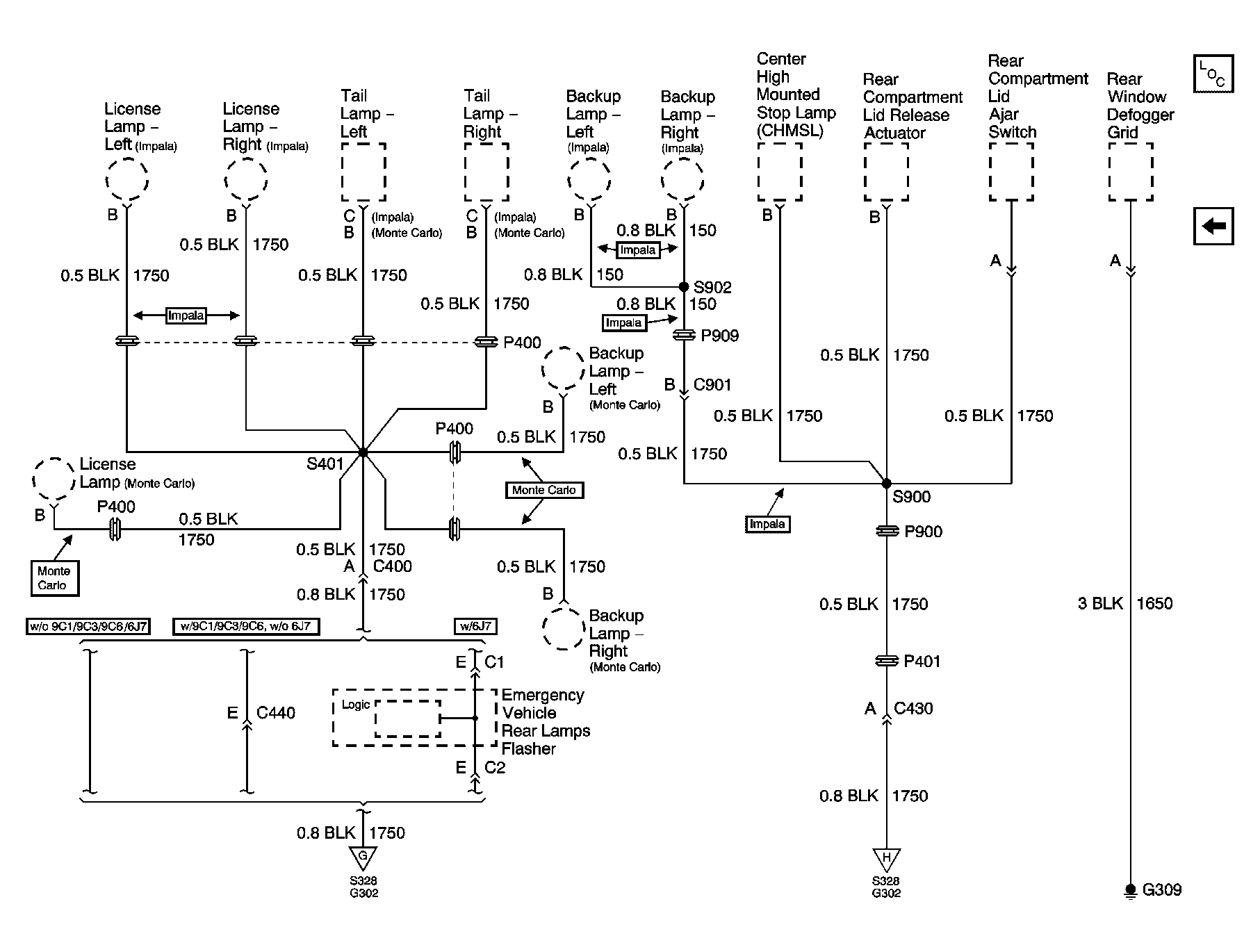

Fig 14: G302 (2 Of 2) & G309 Schematic

GM798539

Courtesy of GENERAL MOTORS CORP.
