Locking Differential Disassembled Views
Locking Differential Disassembled Views

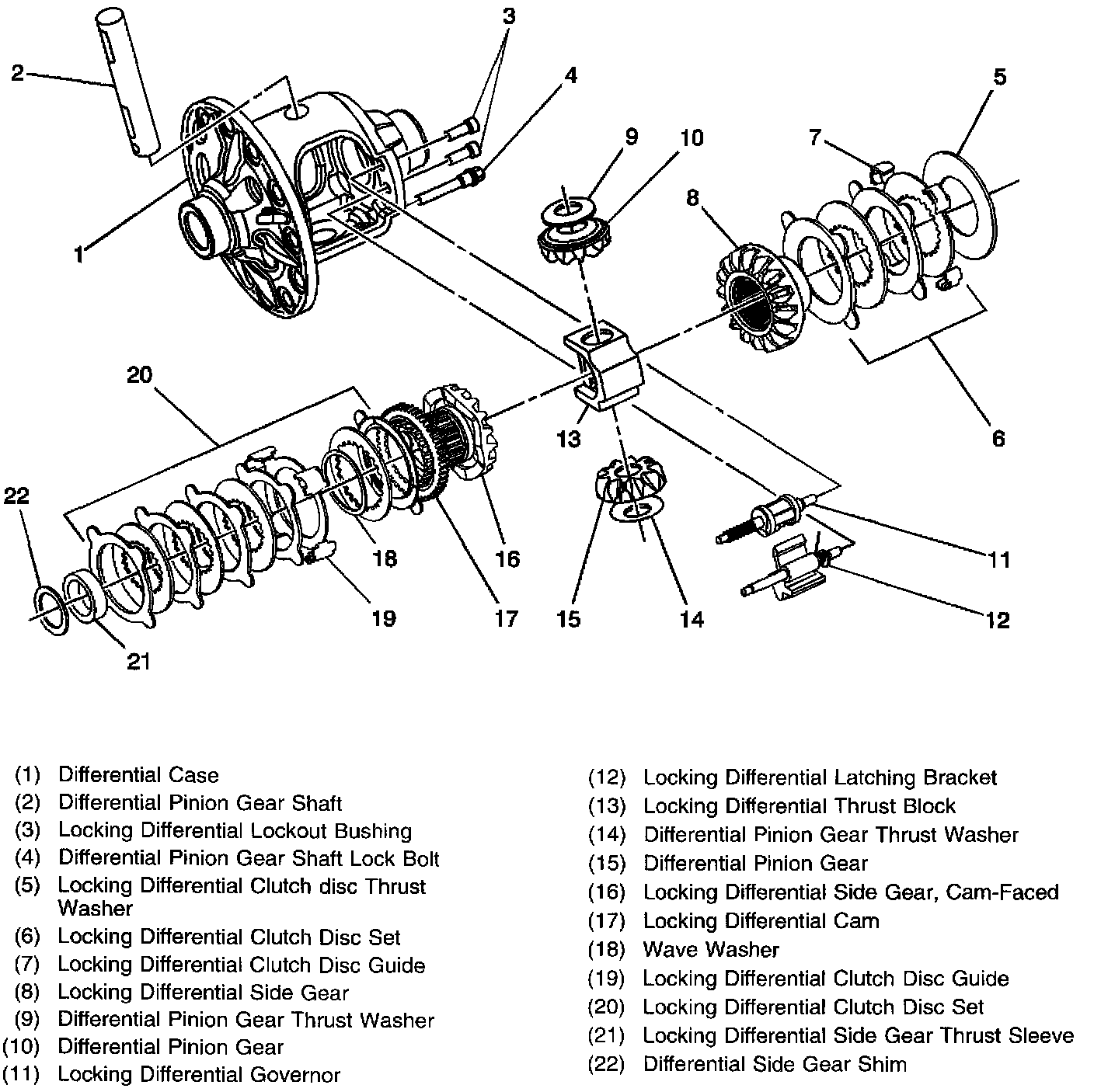

8.6 Locking Differential

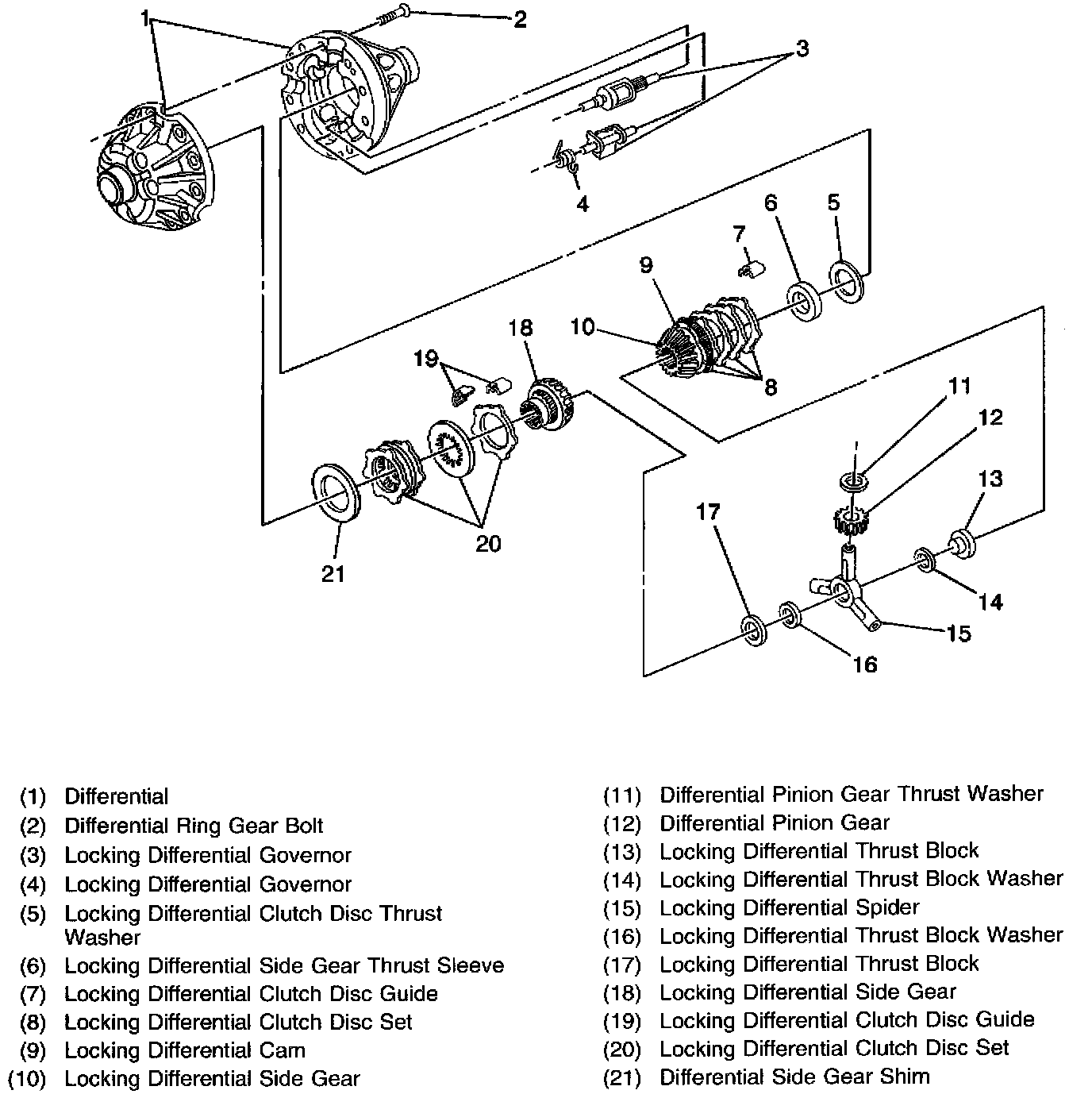

9.5 Locking Differential

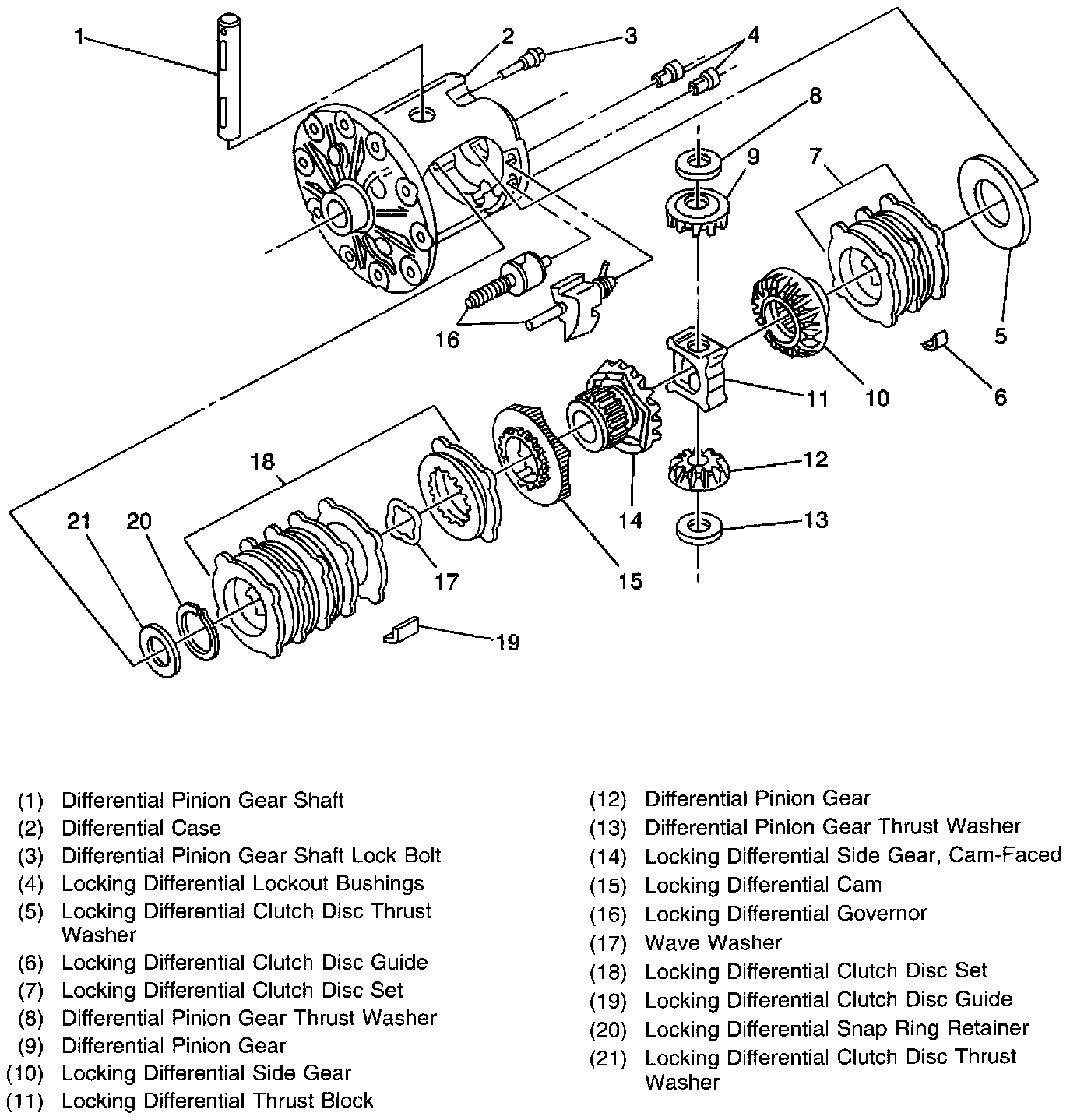

10.5 Locking Differential
