Oxygen Sensor: Locations

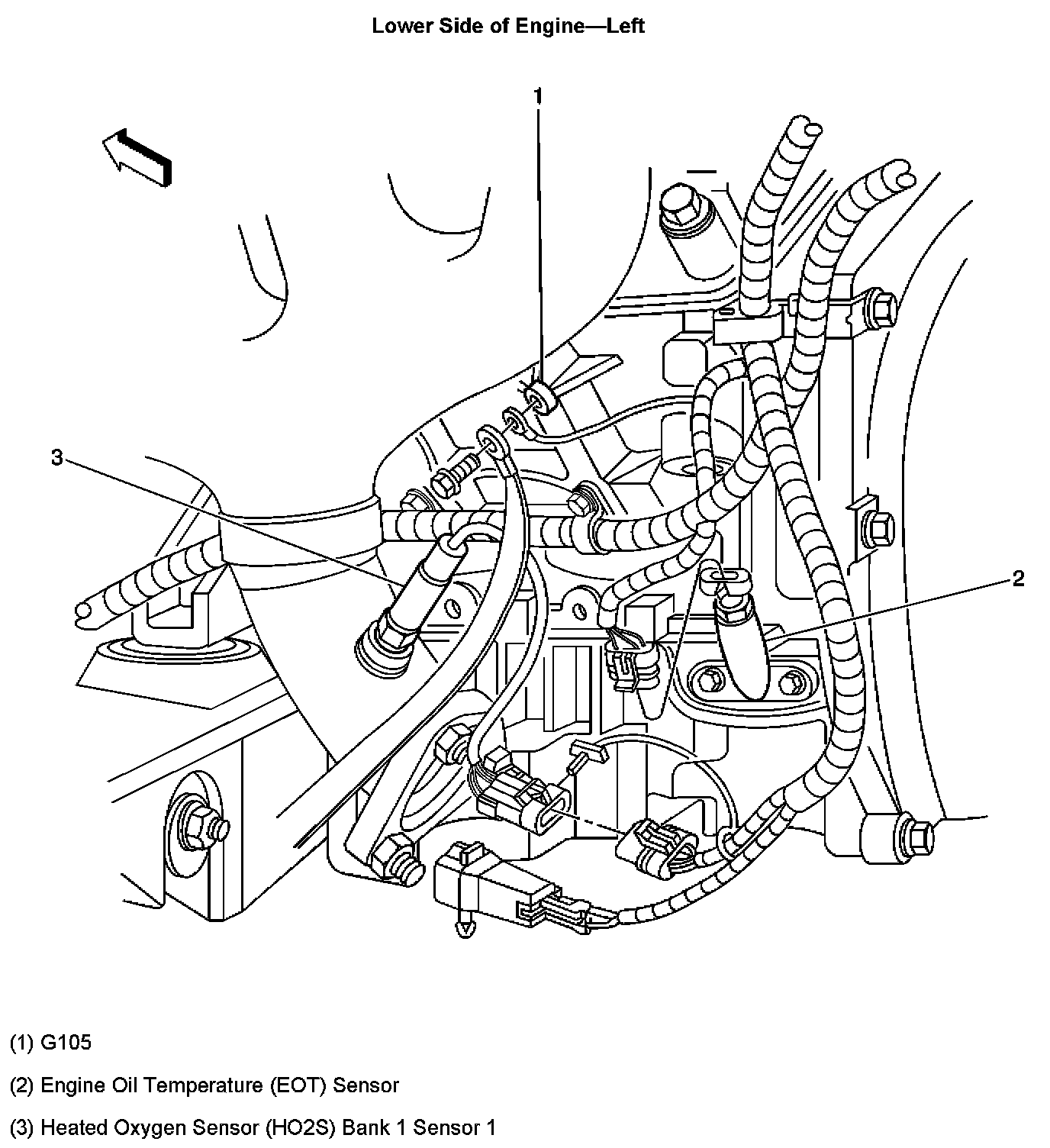

Lower Side Of Engine-Left:

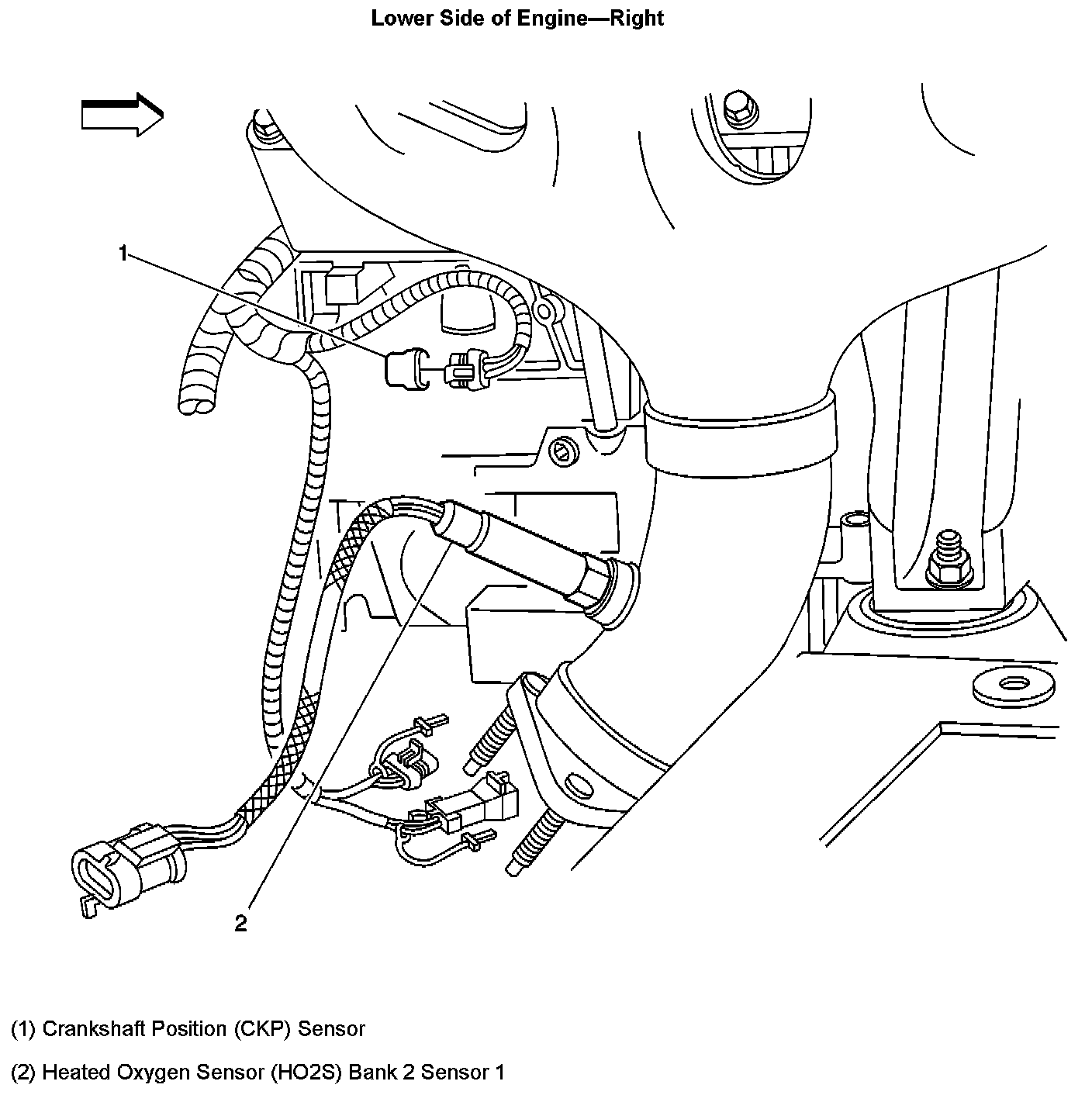

Lower Side Of Engine-Right:

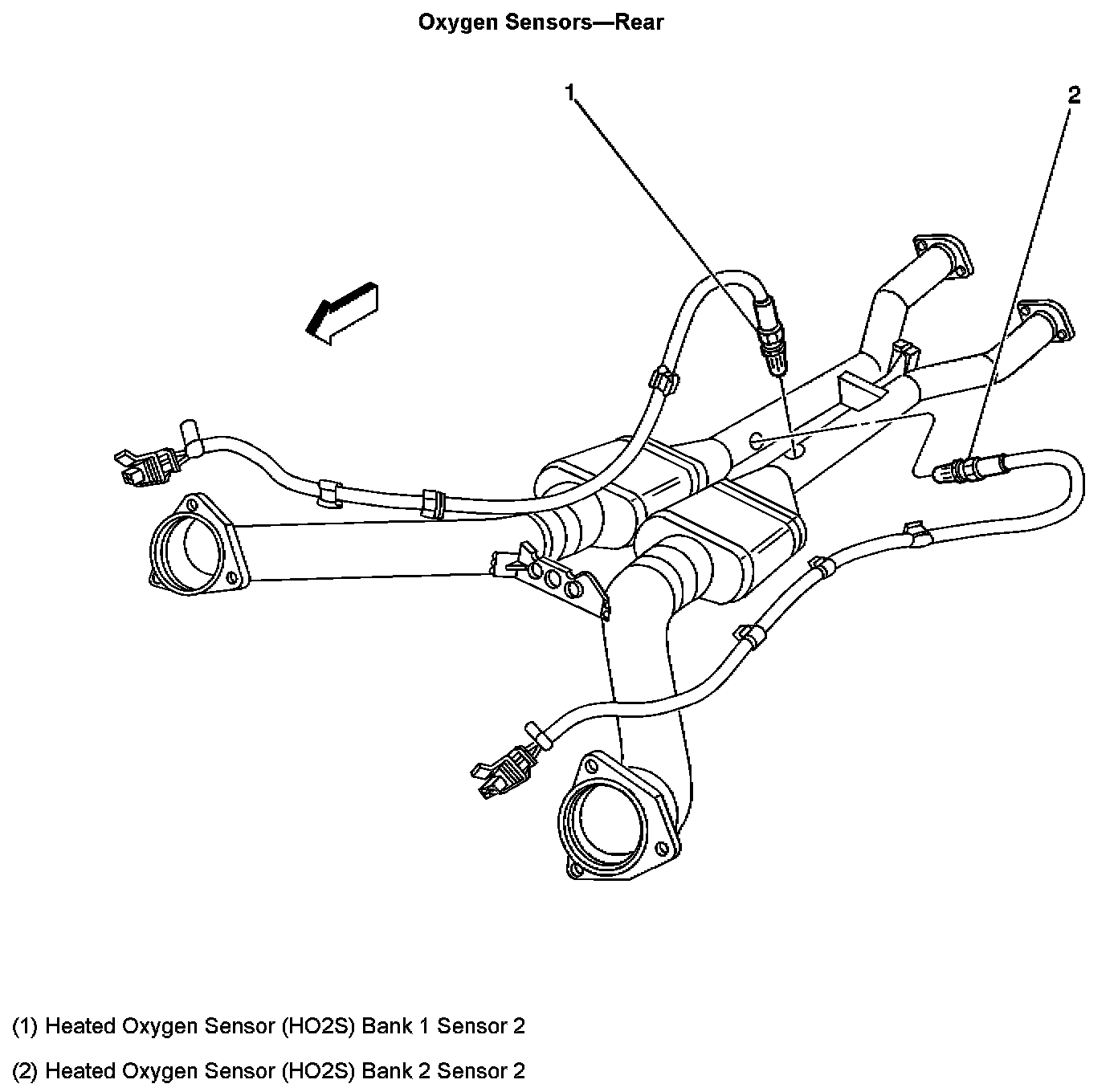

Oxygen Sensors-Rear:



Lower Side Of Engine - Left:
