Manual Transmission/Transaxle

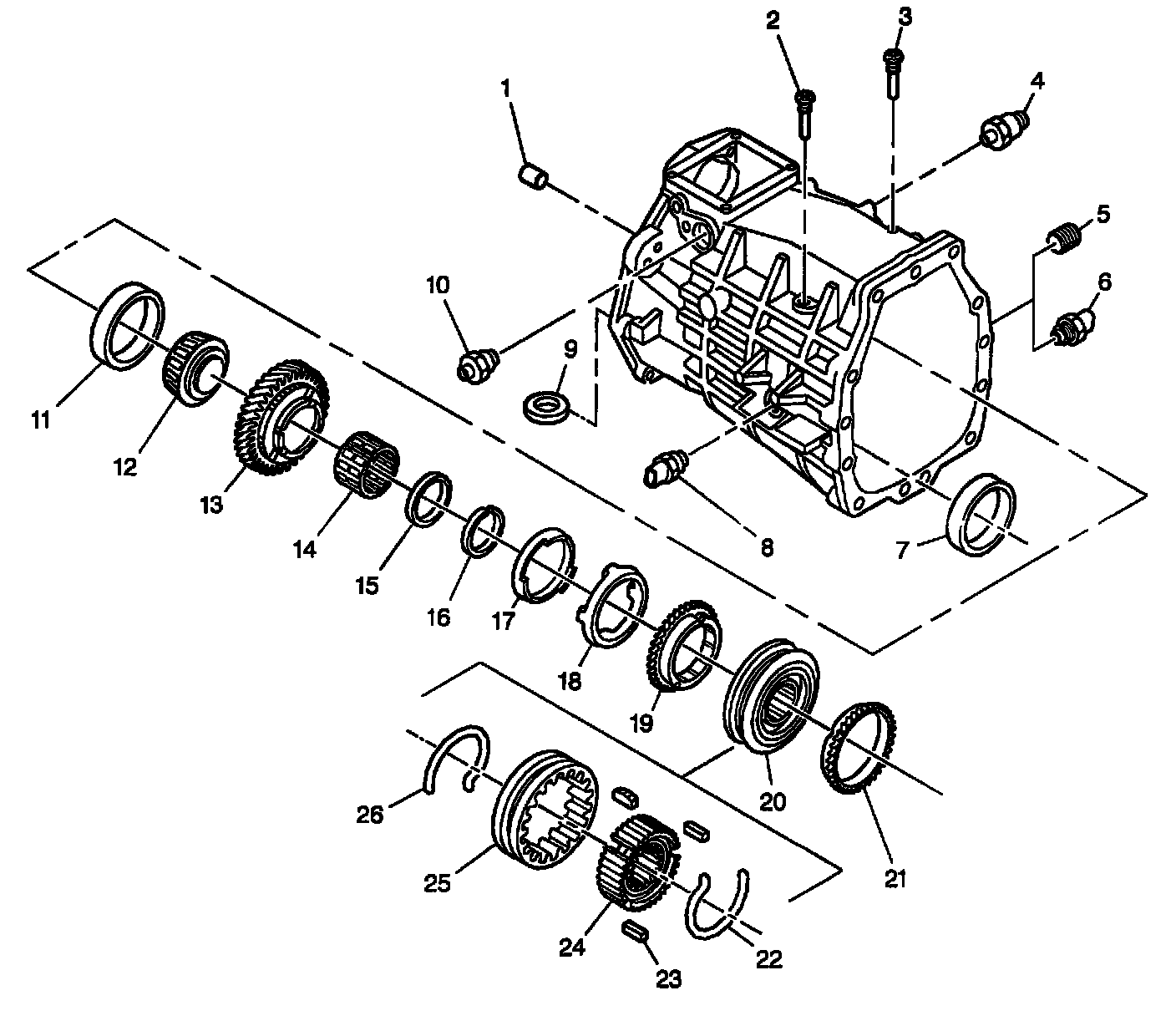

Transmission Case (Part 1)

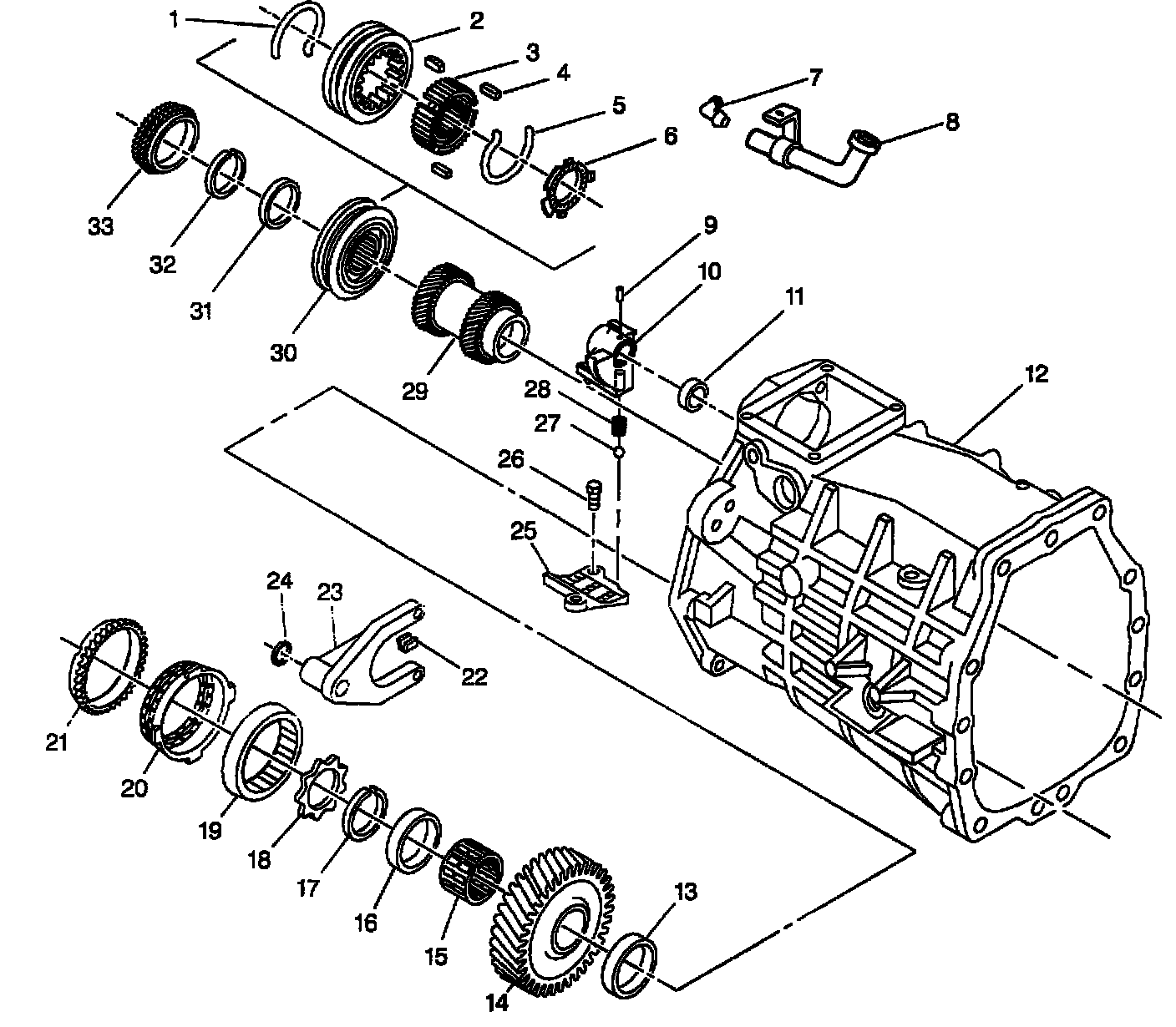

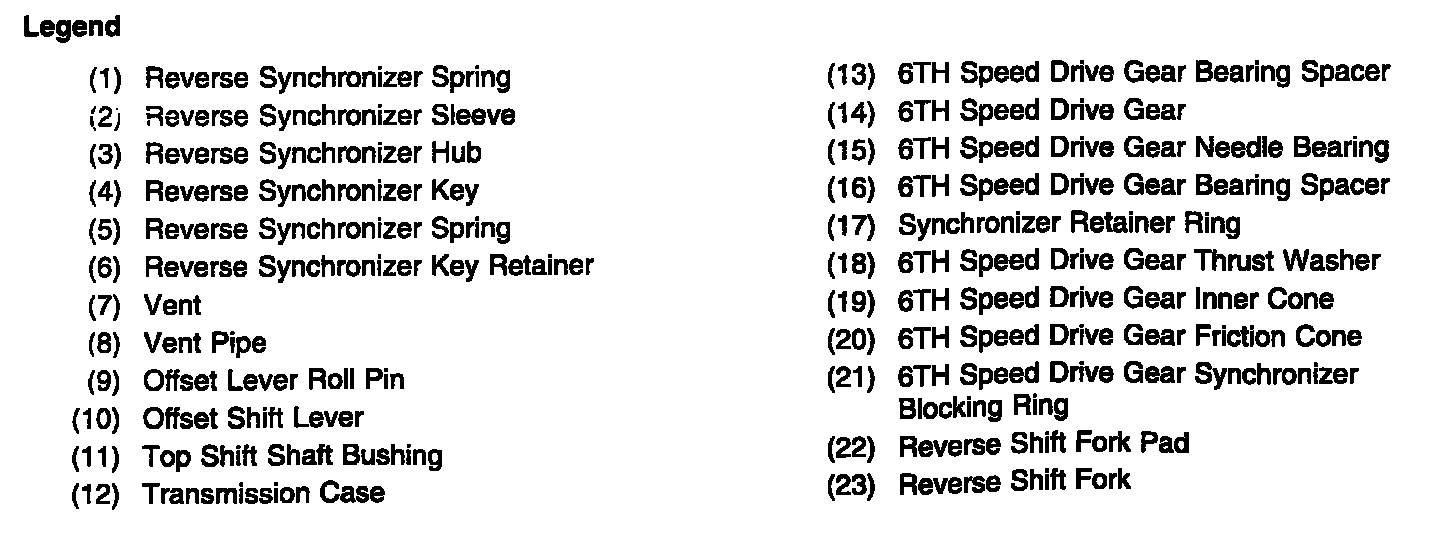

Transmission Case (Part 2)

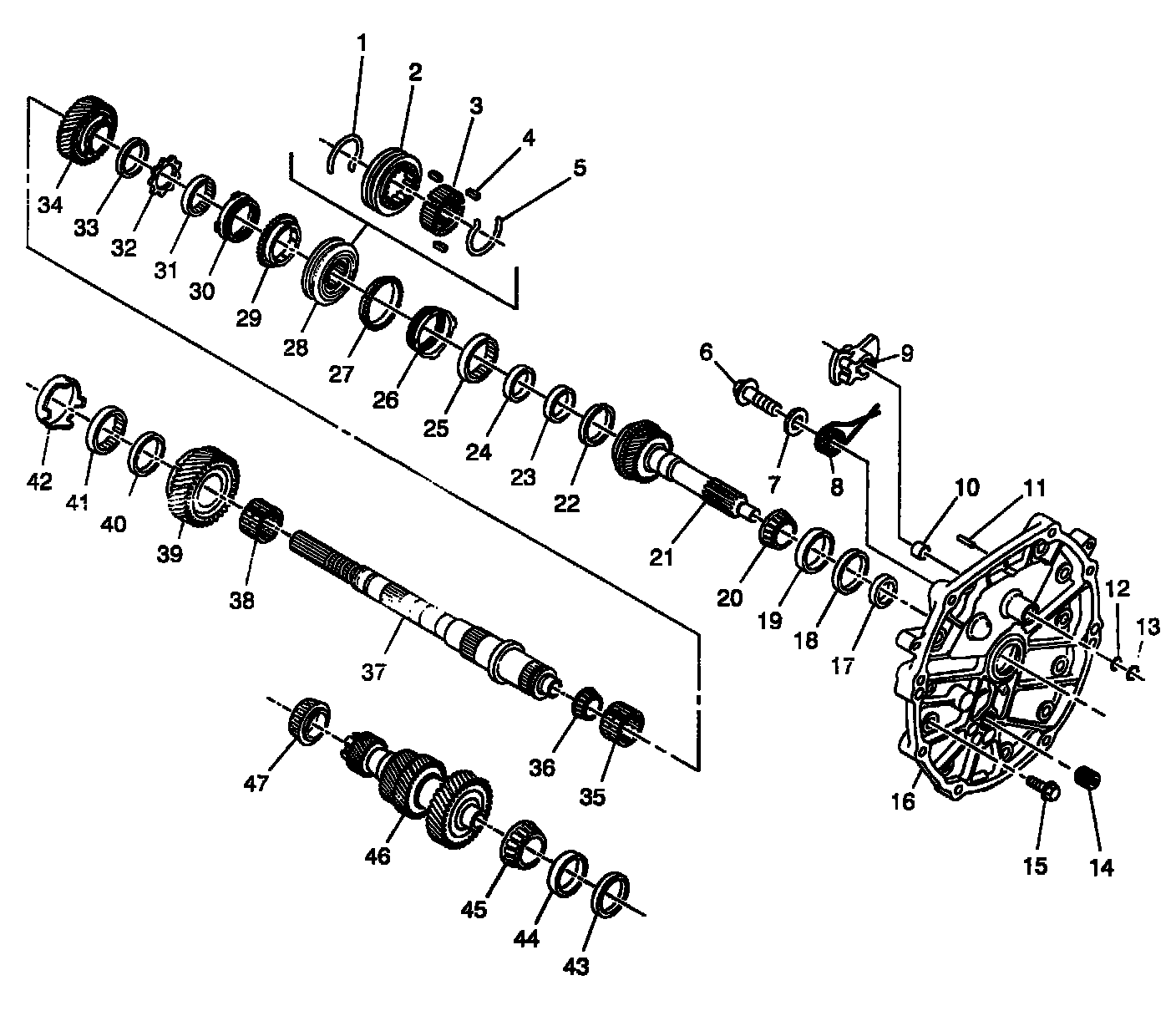

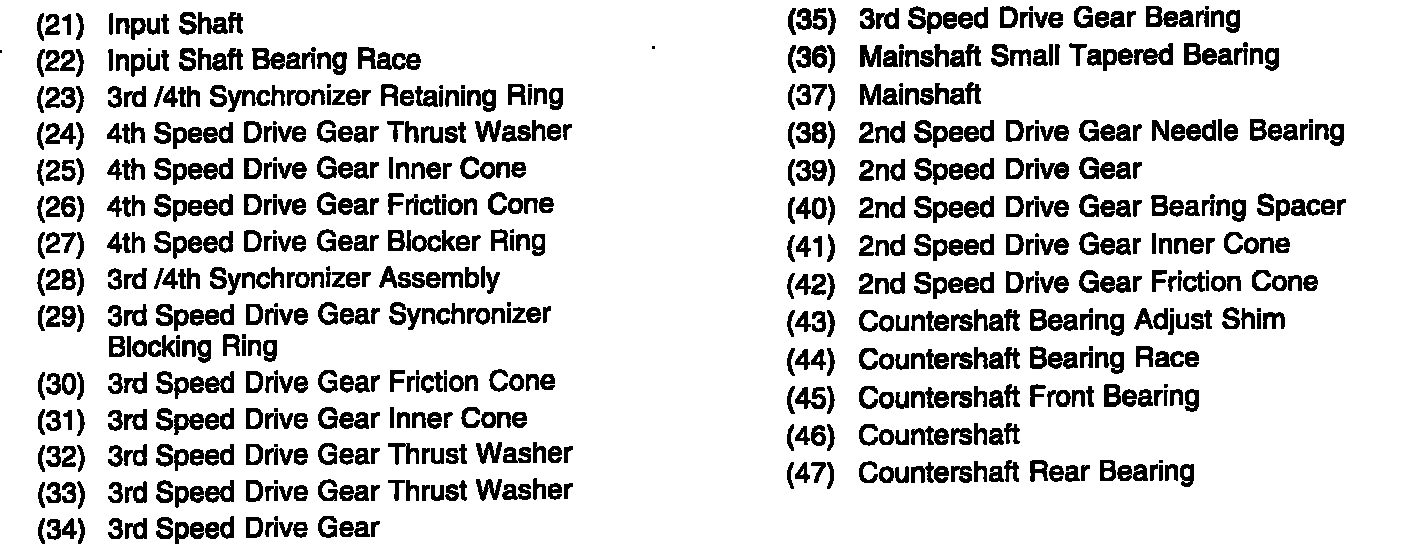

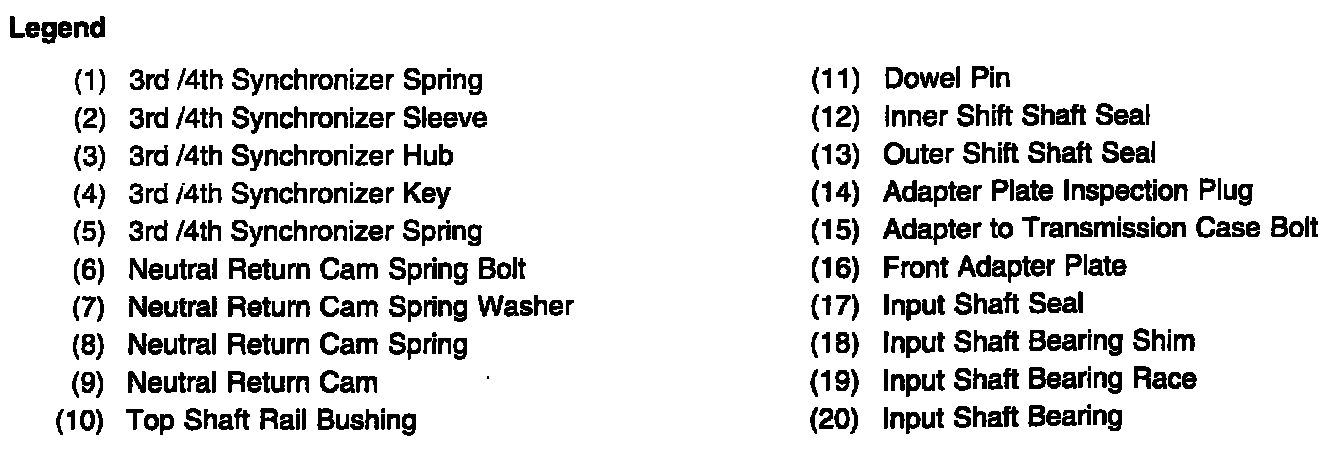

Adapter Plate and Gears

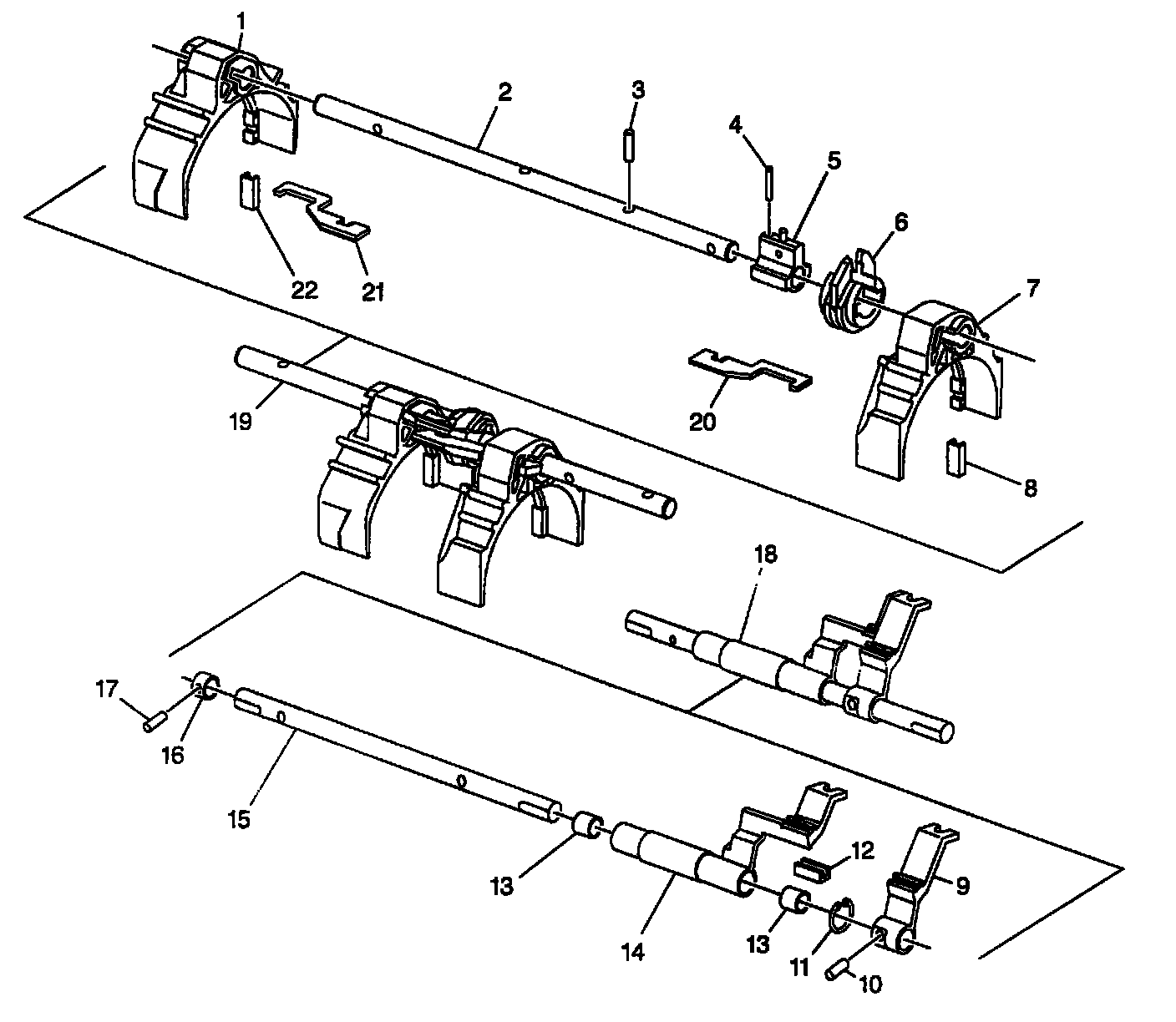

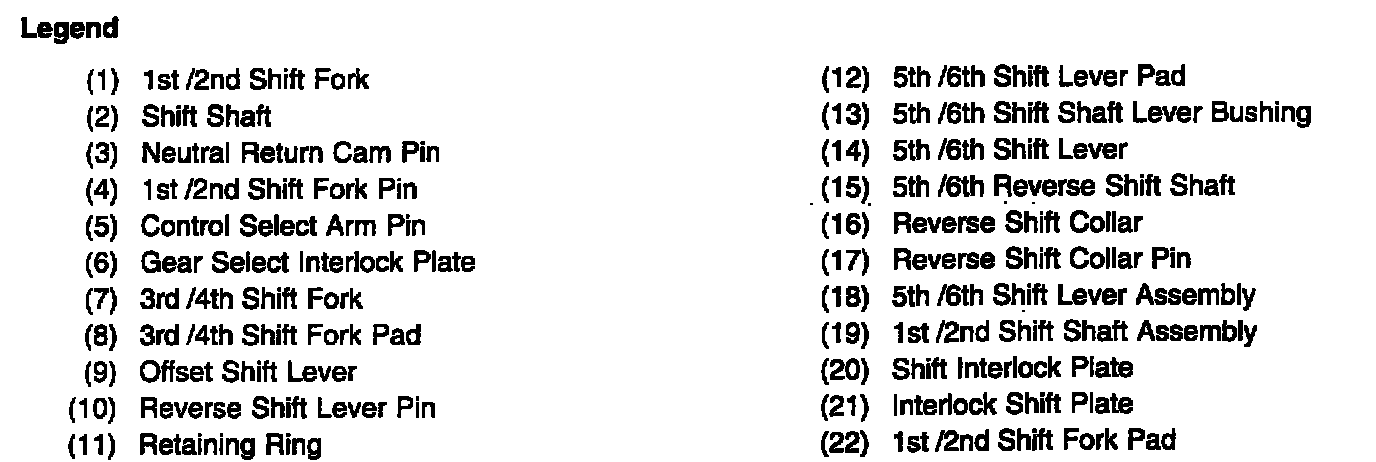

Shift Shafts
