Passenger Car Zoning

PASSENGER CAR ZONING

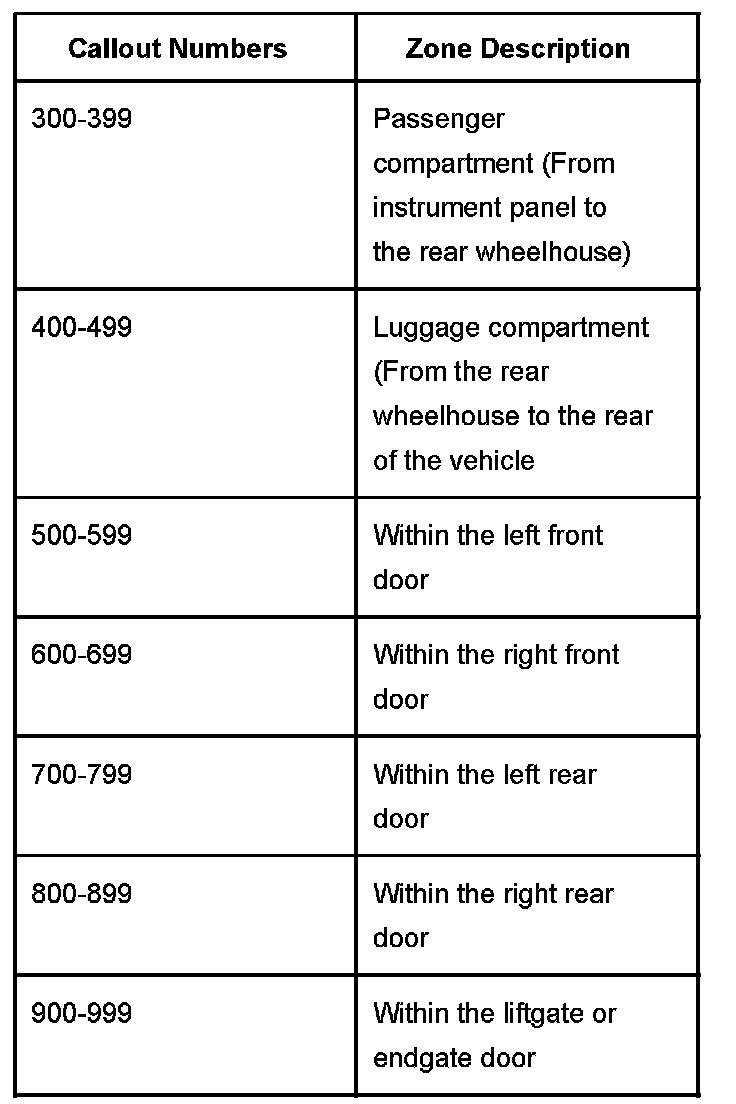

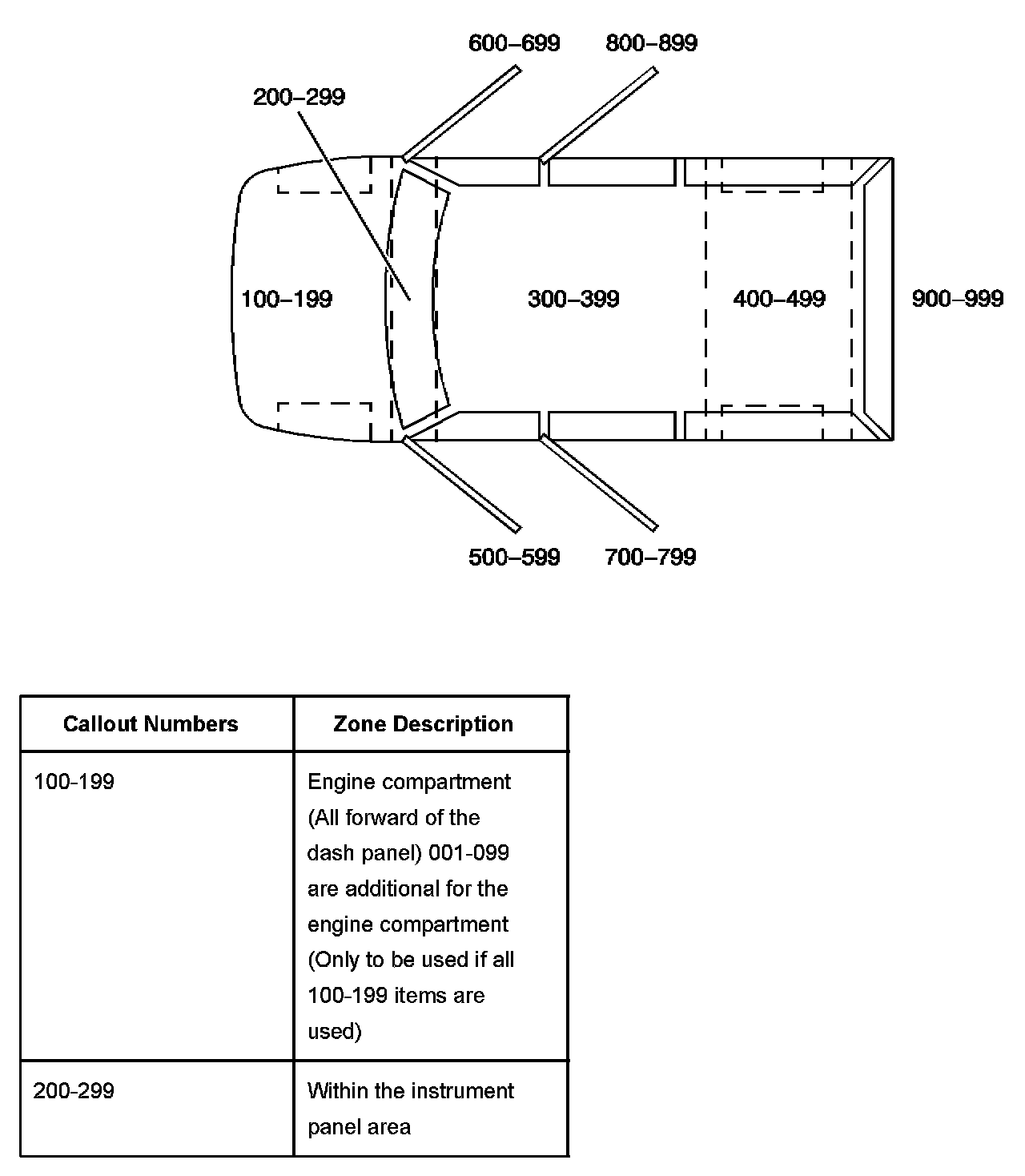

All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that corresponds to where they are located in the vehicle. The table explains the numbering system.
