Input Shaft

Tools Required

• J 22912-01 Split Plate. See Special Tools and Equipment .
• J 23907 Slide Hammer. See Special Tools and Equipment .
• J 39594 Bearing Race Remover. See Special Tools and Equipment .

Important:  Do not replace the tapered bearing or the bearing race unless inspection shows that the bearing or the race are damaged.

1. Remove the tapered bearing from the input shaft, using the J 22912-01 and a hydraulic press.

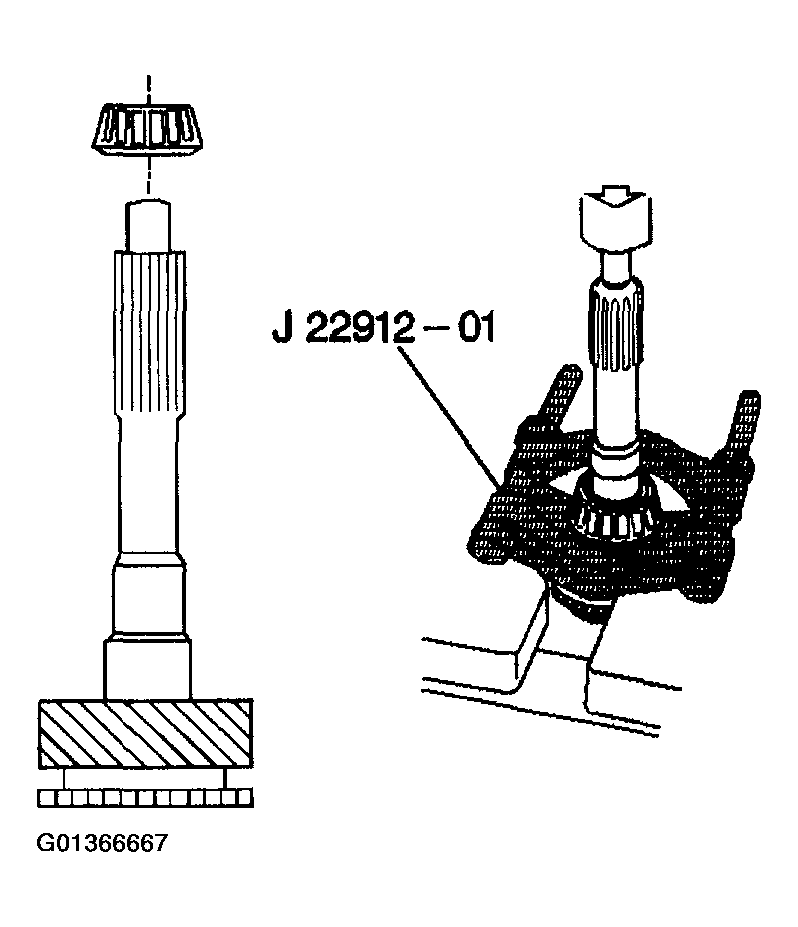

   Fig 1: Removing Tapered Bearing From Input Shaft

   Courtesy of GENERAL MOTORS CORP.
2. Remove the bearing race from the input shaft, using the J 23907 and the J 39594.

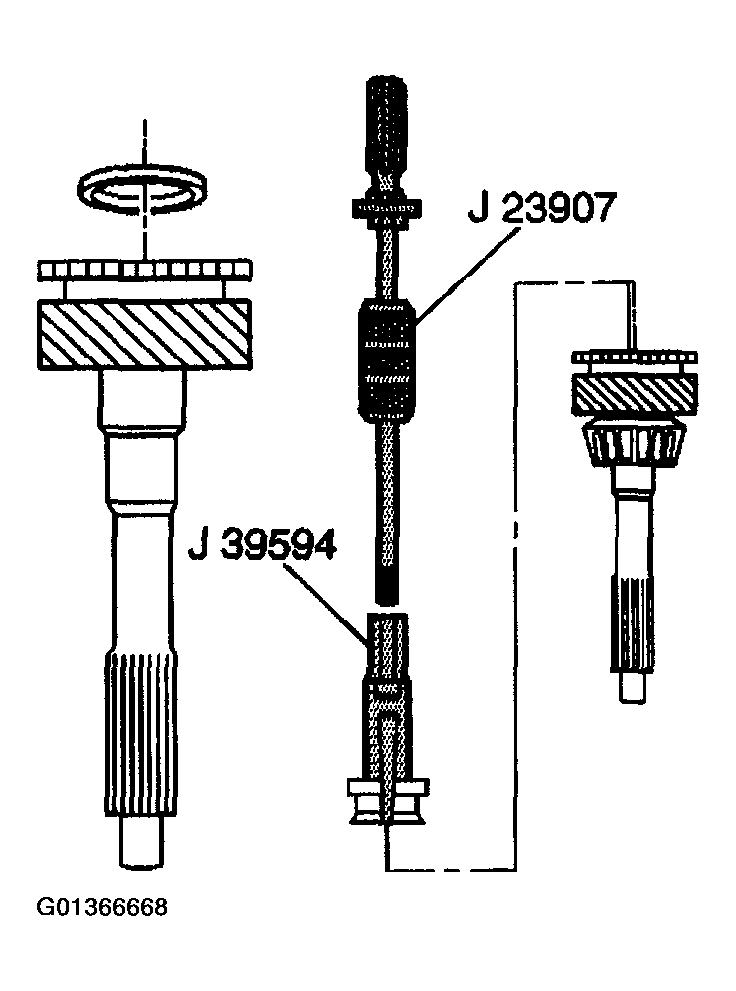

   Fig 2: Removing Bearing Race From Input Shaft

   Courtesy of GENERAL MOTORS CORP.
