Exploded View Of Transmission Case Components

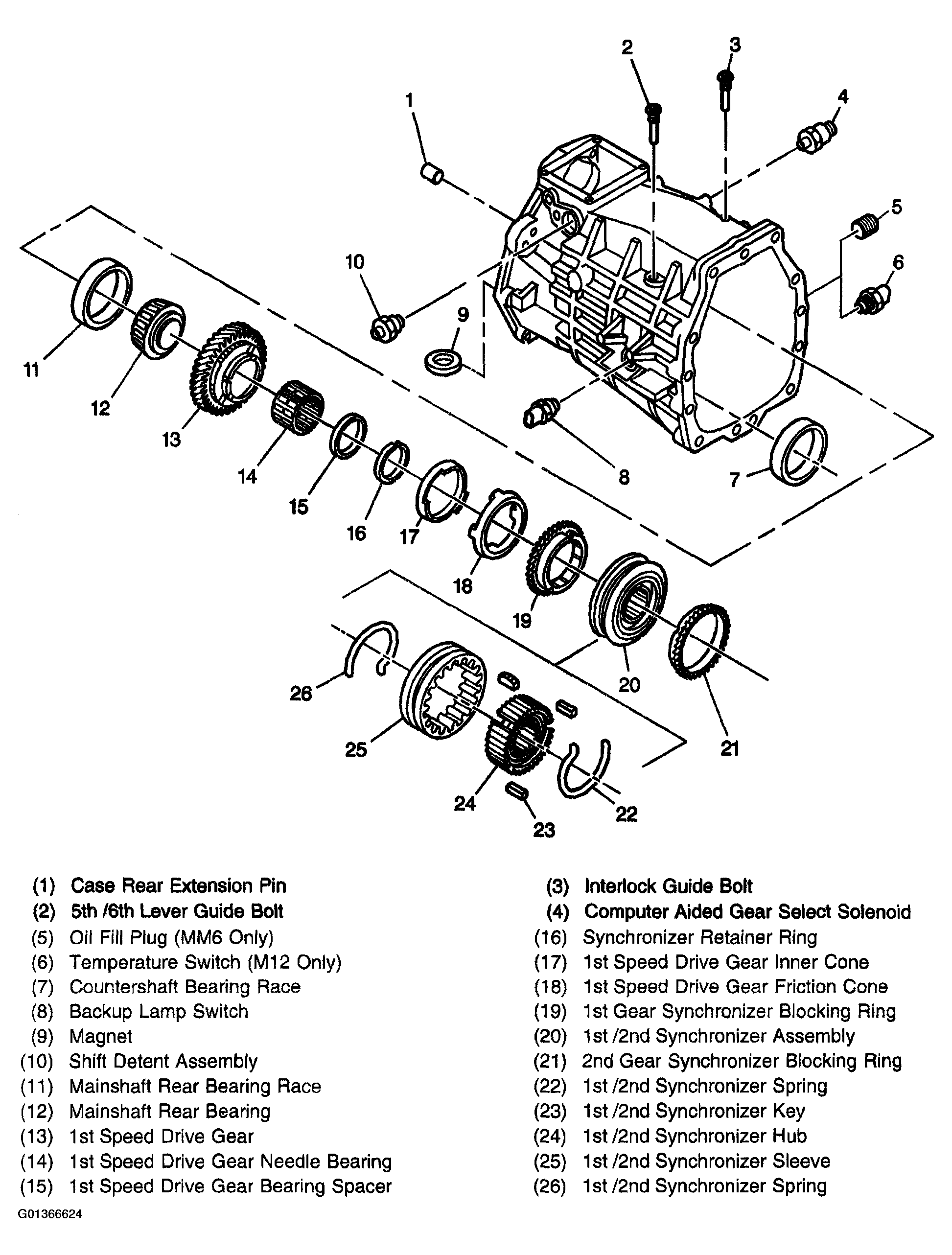

Fig 1: Exploded View Of Transmission Case Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

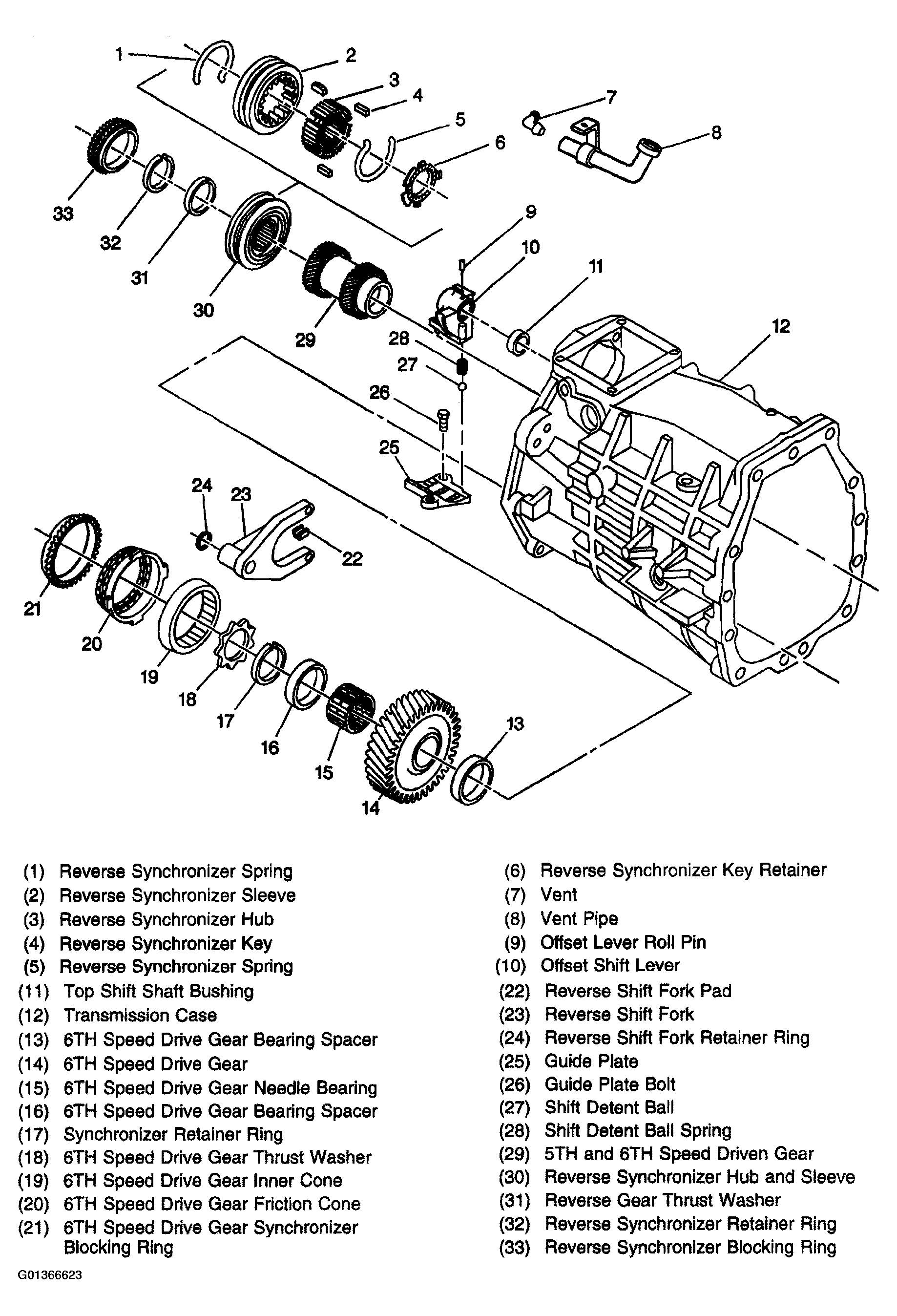

Fig 2: Exploded View Of Transmission Case Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
