Exploded View Of Extension Housing Components

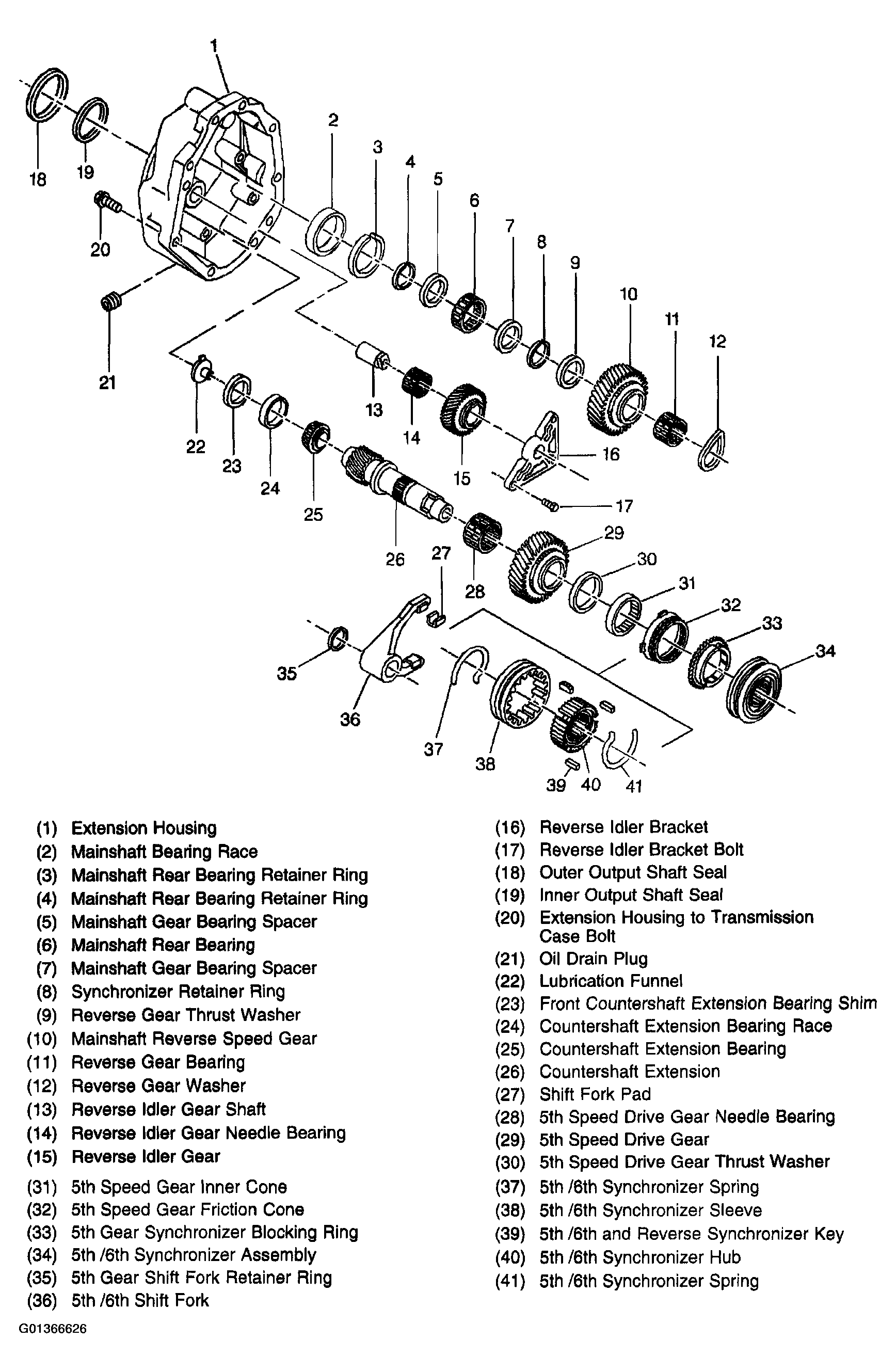

Fig 1: Exploded View Of Extension Housing Components
G01366626Courtesy of GENERAL MOTORS CORP.
