Power Steering Gear Disassembled View (Magnasteer)

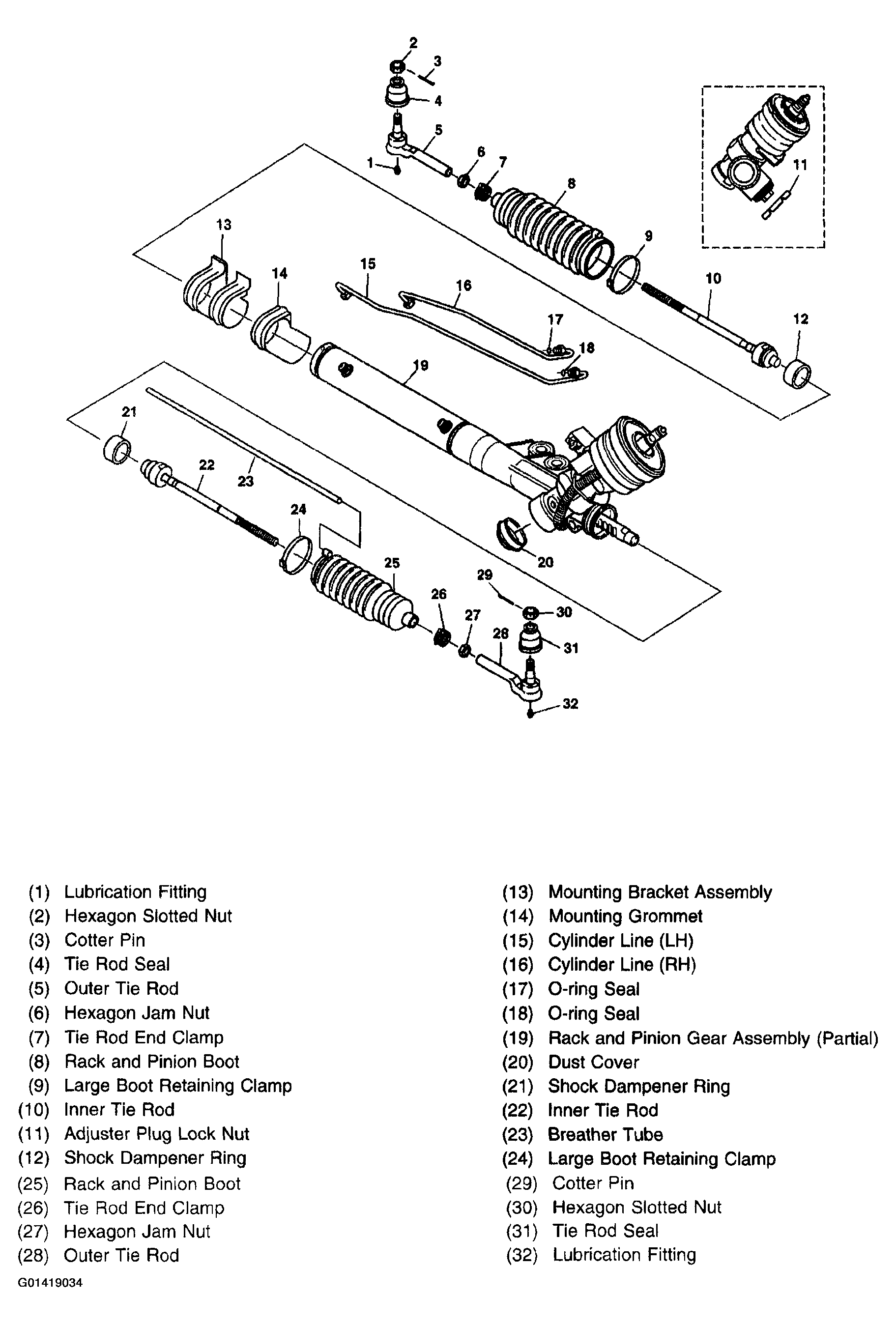

Fig 1: Exploded View Of Power Steering Gear Components
G01419034Courtesy of GENERAL MOTORS CORP.
