Steering Column Disassembled View (Telescoping)

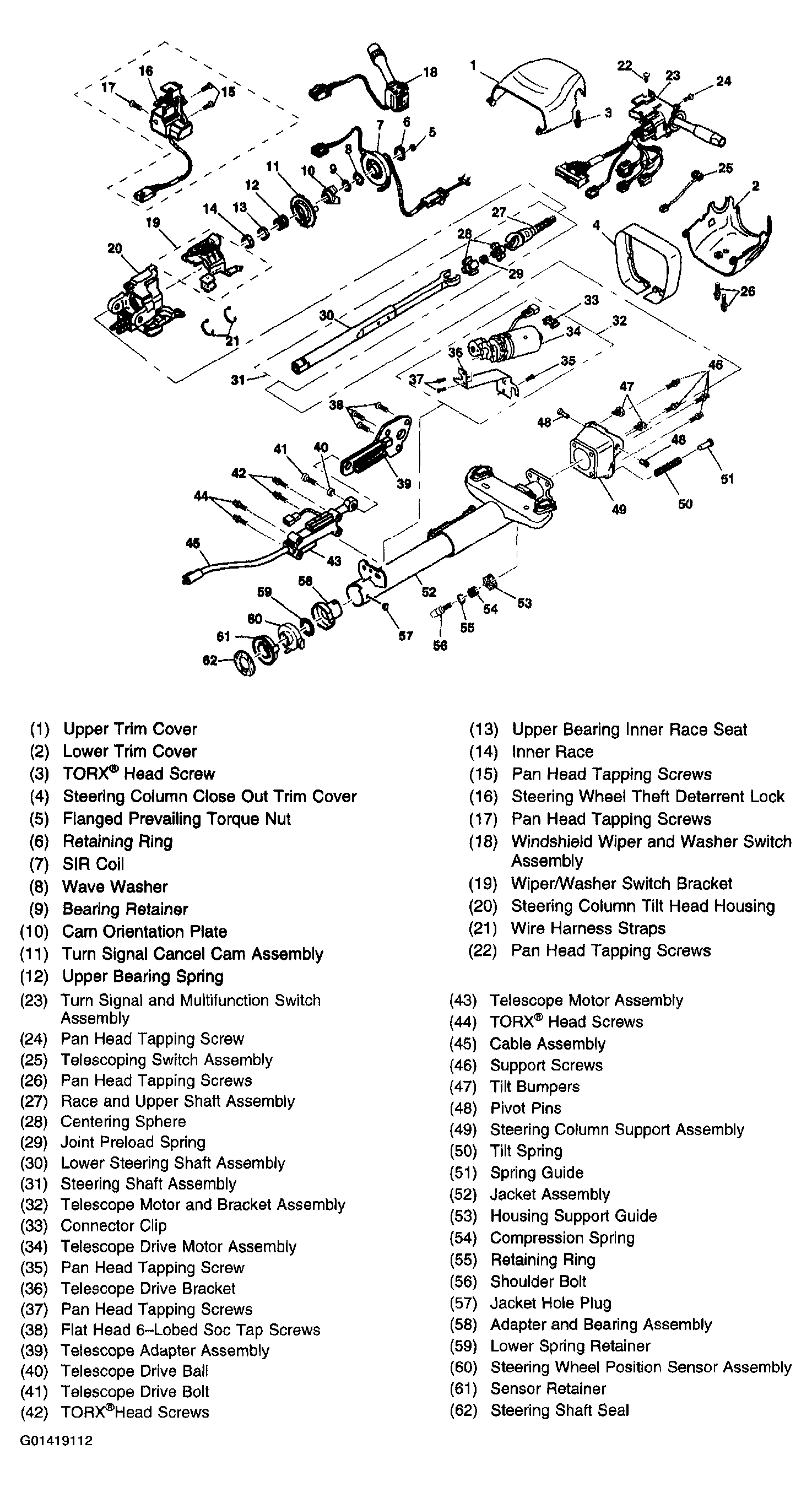

Fig 1: Exploded View Of Y-Car Telescoping Components
G01419112Courtesy of GENERAL MOTORS CORP.
