Installation Procedure

  1. Lubricate the inner tie rod threads with a suitable chassis lubricant before installing the outer tie rod.
  2. Install the inner tie rod to the vehicle.

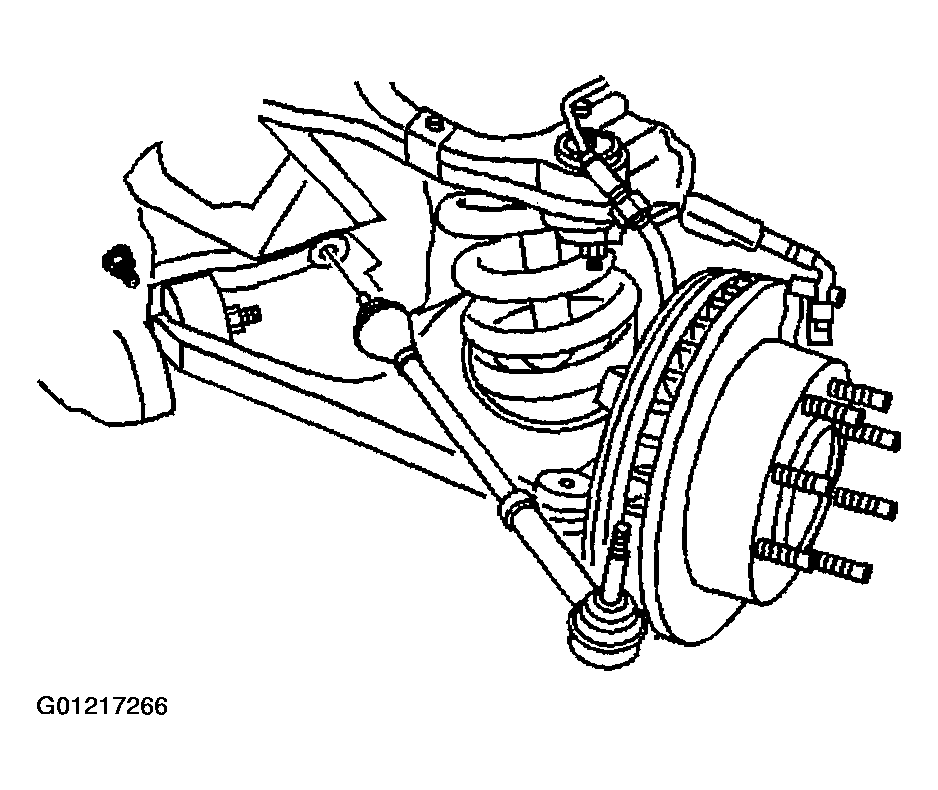

    Fig 1: Installing Inner Tie Rod To Vehicle
    G01217266Courtesy of GENERAL MOTORS CORP.
  3. Install the inner tie rod to relay rod retaining nut.

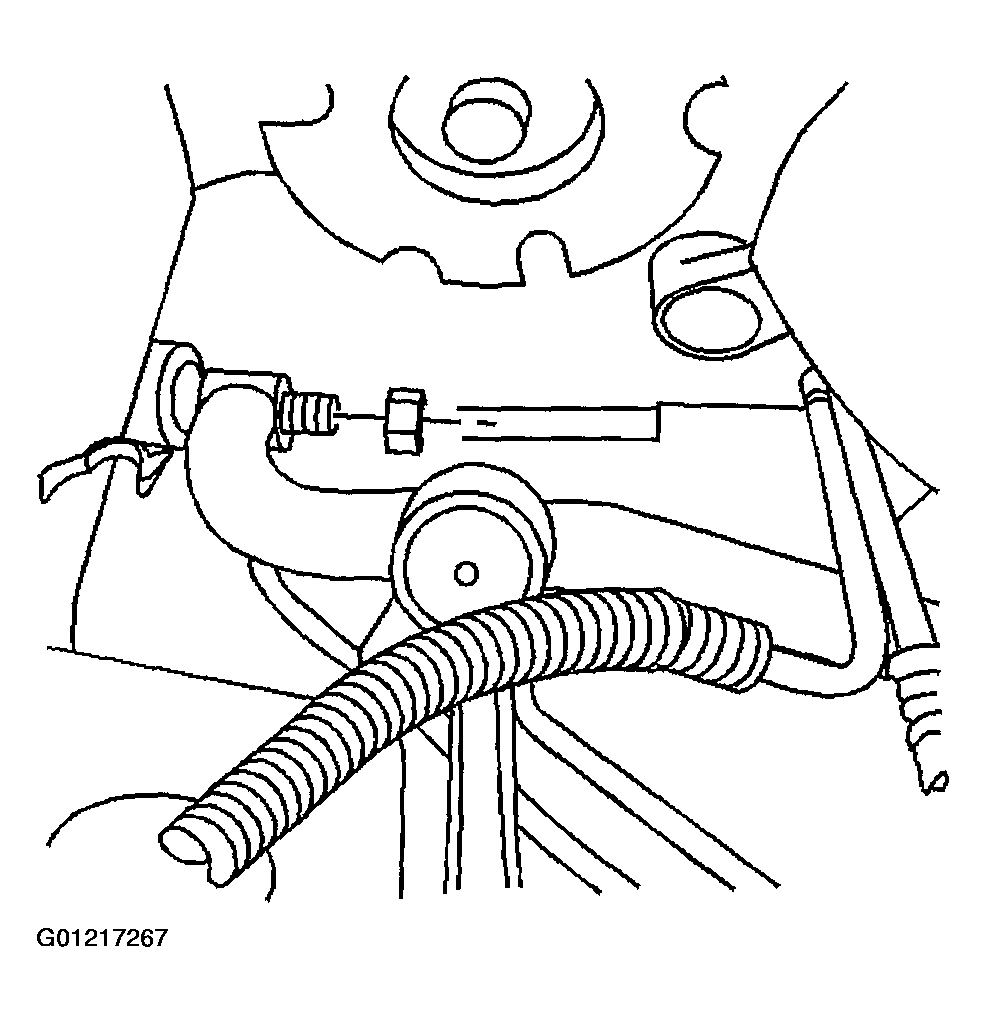

    Fig 2: Installing Inner Tie Rod To Relay Rod Retaining Nut
    G01217267Courtesy of GENERAL MOTORS CORP.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  4. Tighten the inner tie rod to relay rod retaining nut using J-34028  .

    Tighten

    Tighten the nut to 112 N.m (83 lb ft).

  5. Install the outer tie rod. Refer to Tie Rod Replacement - Outer .
  6. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  7. Lower the vehicle.
  8. Adjust the front toe. Refer to Measuring Wheel Alignment in SPECIFICATIONS .
    Fig 3: Tightening Inner Tie Rod To Relay Rod Retaining Nut Using J-34028
    G01217268Courtesy of GENERAL MOTORS CORP.
