Power Steering Gear Disassembled View (700 Gear)

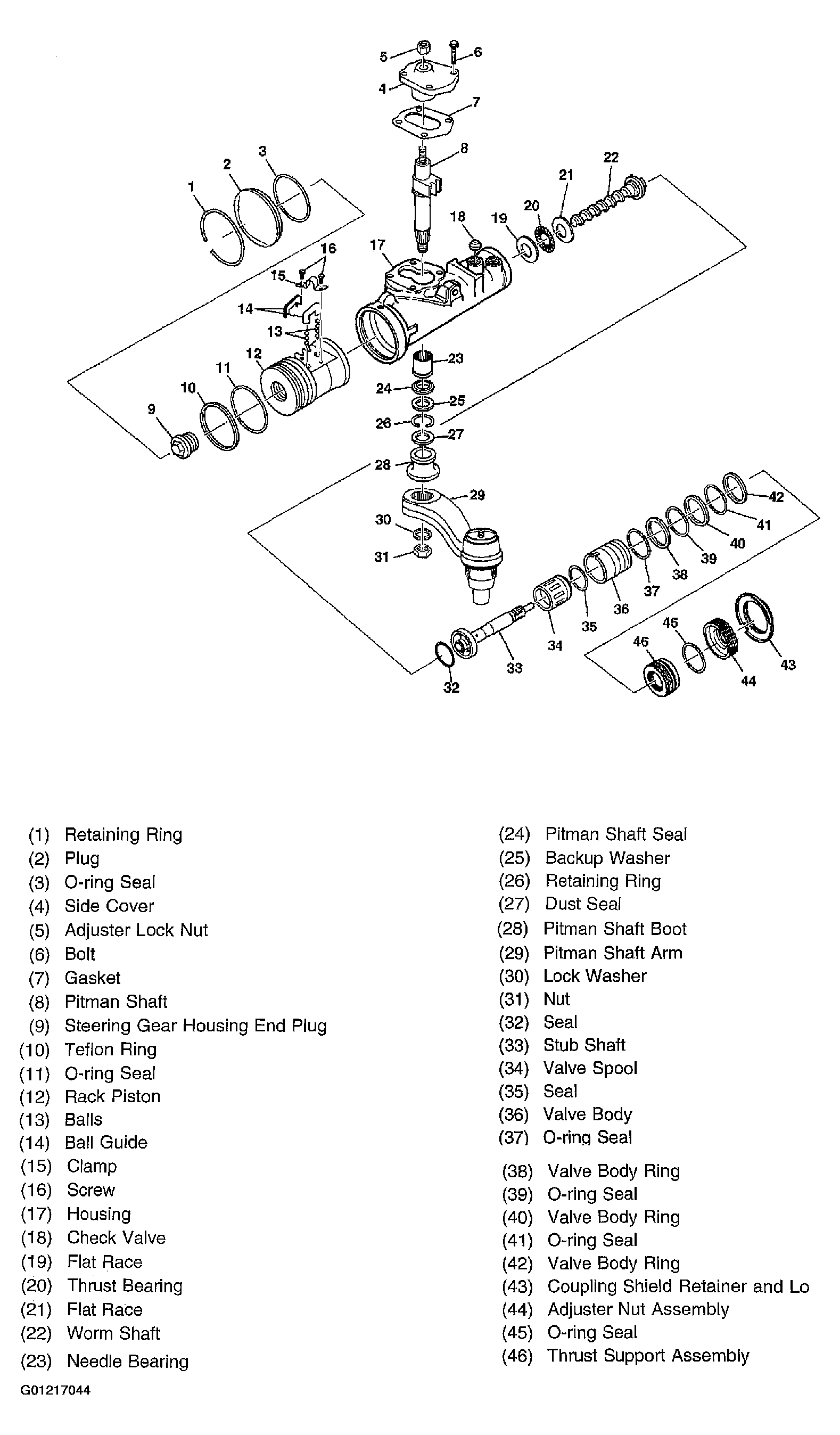

Fig 1: Power Steering Gear (700 Gear)
Courtesy of GENERAL MOTORS CORP.
