HVAC Control Assembly - C2 Connector End View

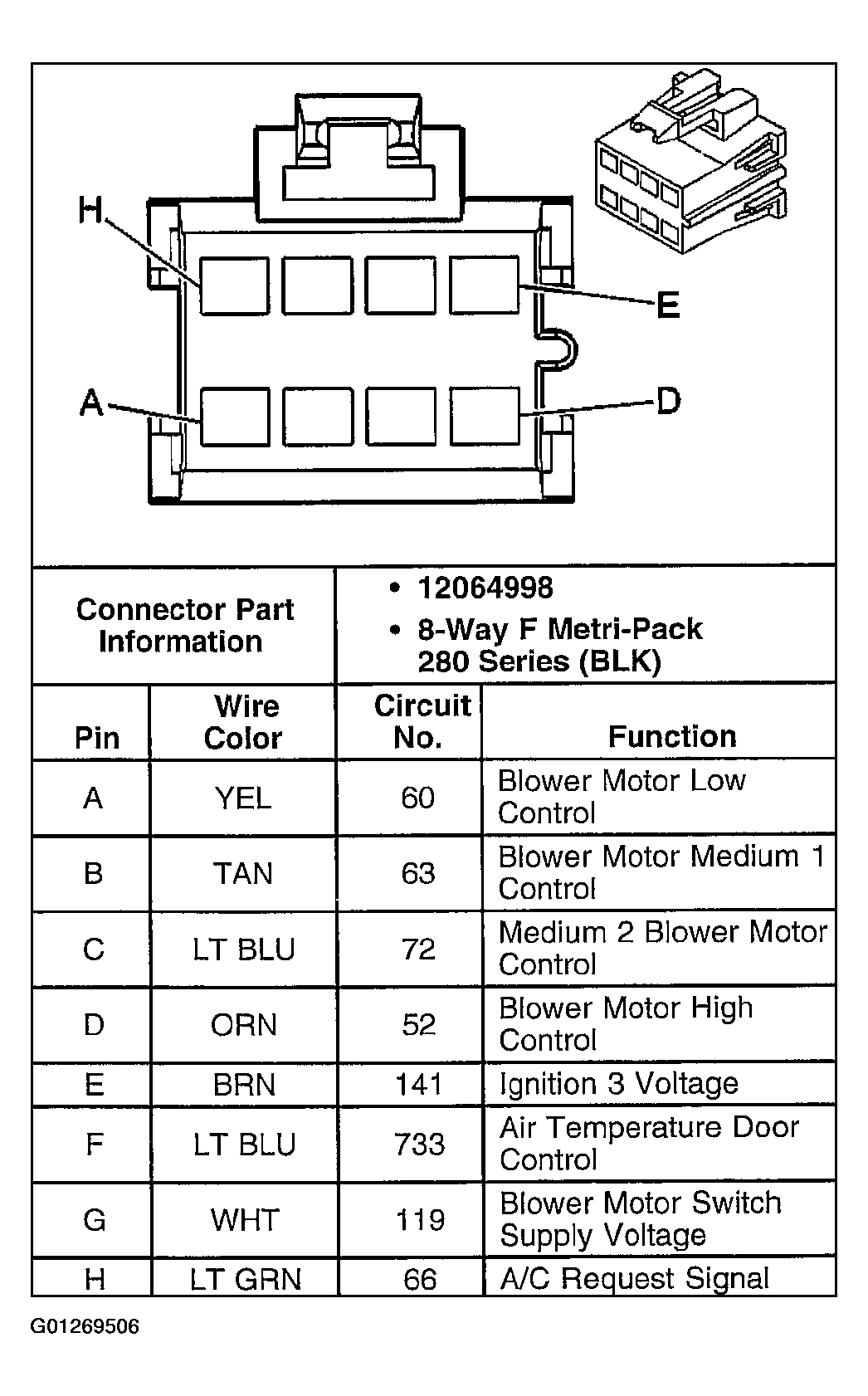

Fig 1: HVAC Control Assembly - C2 Connector End View
G01269506Courtesy of GENERAL MOTORS CORP.
