Section 16 (Engine Controls Self-Diagnostics - 4.3L)
>>
System Tests
>>
Malfunction Indicator Light Inoperative
>>
Diagnostic Procedure
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Procedure
WARNING:
This page is about a different variant/trim than selected.

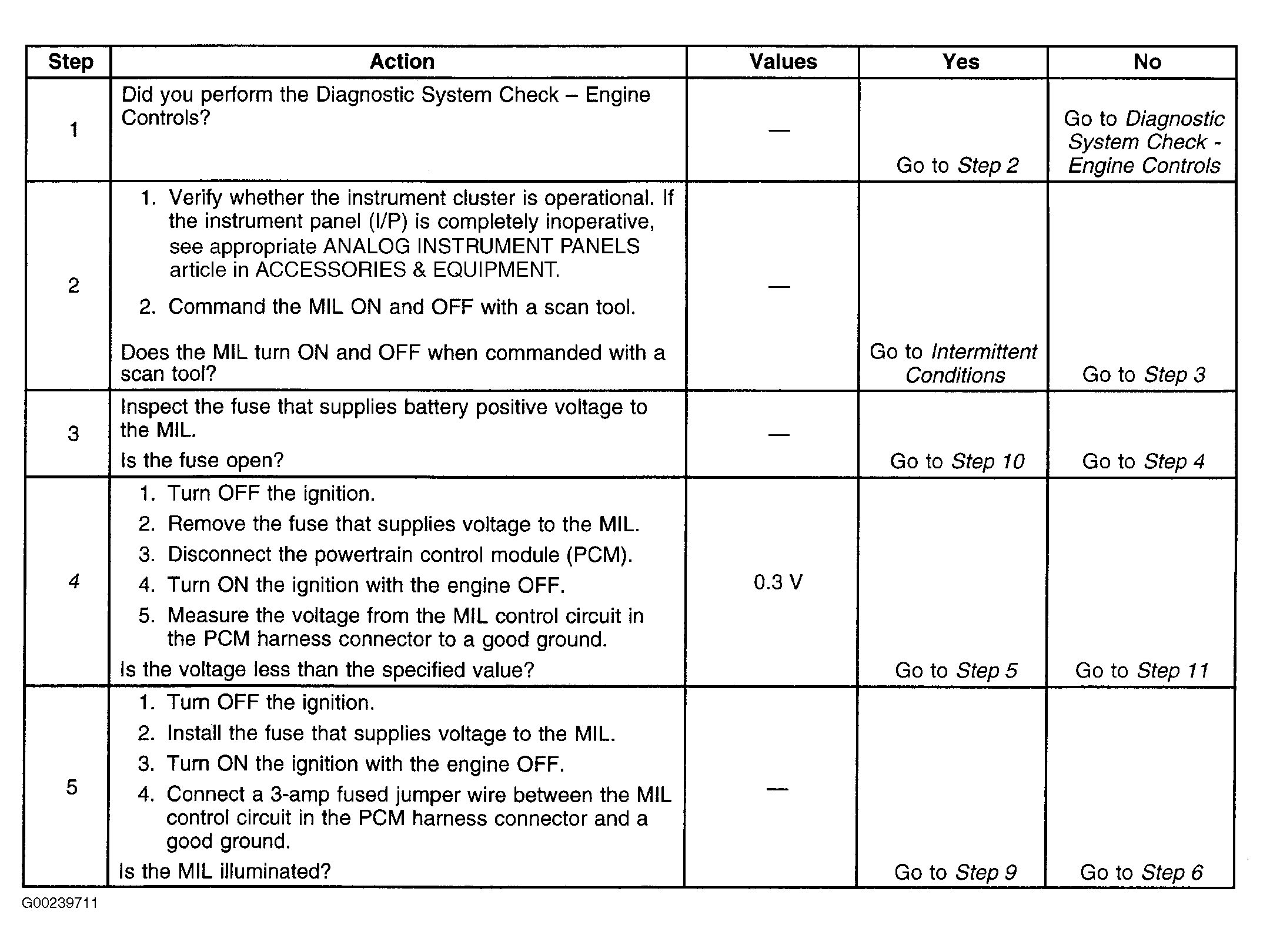

Fig 1: Malfunction Indicator Light (MIL) Inoperative (Steps 1-5)
Courtesy of GENERAL MOTORS CORP.

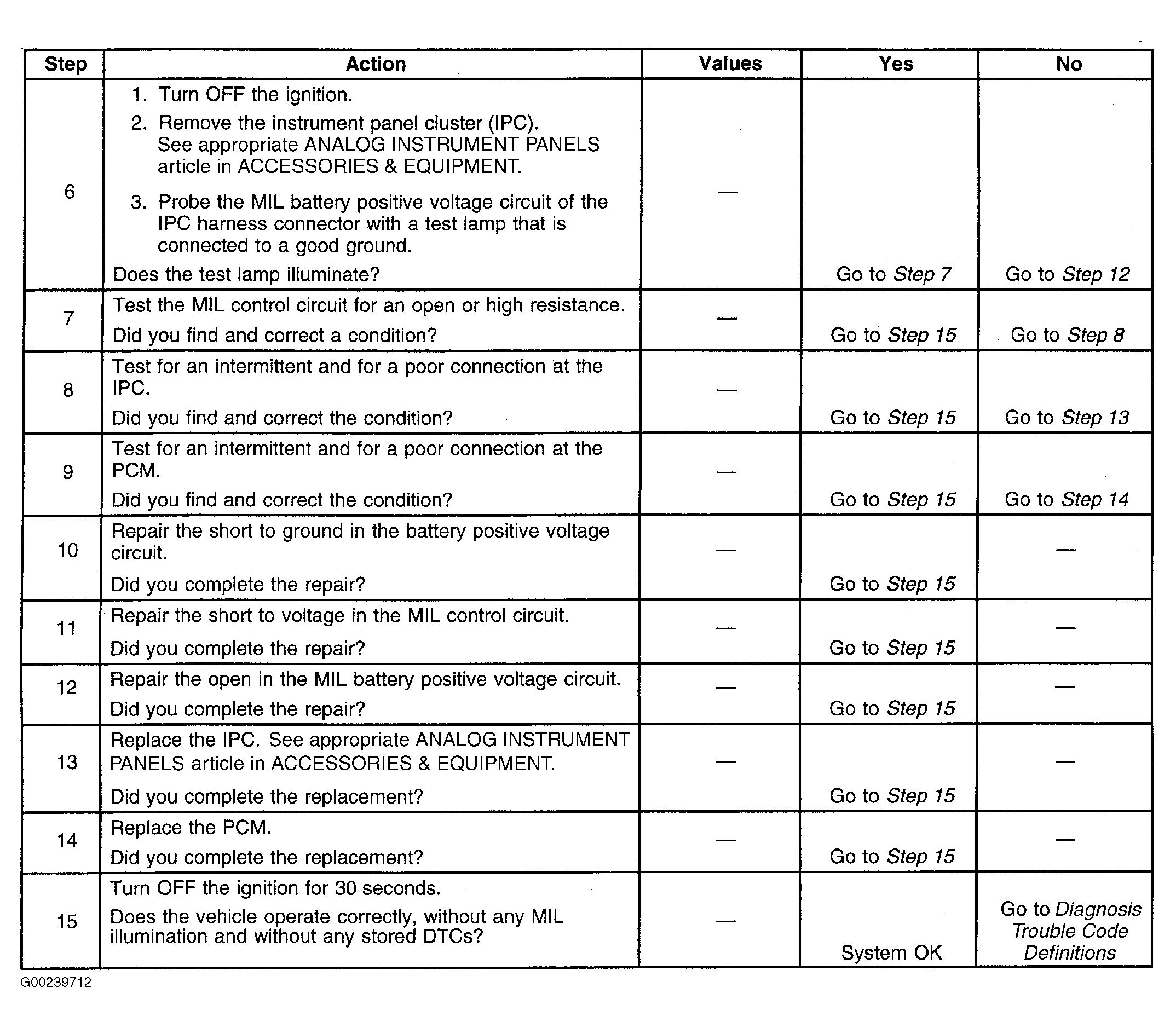

Fig 2: Malfunction Indicator Light (MIL) Inoperative (Steps 6-15)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
