Removal Procedure

  1. Raise and suitably support the vehicle with safety stands.
  2. Remove the exhaust system, as necessary.
  3. Remove the bolts retaining the heat shield.
  4. Remove the heat shield.

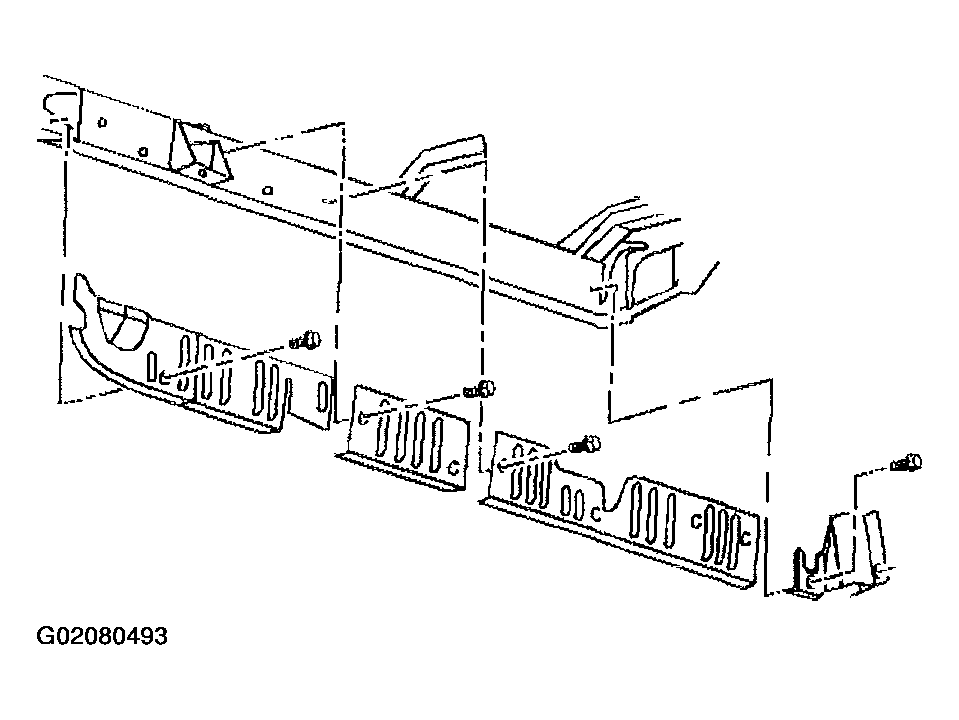

    Fig 1: Removing Bolts & Exhaust Heat Shield
    G02080493Courtesy of GENERAL MOTORS CORP.
