Installation Procedure

  1. Place the weatherstrip into the roof rail.
  2. Press the retainers into the weatherstrip and then into the holes in the roof rail.

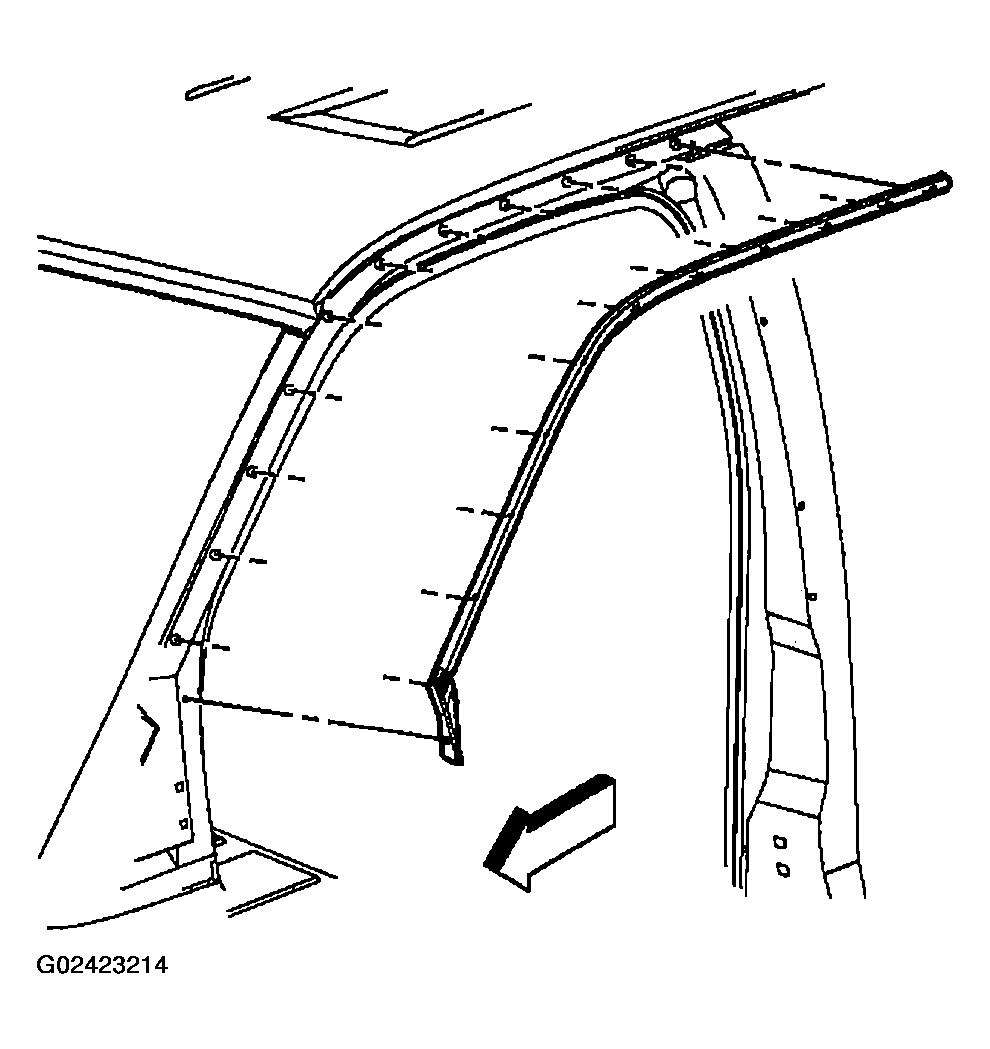

    Fig 1: Installing Drip Rail Weatherstrip
    G02423214Courtesy of GENERAL MOTORS CORP.
