Installation Procedure

  1. Install the lower striker (1) to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts (2) that retain the lower striker (1) to the stepwell.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  3. Install the side door stepwell mat. Refer to MAT REPLACEMENT - STEPWELL .

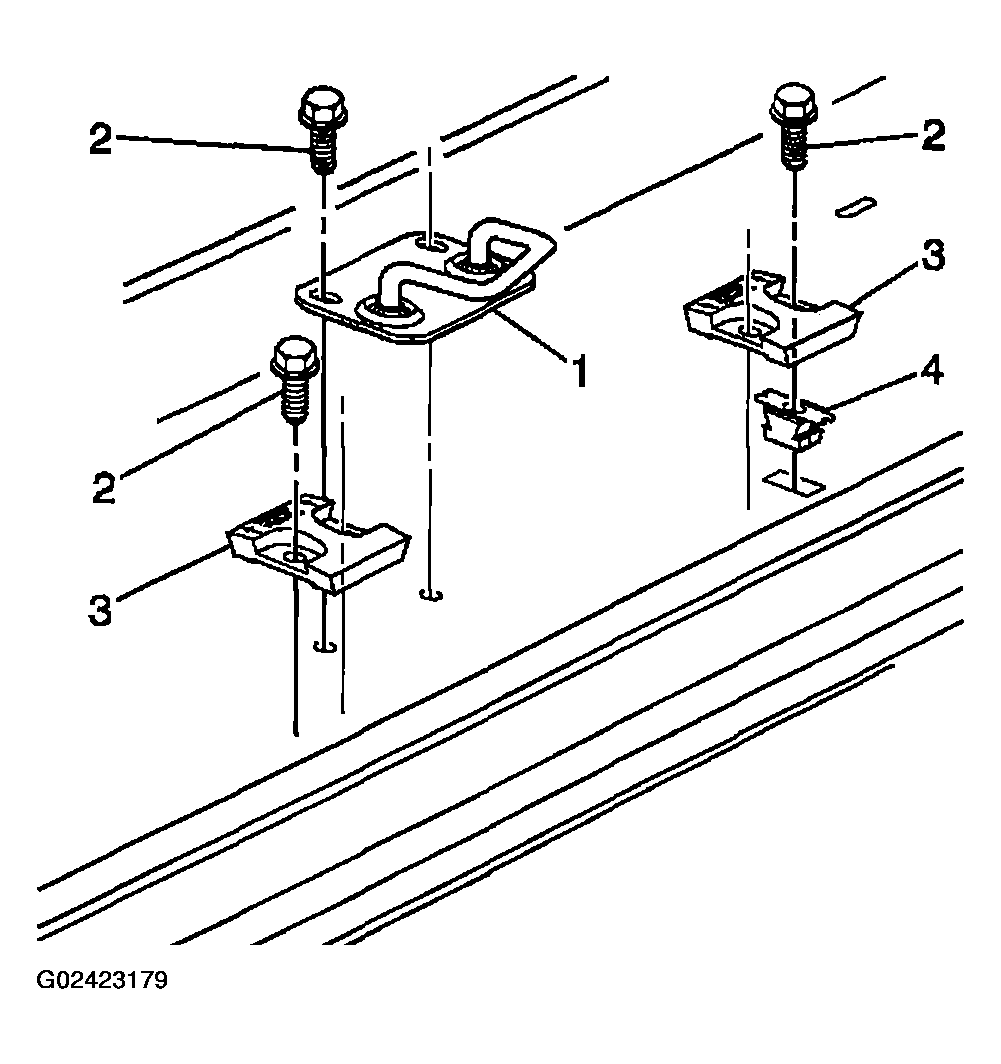

    Fig 1: Installing Lower Striker
    G02423179Courtesy of GENERAL MOTORS CORP.
