Removal Procedure

  1. Remove the front door garnish molding. Refer to Garnish Molding Replacement - Front Door Front .
  2. Remove the nuts that retain the rearview mirror to the door.
  3. Remove the rearview mirror from the door.

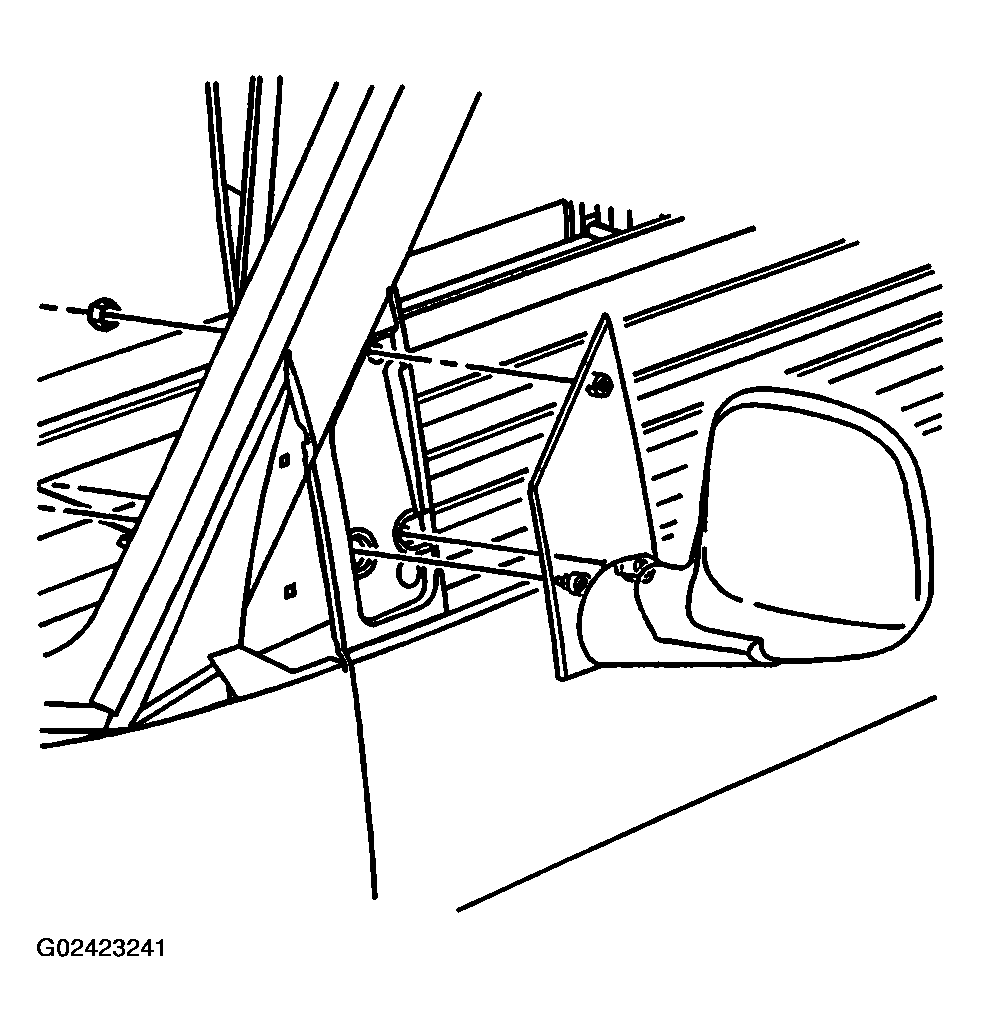

    Fig 1: Removing Manual Mirror
    G02423241Courtesy of GENERAL MOTORS CORP.
