Installation Procedure

  1. Align the inside door handle bezel (1) to the front door trim plate.
  2. Press the door handle bezel towards the door trim panel in order to engage the retaining tab.

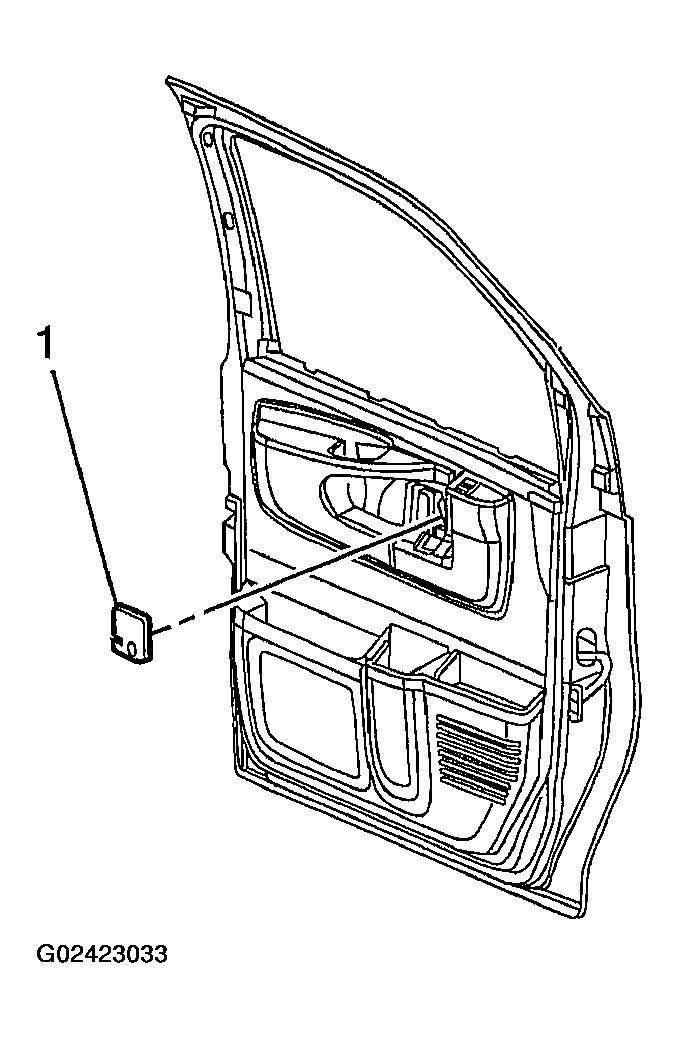

    Fig 1: Installing Inside Door Handle Bezel (Front)
    G02423033Courtesy of GENERAL MOTORS CORP.
