Removal Procedure

  1. Remove the sliding side door locator mounting bolts.
  2. Remove the locator from the sliding door.

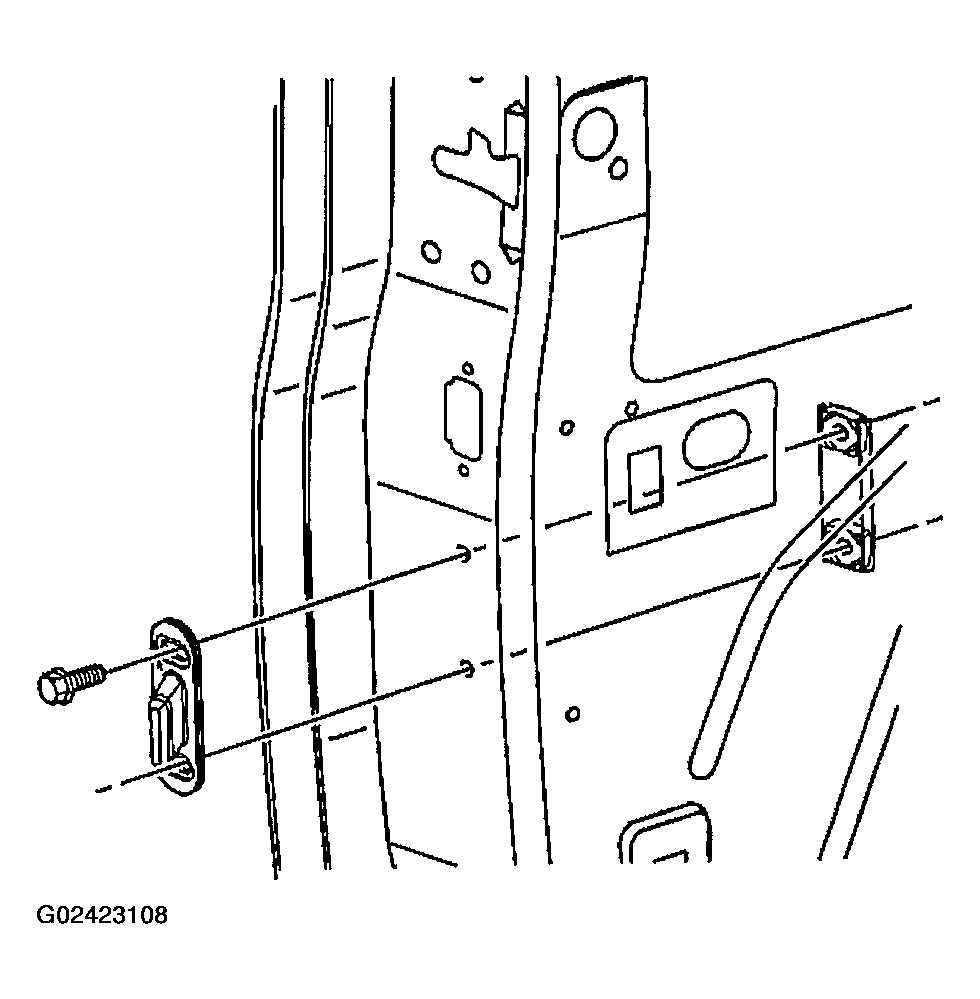

    Fig 1: Removing Sliding Door Locator
    G02423108Courtesy of GENERAL MOTORS CORP.
