Removal Procedure

  1. Remove the screws (3) that retain the assist handle to the seatback (1).
  2. Remove the assist handle (2) from the seatback.

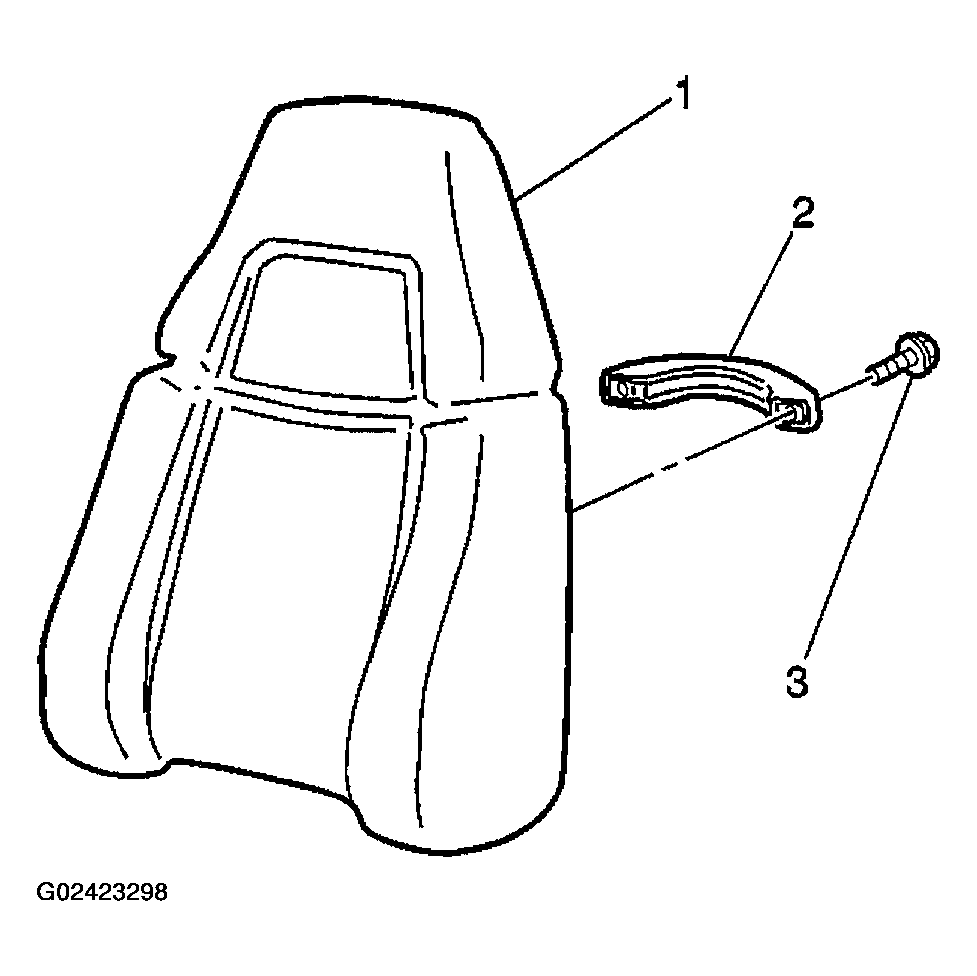

    Fig 1: Removing Assist Handle
    G02423298Courtesy of GENERAL MOTORS CORP.
