Park/Neutral Position Switch (C2) Connector End View

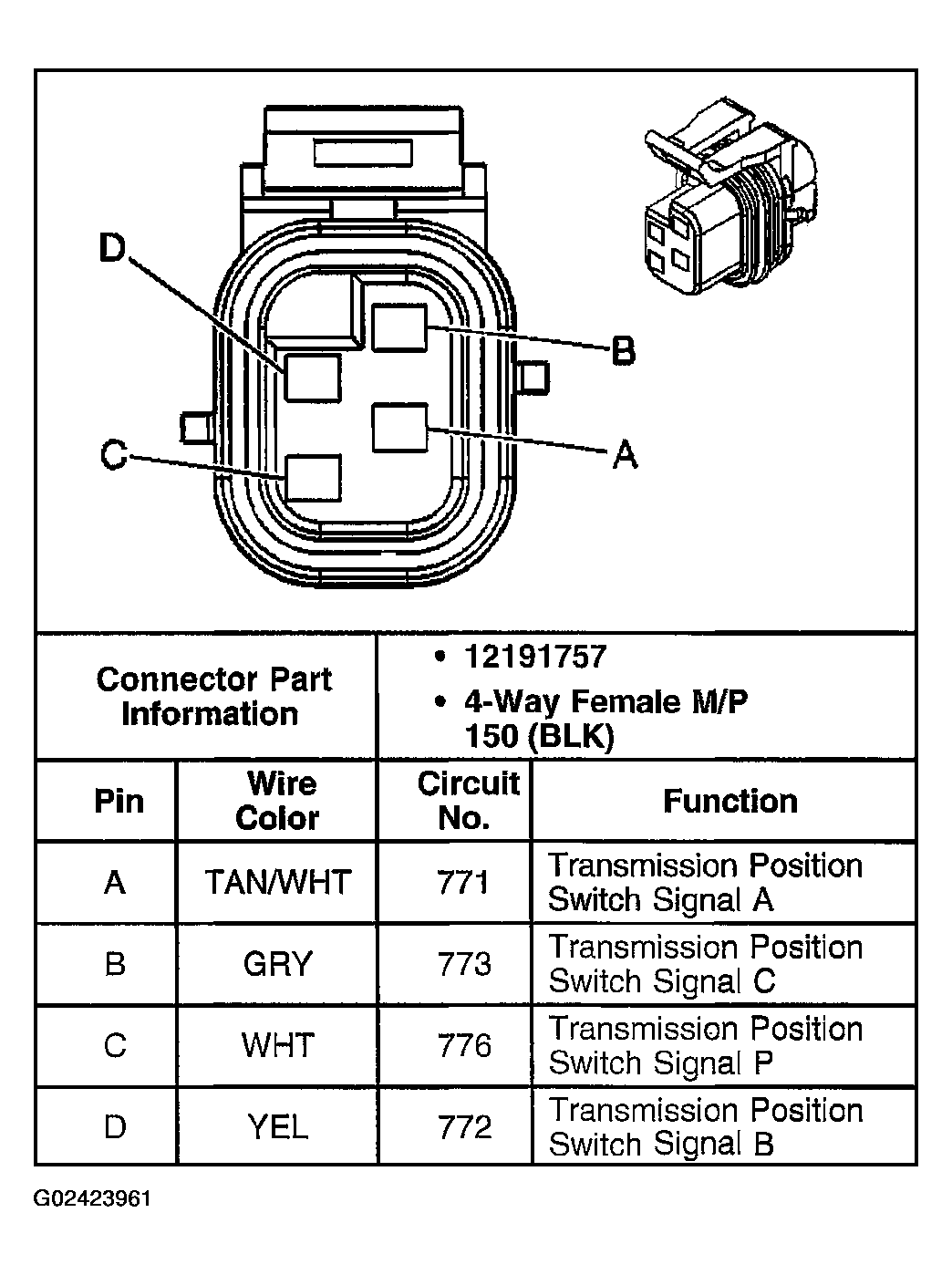

Fig 1: Park/Neutral Position Switch (C2) Connector End View
G02423961Courtesy of GENERAL MOTORS CORP.

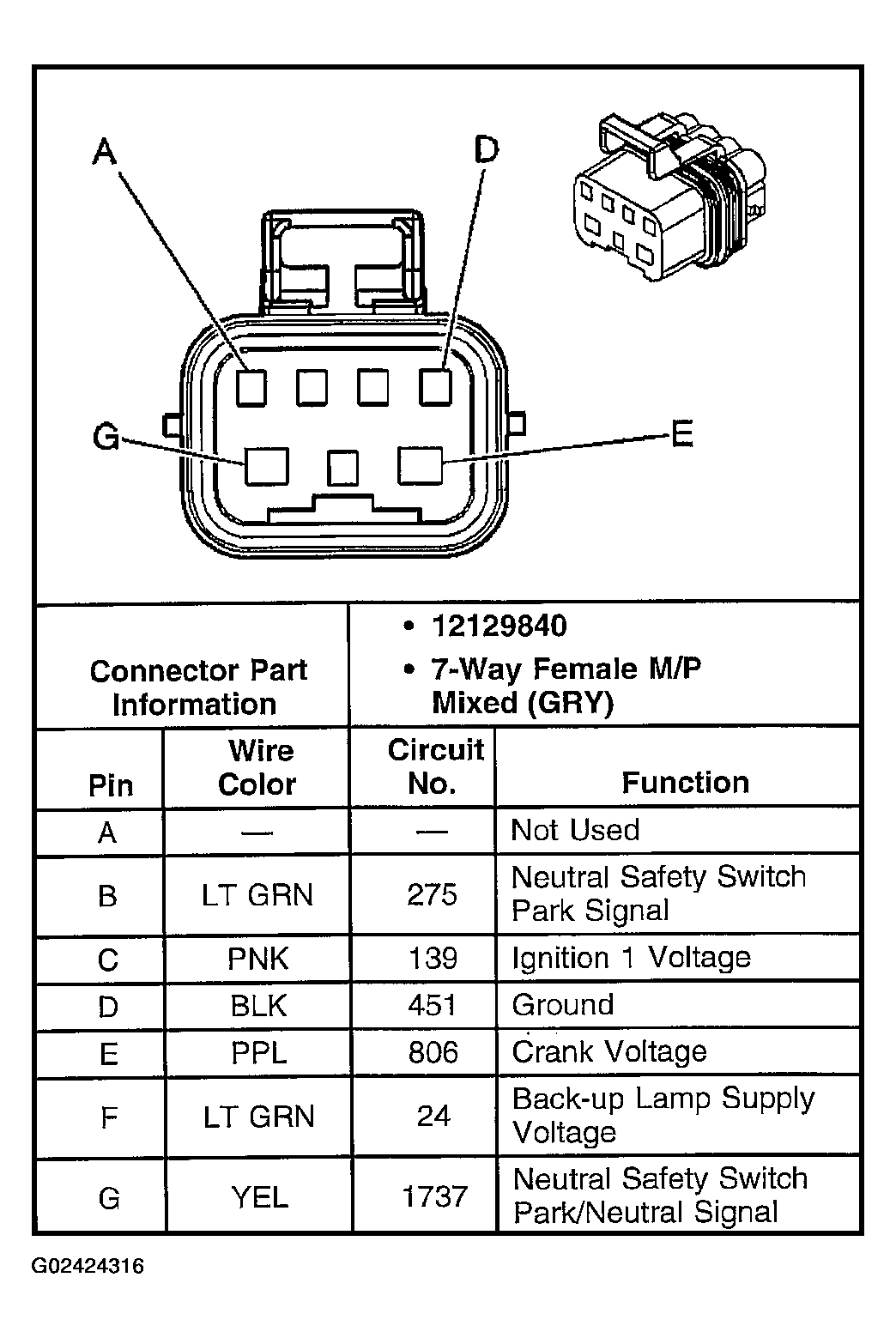

Fig 1: Park/Neutral Position Switch (C2) Connector End View
G02424316Courtesy of GENERAL MOTORS CORP.
