Installation Procedure

  1. Install the multi-function audio alarm module (2) to the mag beam.
  2. Connect the electrical connector (1) to the multi-function audio alarm module (2).
  3. Install the drivers side knee bolster. Refer to Knee Bolster Bracket Replacement - Left .

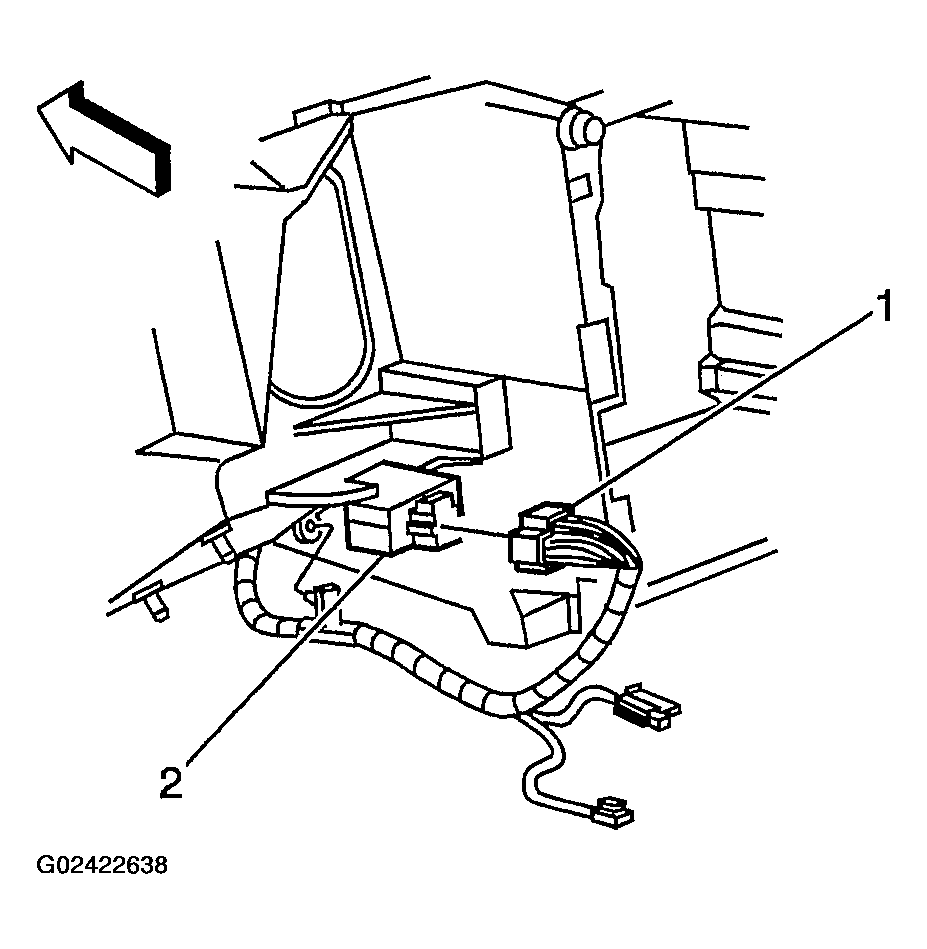

    Fig 1: Installing Multi-Function Audio Alarm Module
    G02422638Courtesy of GENERAL MOTORS CORP.
