Removal Procedure

  1. Remove the lower fan shroud. Refer to FAN SHROUD REPLACEMENT - LOWER in Engine Cooling.
  2. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT in Engine Mechanical 4.3L.
  3. Remove the power steering pump pulley using the J 25034-C

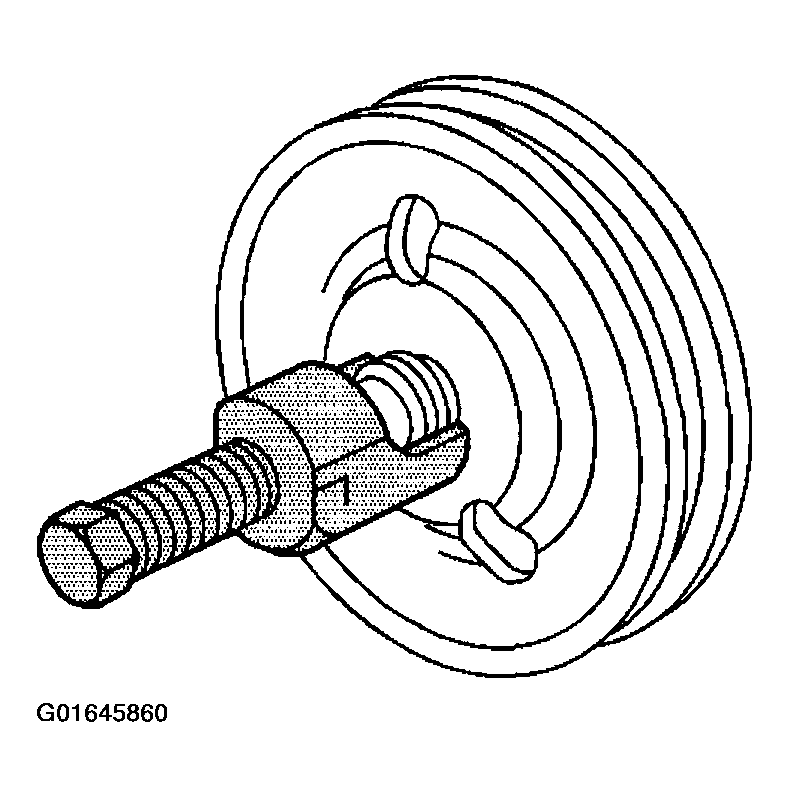

    Fig 1: Removing Power Steering Pump Pulley Using J 25034-C
    G01645860Courtesy of GENERAL MOTORS CORP.
