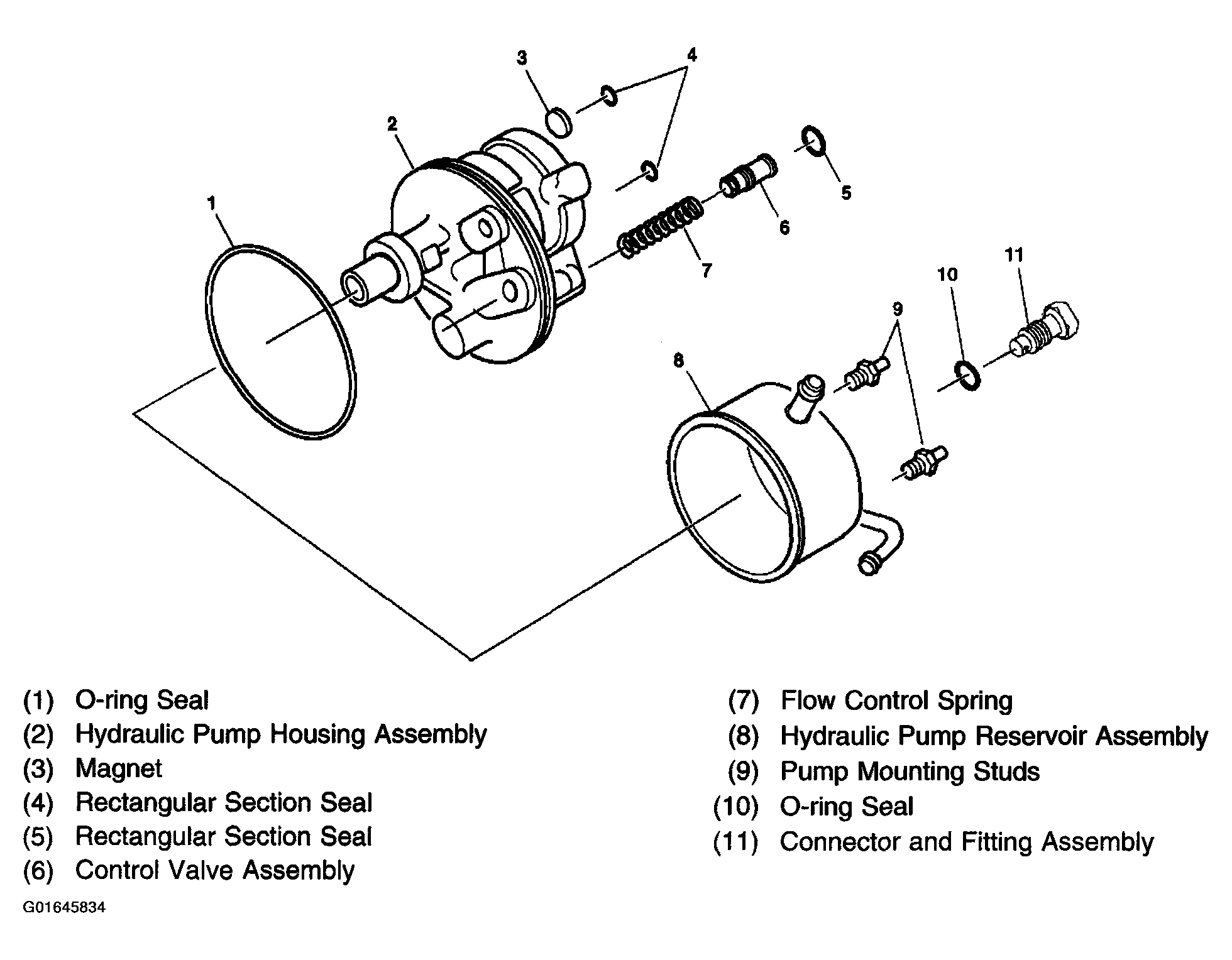

Power Steering Pump Disassembled view

Fig 1: Power Steering Pump

G01645834

Courtesy of GENERAL MOTORS CORP.
