Disassembled Views

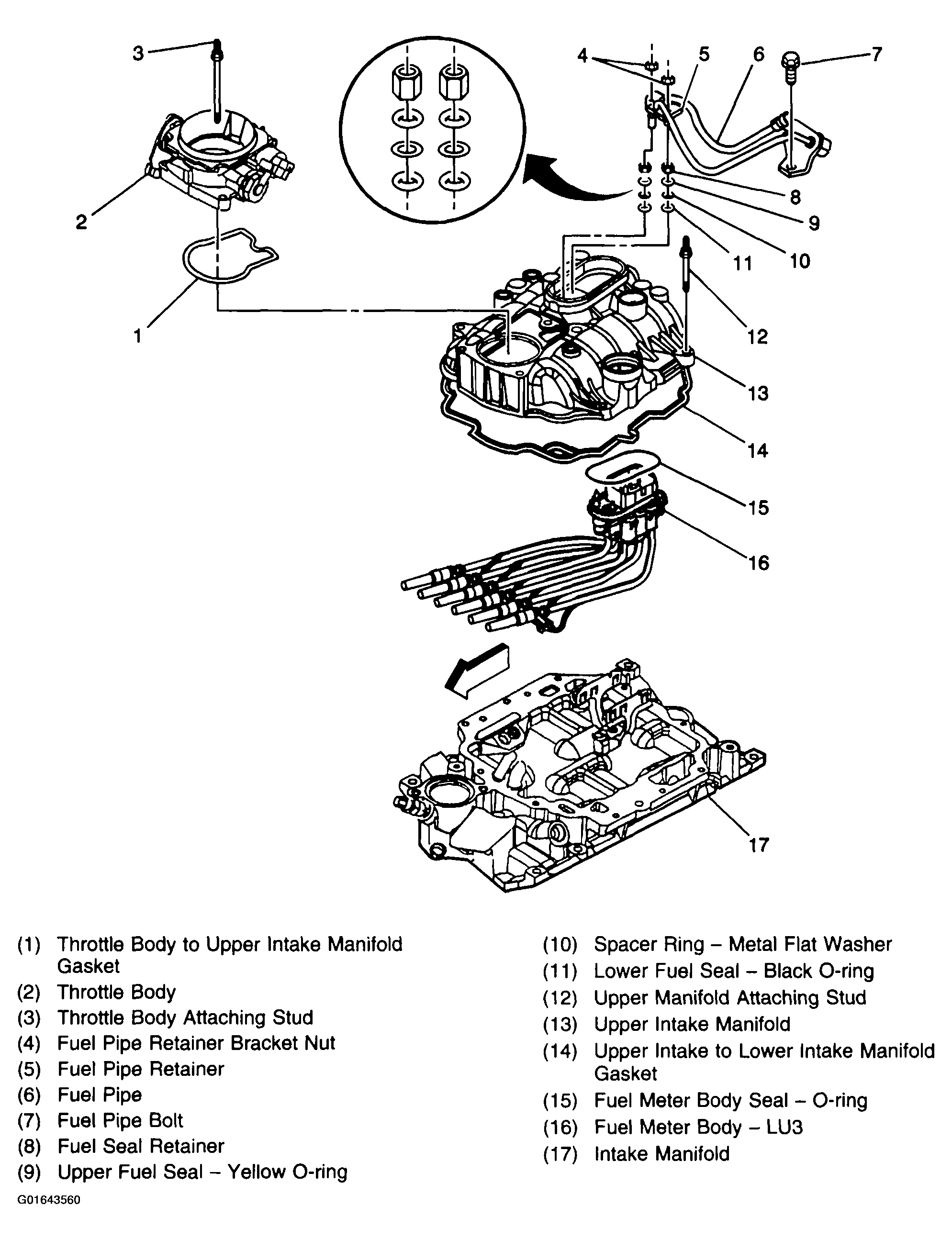

Fig 1: Upper And Lower Intake Manifold Disassembled View
G01643560Courtesy of GENERAL MOTORS CORP.

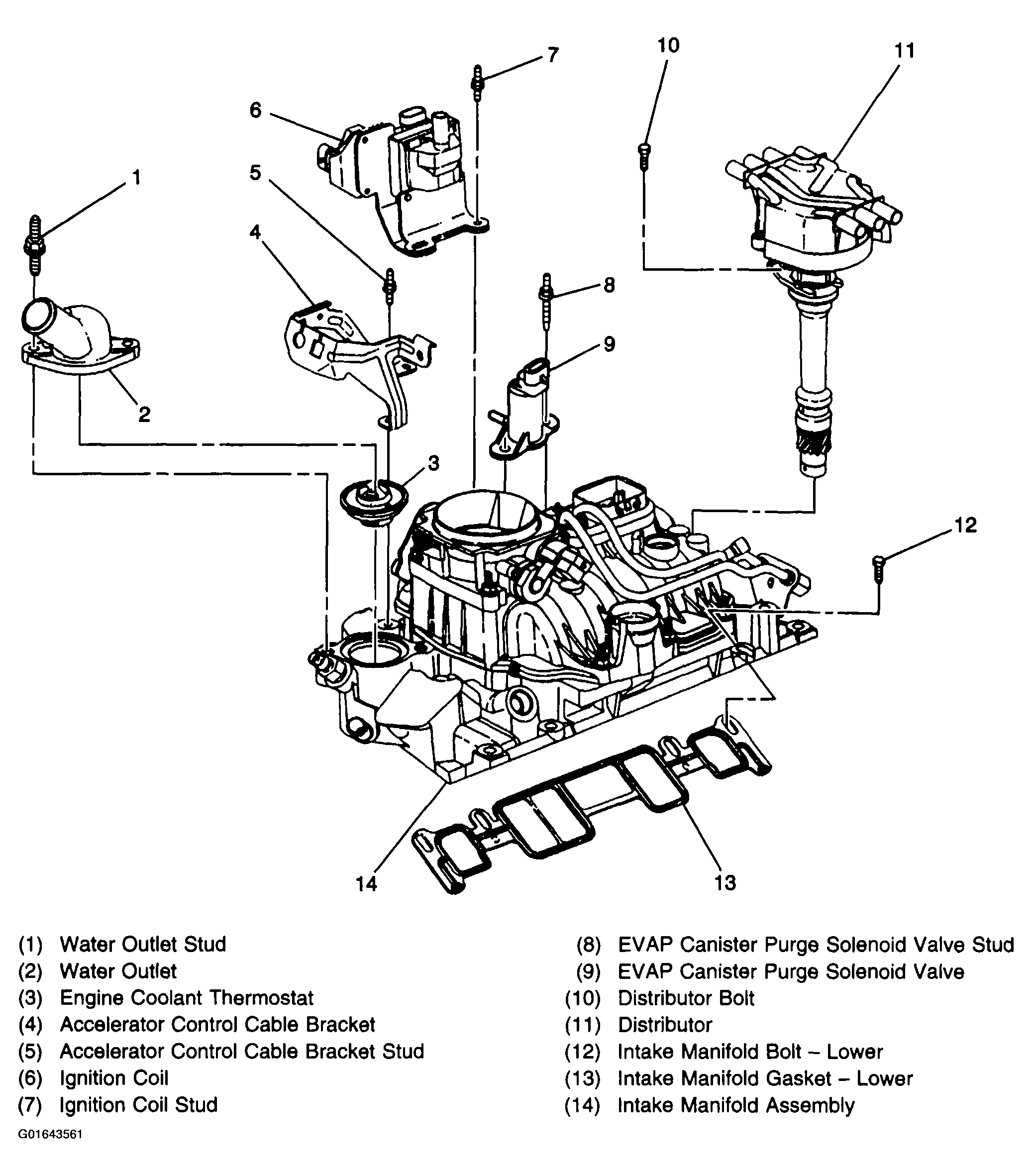

Fig 2: Upper Engine Disassembled View 1
G01643561Courtesy of GENERAL MOTORS CORP.

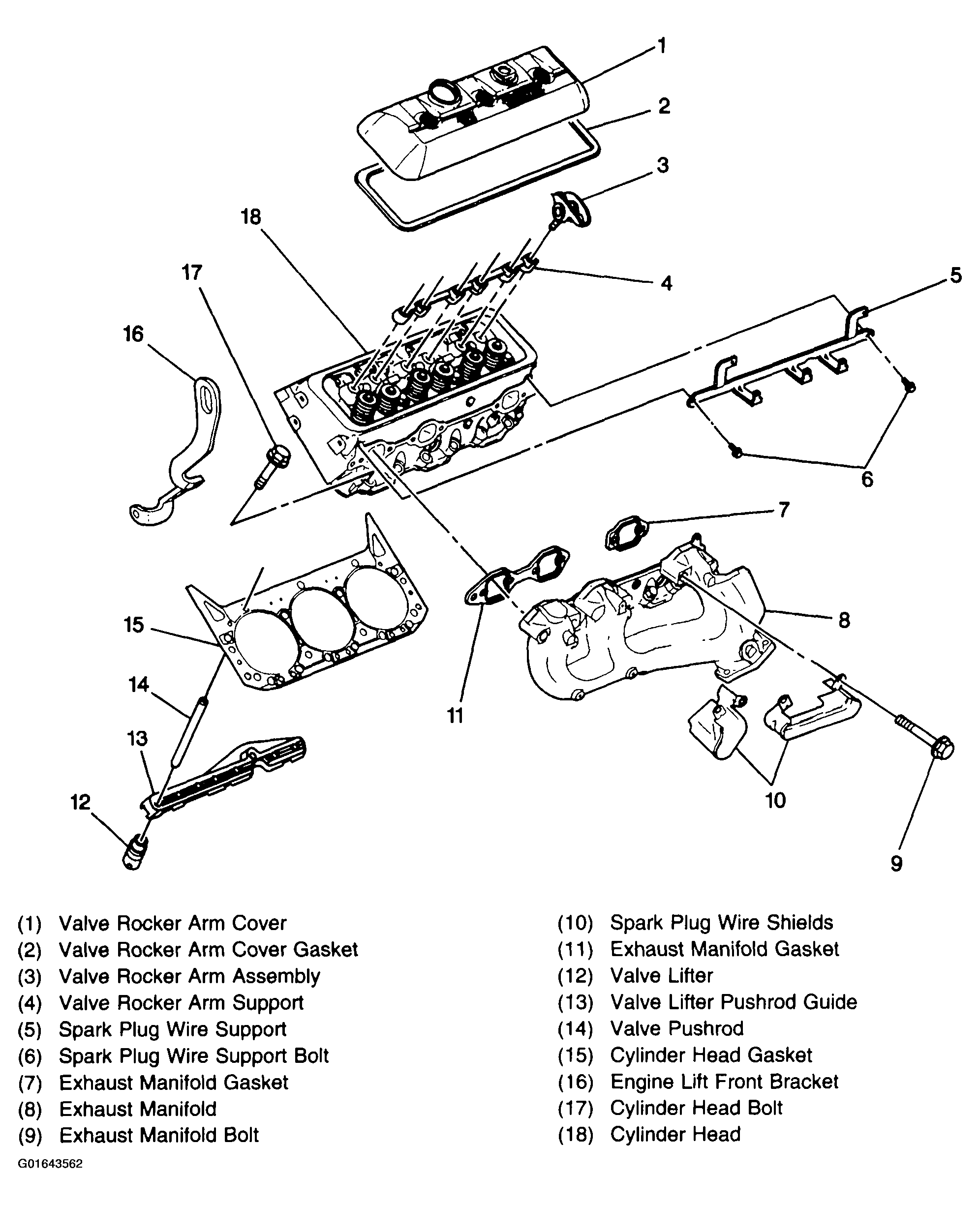

Fig 3: Upper Engine View Disassembled View 2
G01643562Courtesy of GENERAL MOTORS CORP.

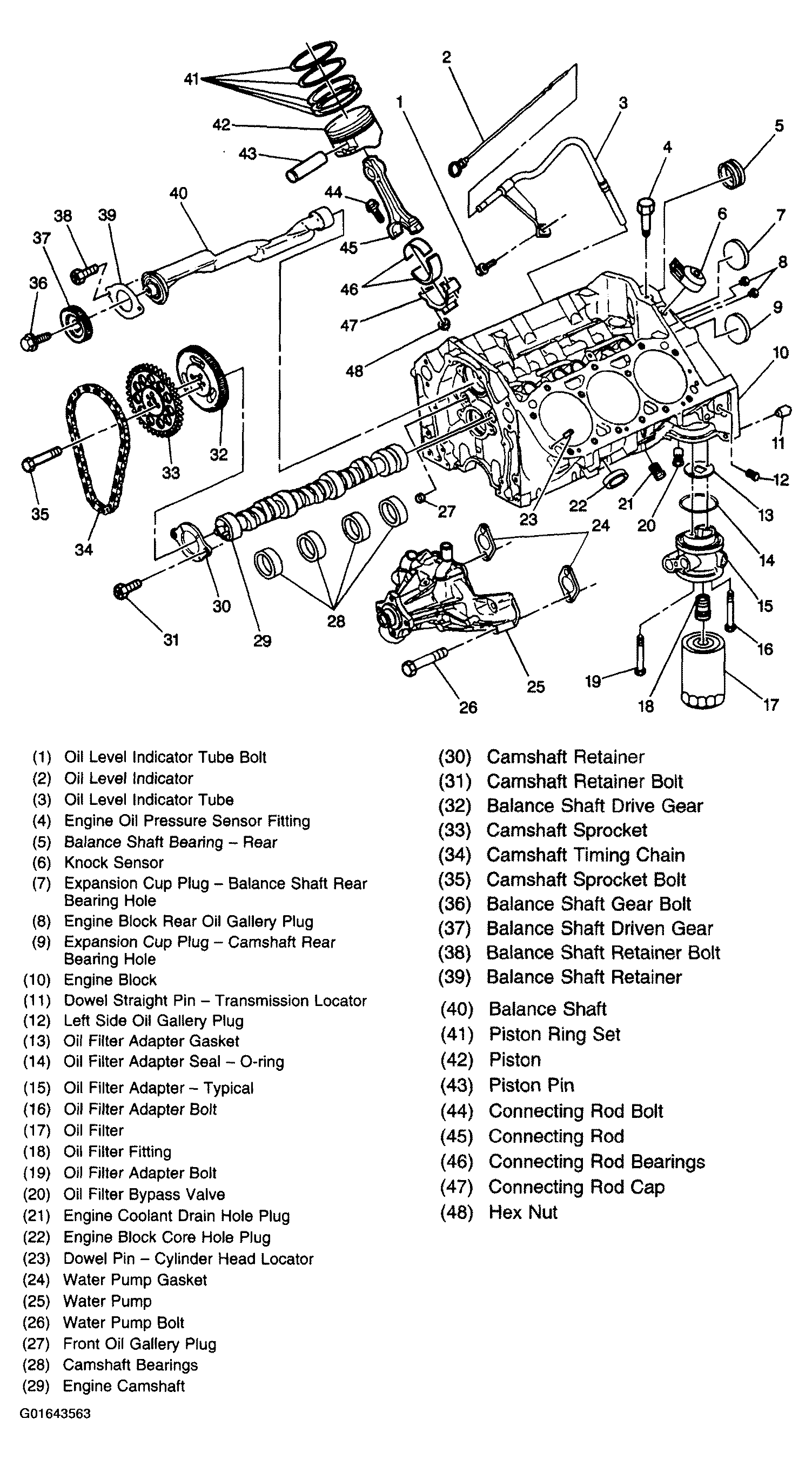

Fig 4: Lower Engine View Disassembled View 1
G01643563Courtesy of GENERAL MOTORS CORP.

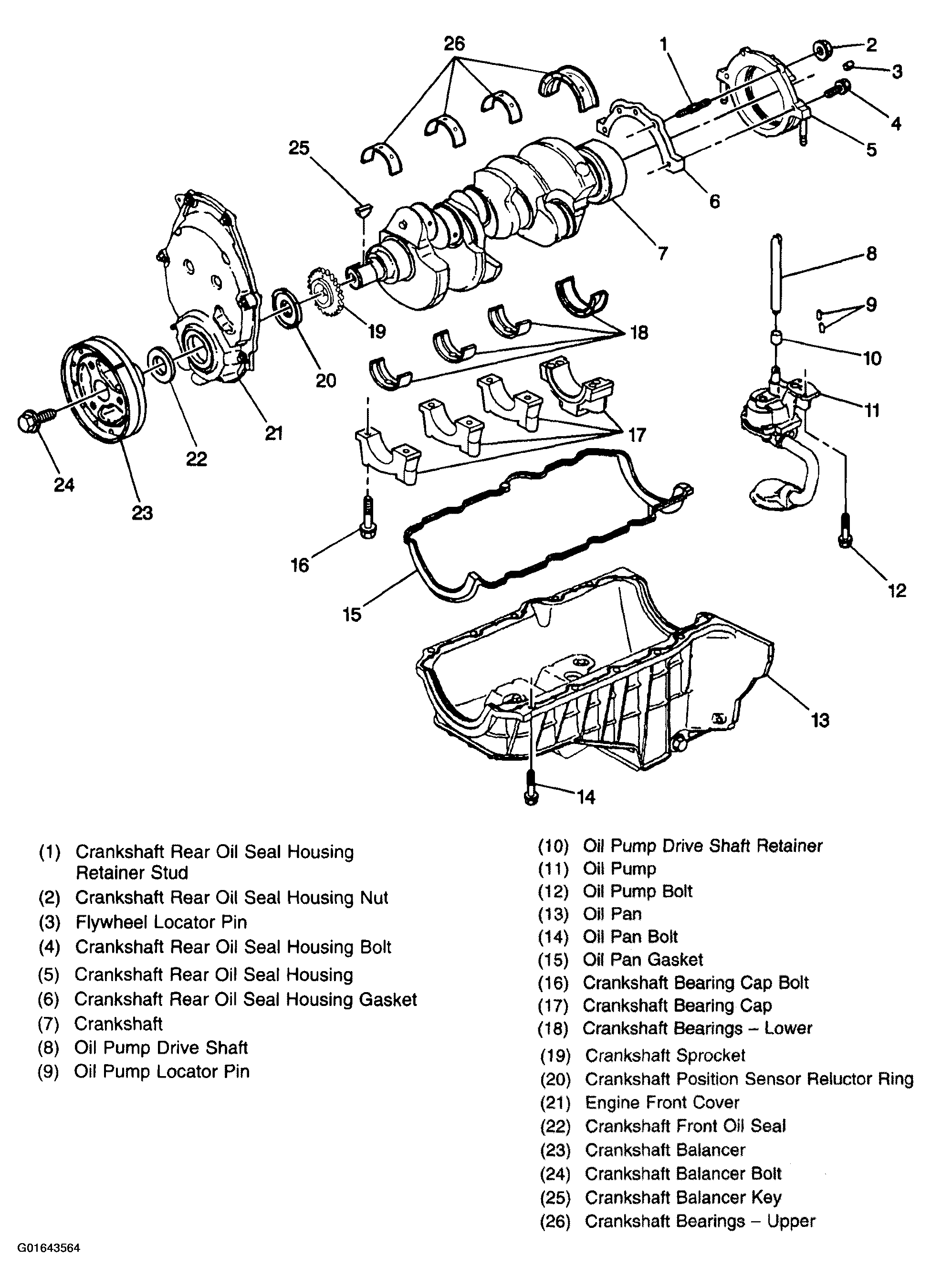

Fig 5: Lower Engine View Disassembled View 2
G01643564Courtesy of GENERAL MOTORS CORP.
