Installation Procedure

  1. Install the ground lead.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

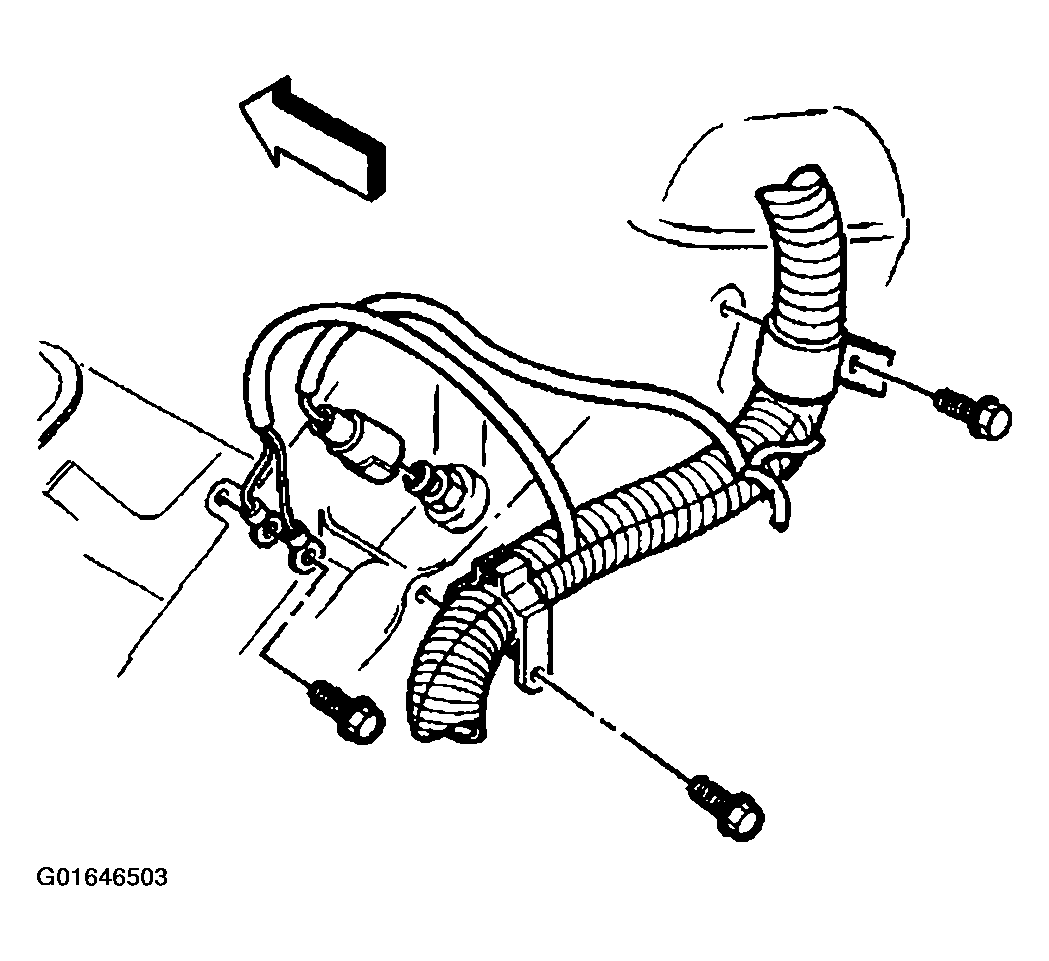

    Fig 1: Installing Ground Strap Mounting Bolts
    G01646503Courtesy of GENERAL MOTORS CORP.
  2. Install the bolt.

    Tighten

    Tighten the bolt to 40 N.m (29 lb ft).
