Door Lock/Indicator Schematics

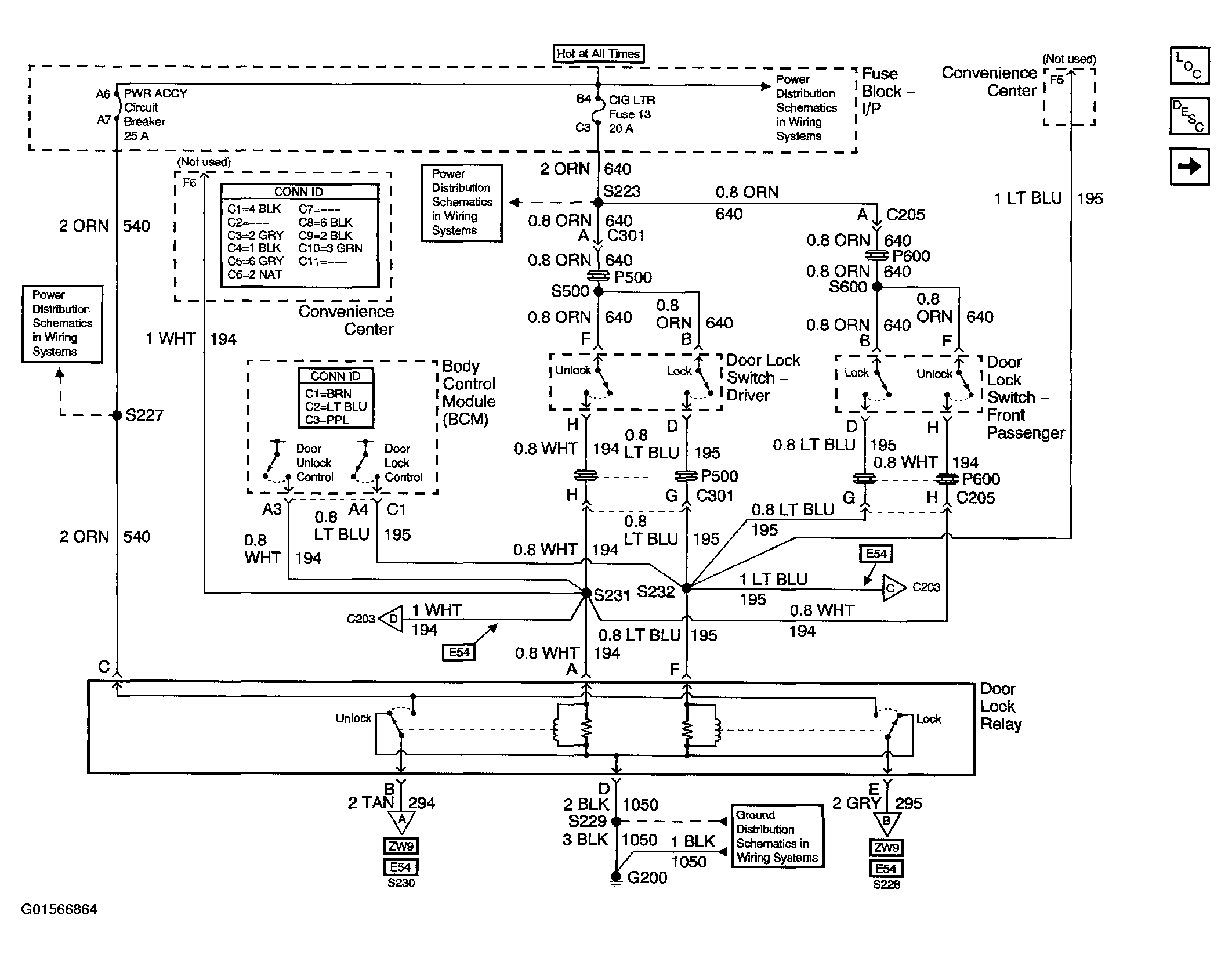

Fig 1: Door Lock Switches And Relay

Courtesy of GENERAL MOTORS CORP.

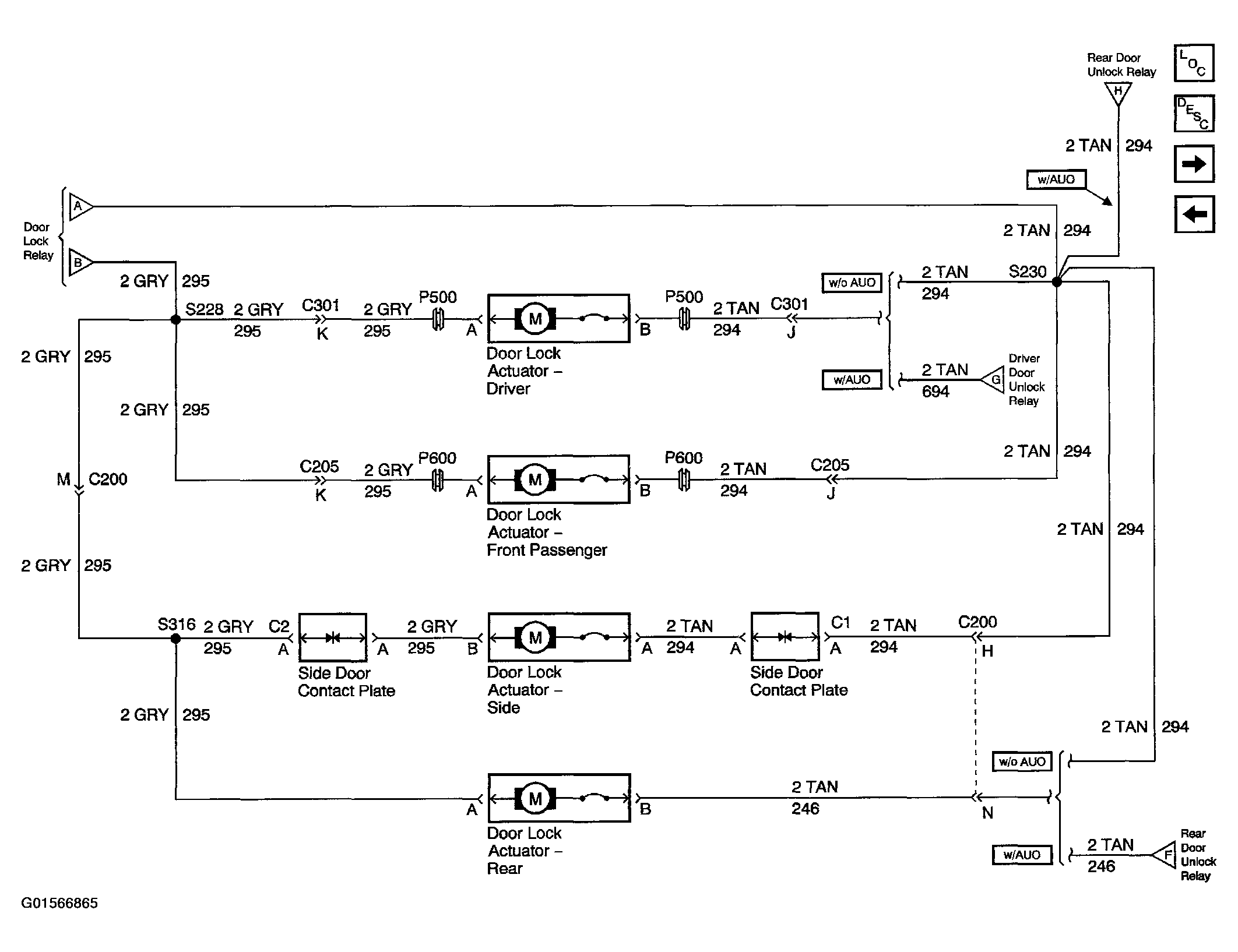

Fig 2: Door Lock Actuators (ZW9)

Courtesy of GENERAL MOTORS CORP.

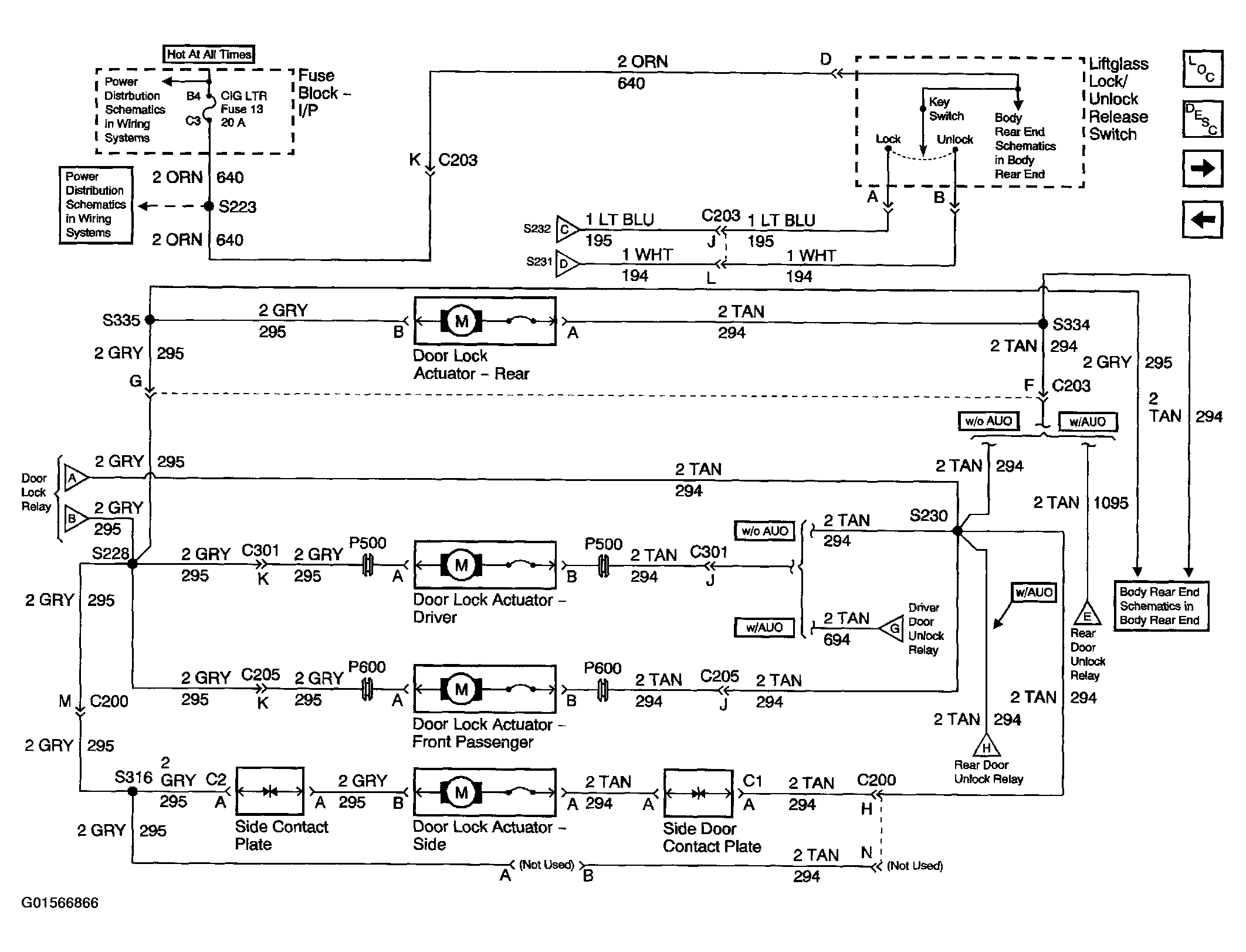

Fig 3: Door Lock Actuators (E54)

Courtesy of GENERAL MOTORS CORP.

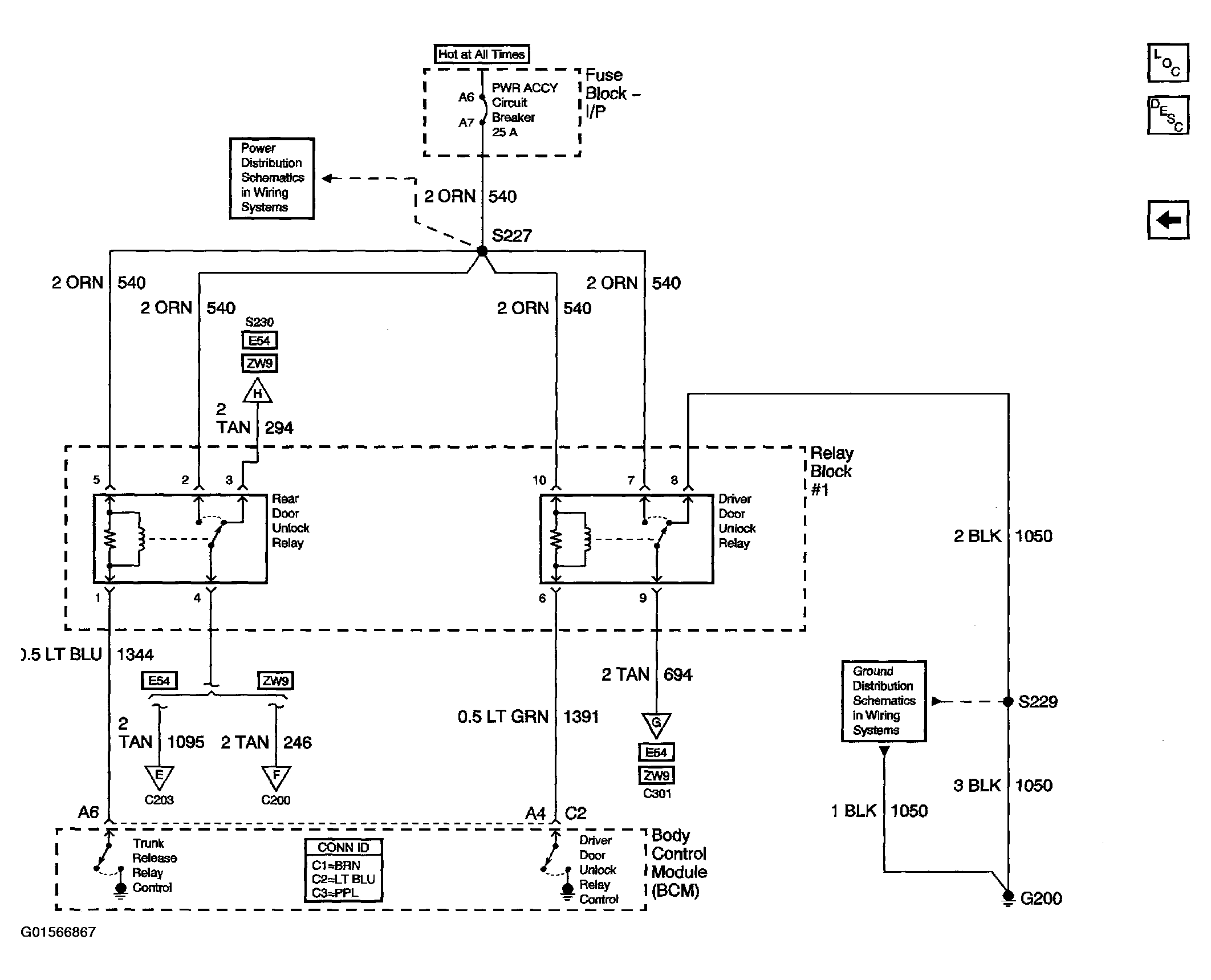

Fig 4: Door Unlock Relays

Courtesy of GENERAL MOTORS CORP.
