Installation Procedure

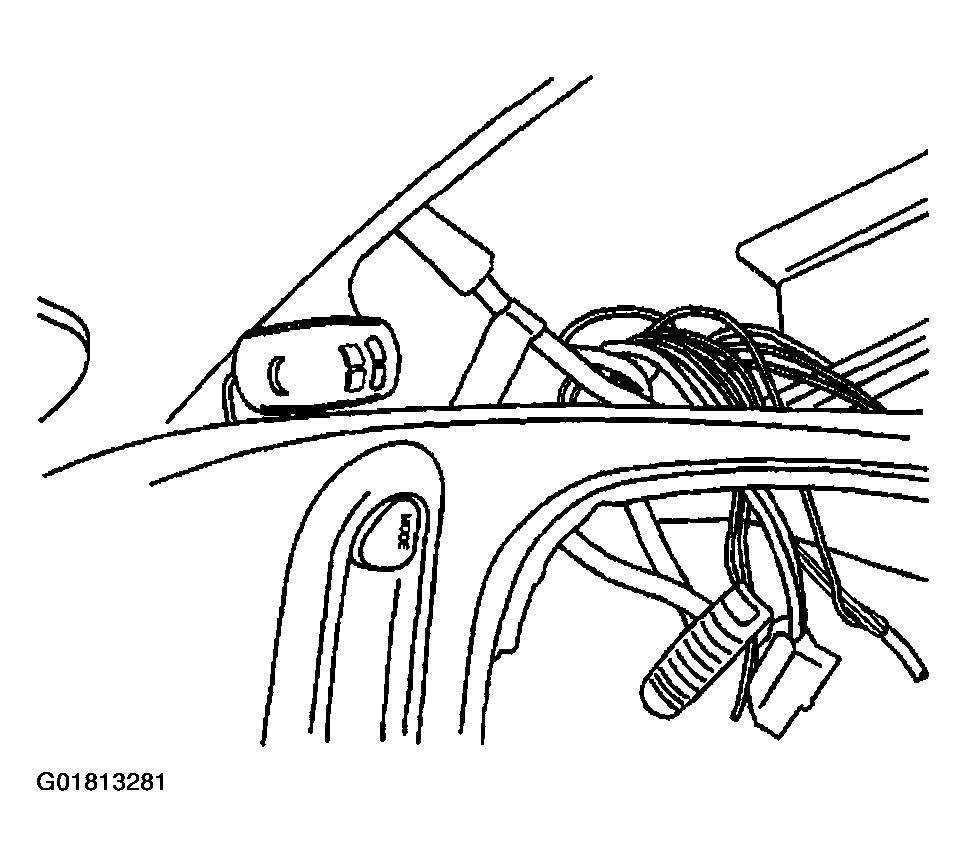

Fig 1: Installing Microphone From Headliner
G01813281Courtesy of GENERAL MOTORS CORP.
  1. Install the microphone to the headliner.
  2. Connect the microphone electrical connector.
  3. Install the overhead console. Refer to CONSOLE REPLACEMENT - OVERHEAD (SINGLE) or CONSOLE REPLACEMENT - OVERHEAD (DUAL) or CONSOLE REPLACEMENT - OVERHEAD (CF5) .

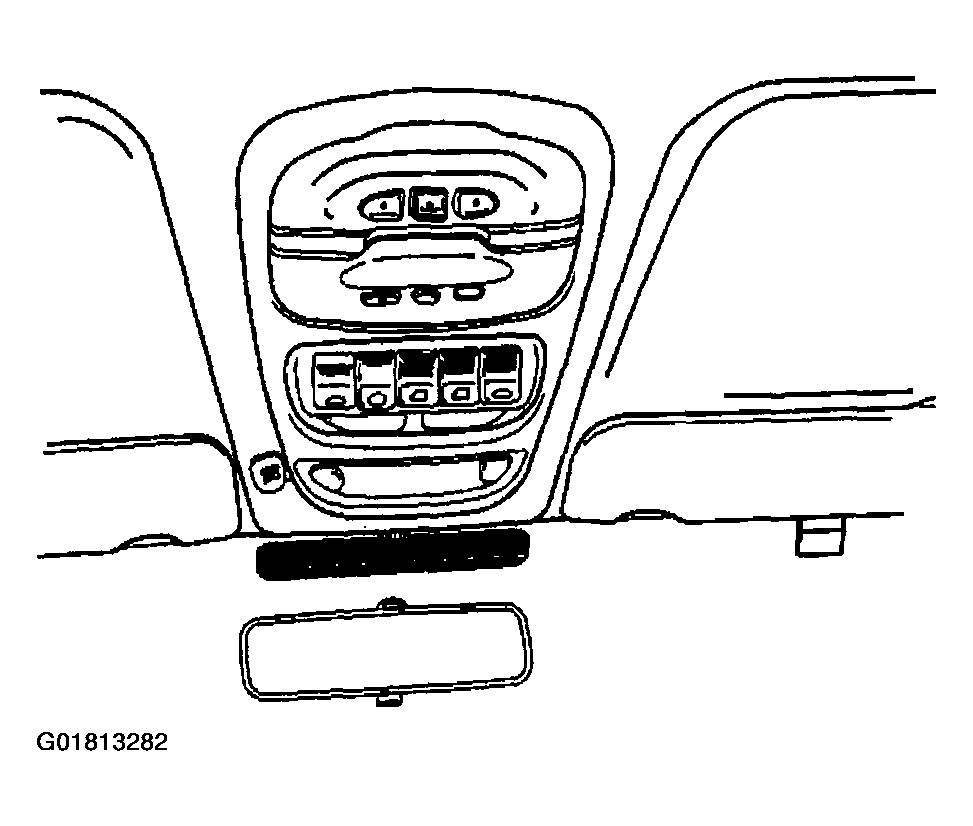

    Fig 2: Installing Overhead Console (Microphone)
    G01813282Courtesy of GENERAL MOTORS CORP.
