I/P Application Table

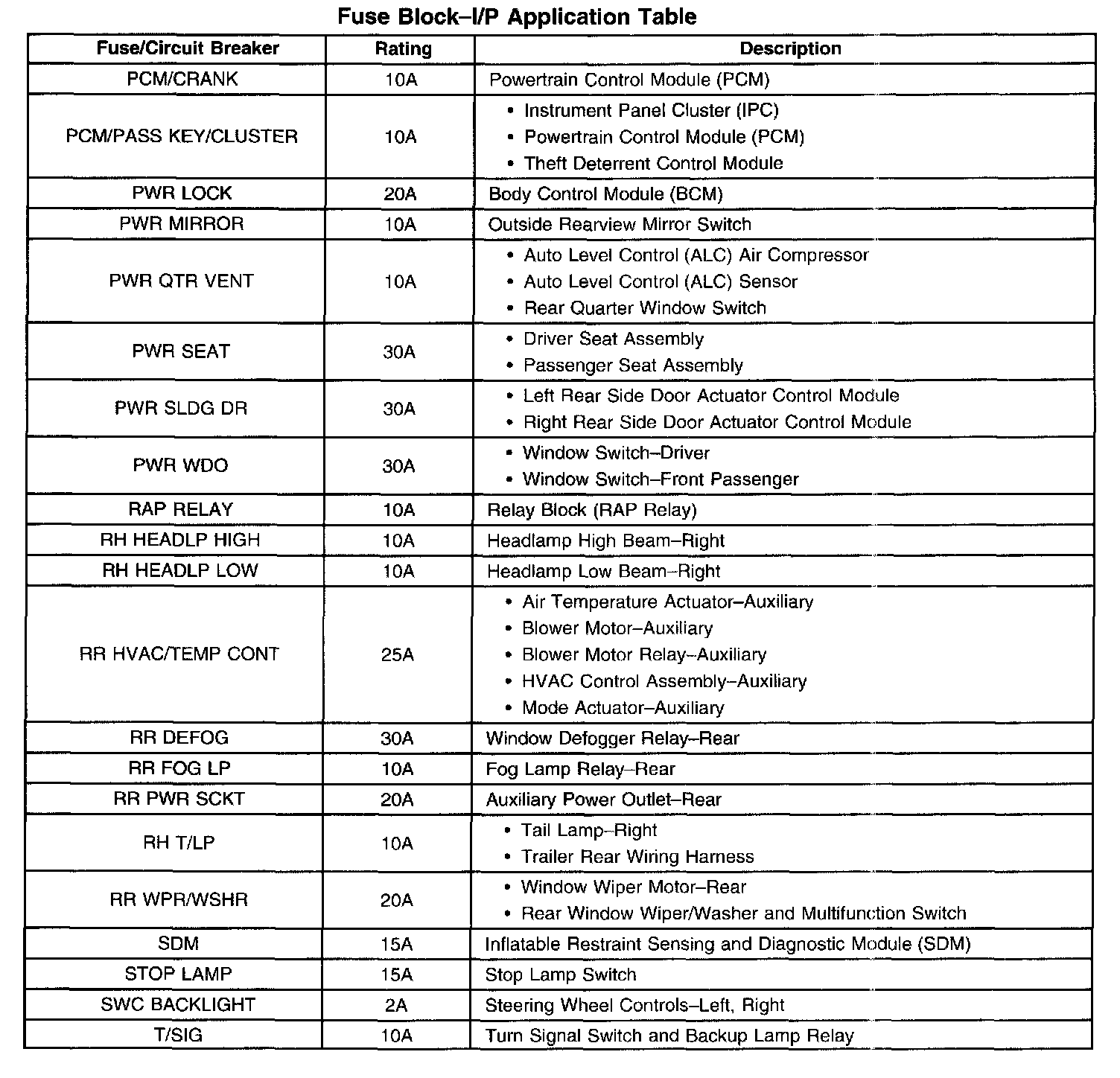

Fuse Block - I/P Application Table Part 1:

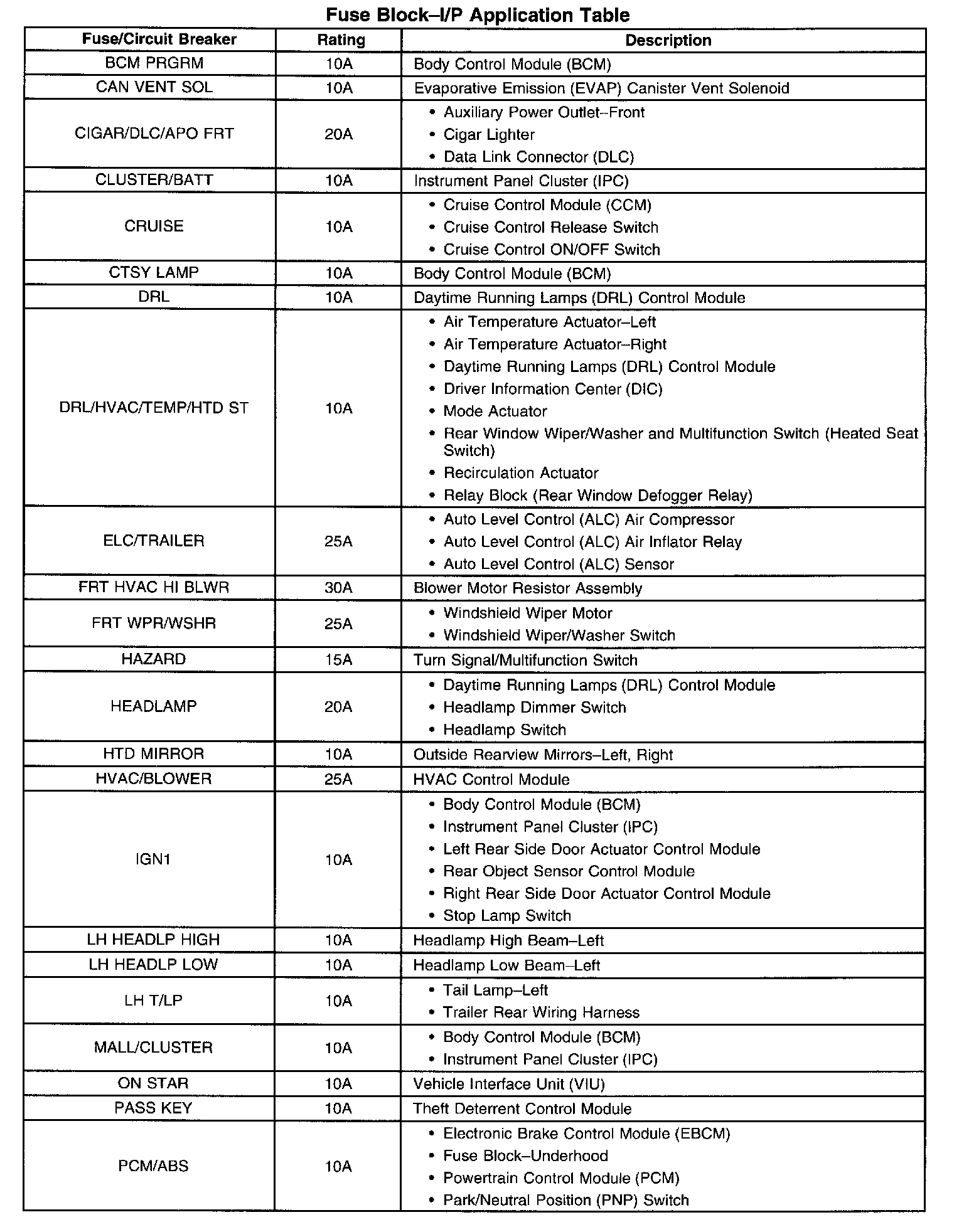

Fuse Block - I/P Application Table Part 2:
