Schematic and Routing Diagrams

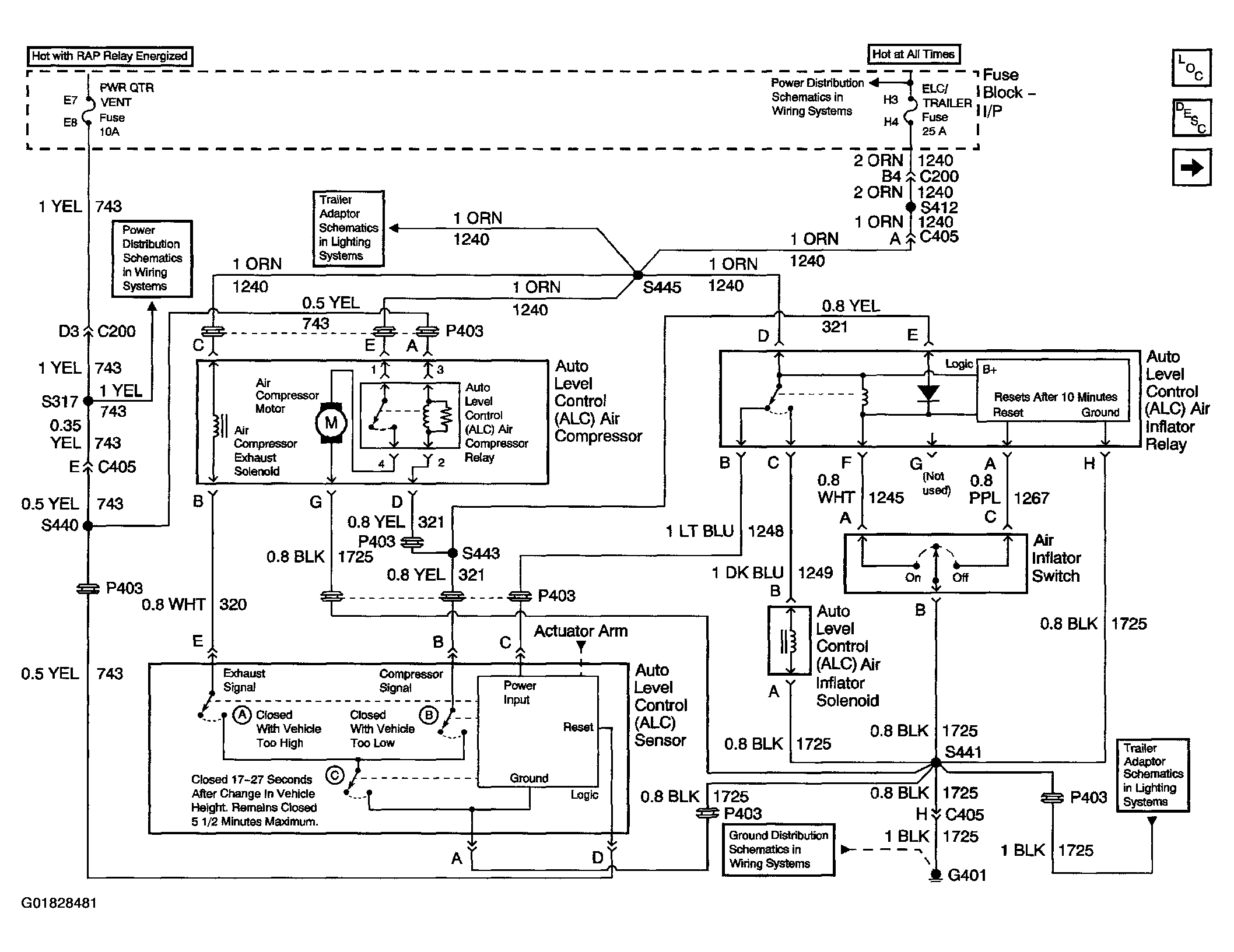

Fig 1: Automatic Level Control Suspension Schematics (With Inflator)
G01828481Courtesy of GENERAL MOTORS CORP.

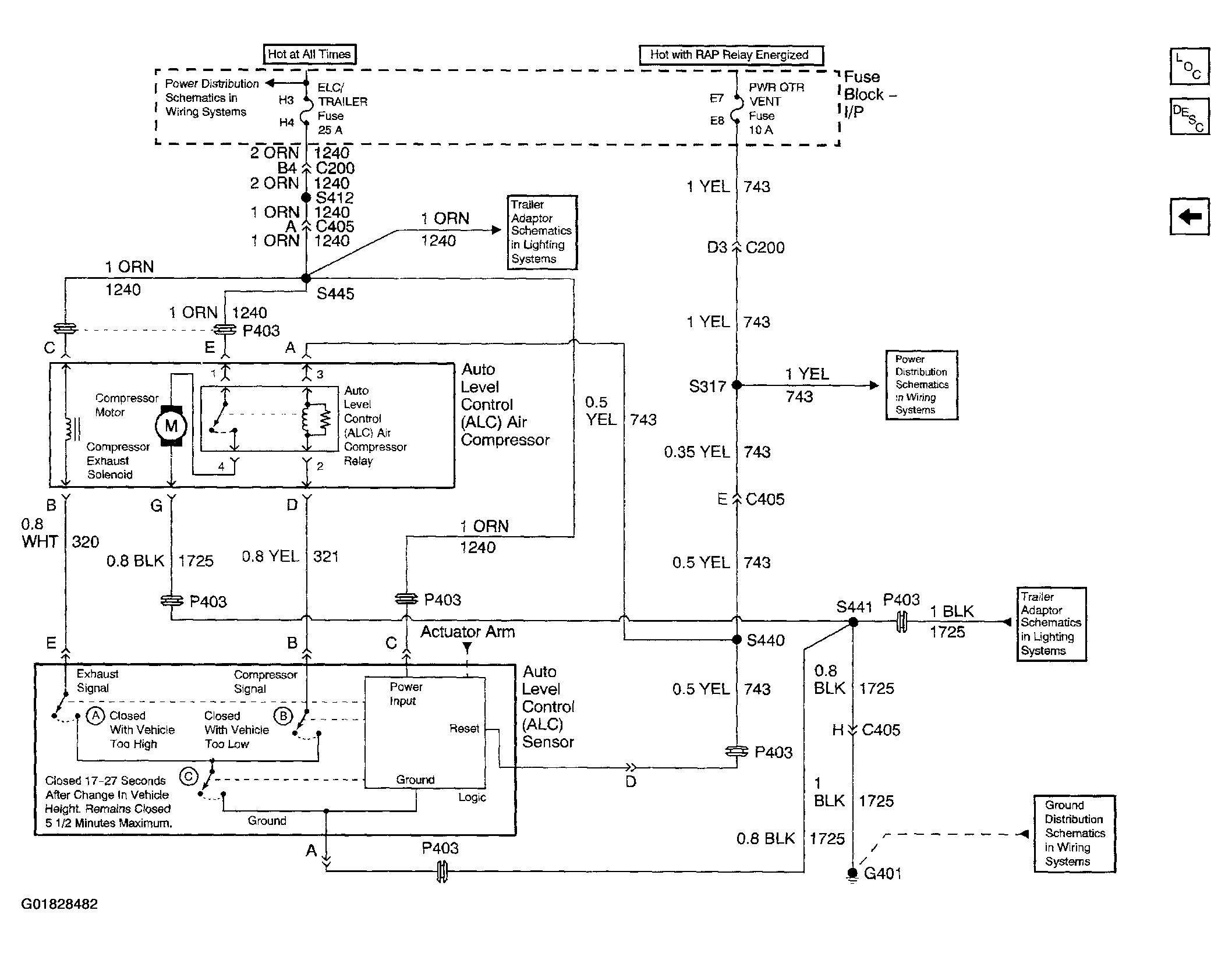

Fig 2: Automatic Level Control Suspension Schematics (Without Inflator)
G01828482Courtesy of GENERAL MOTORS CORP.
