Removal Procedure

Remove the ELC/TRAILER fuse.
Raise and support the vehicle. Refer to LIFTING & JACKING VEHICLE .
Important : When removing the link, do NOT bend or break the sensor arm.

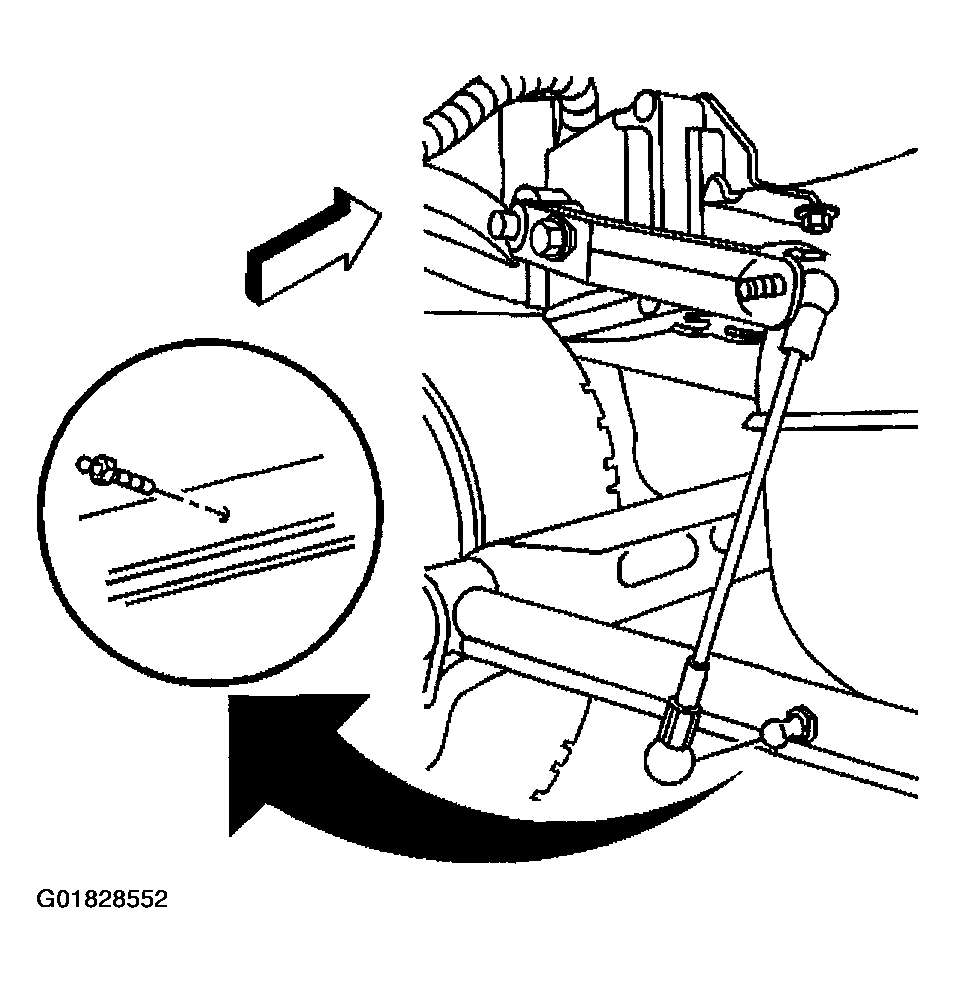

Fig 1: Automatic Level Control Sensor Link Ball Stud

Courtesy of GENERAL MOTORS CORP.

Remove the automatic level control sensor link from the tie rod ball stud.
Remove the ball stud from the rear axle tie rod.
