Automatic Level Control System Leak Test

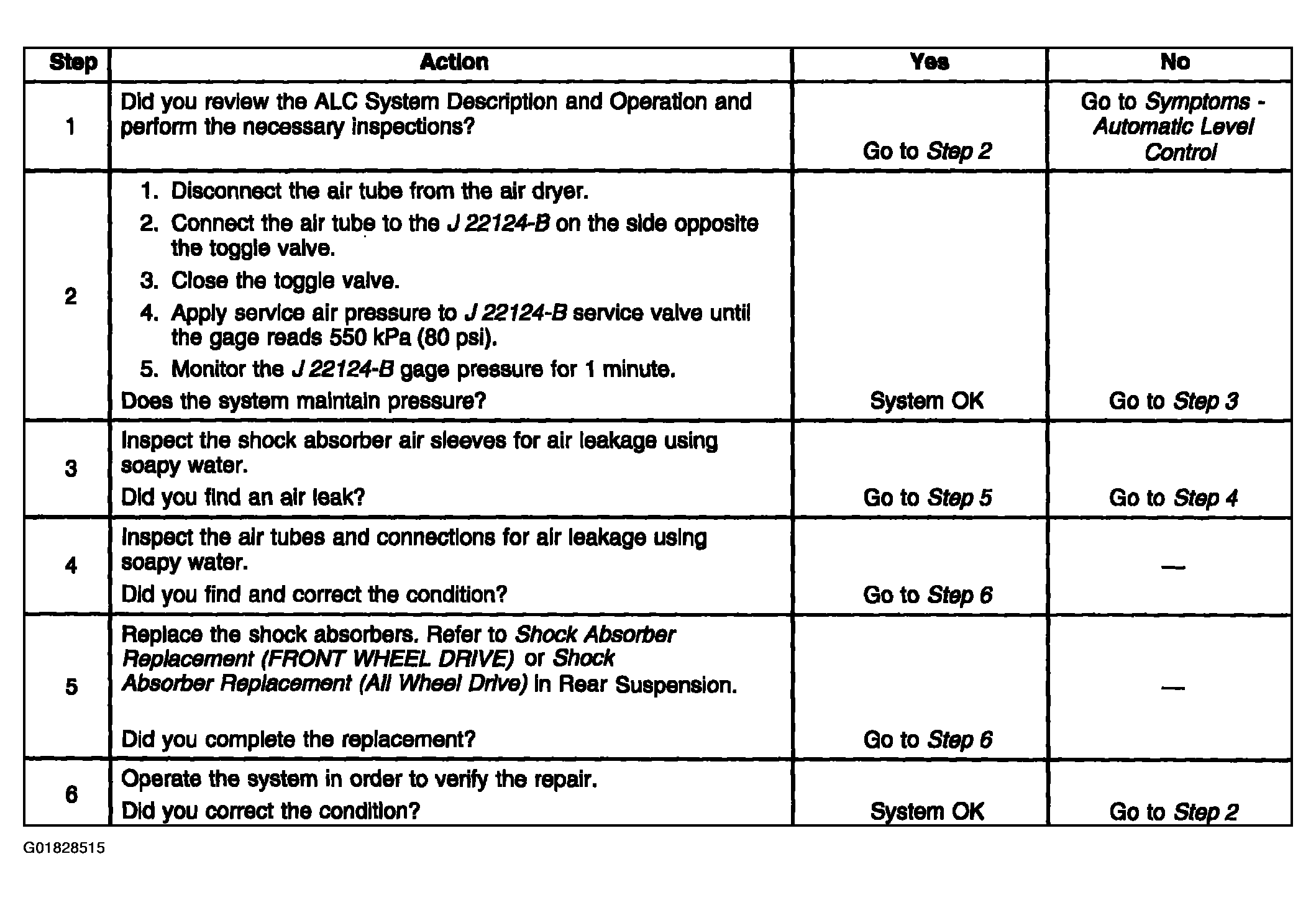

Fig 1: Automatic Level Control System Leak Test
G01828515Courtesy of GENERAL MOTORS CORP.
