Automatic Level Control Suspension Connector End Views

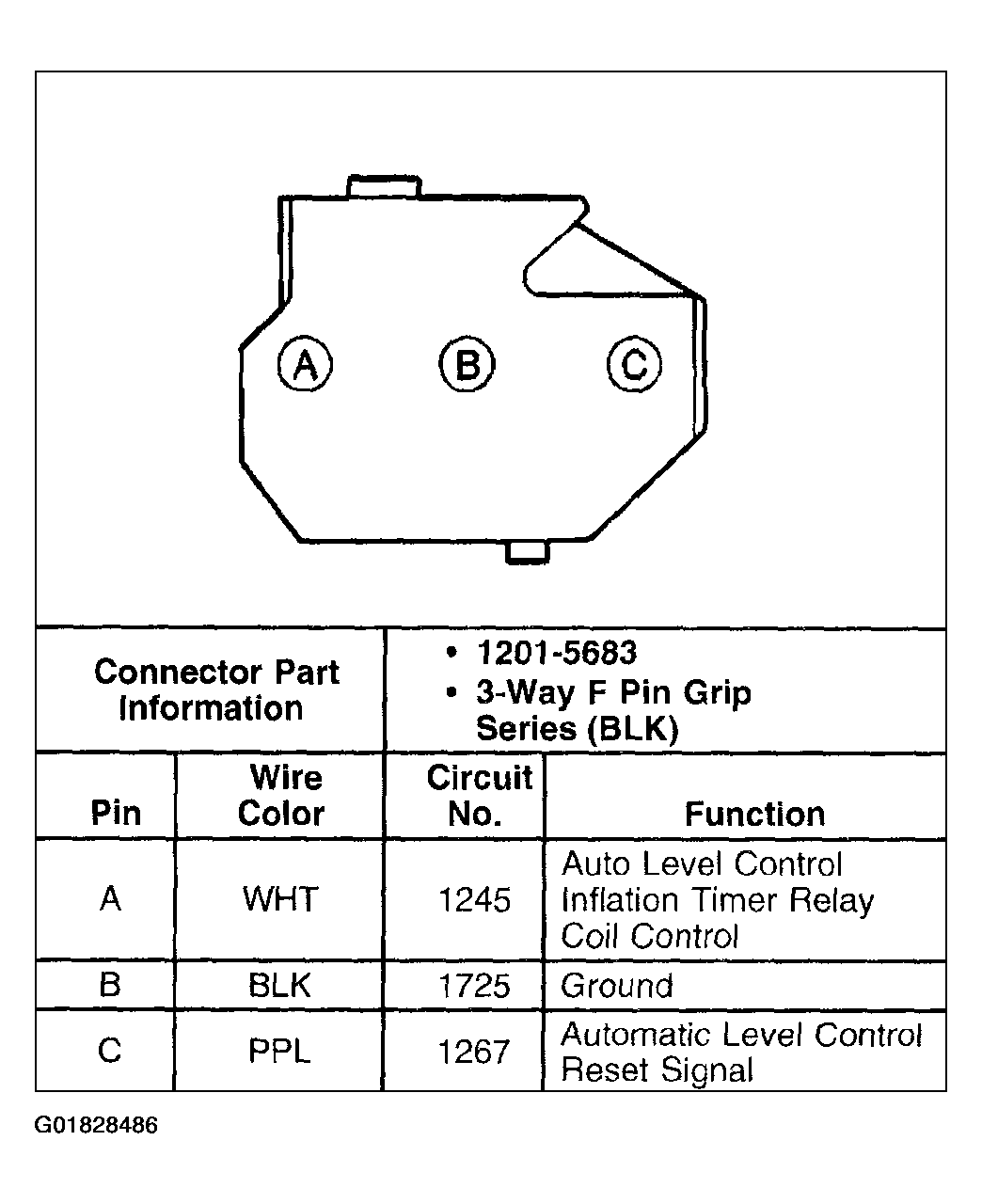

Fig 1: Air Inflator Switch
G01828486Courtesy of GENERAL MOTORS CORP.

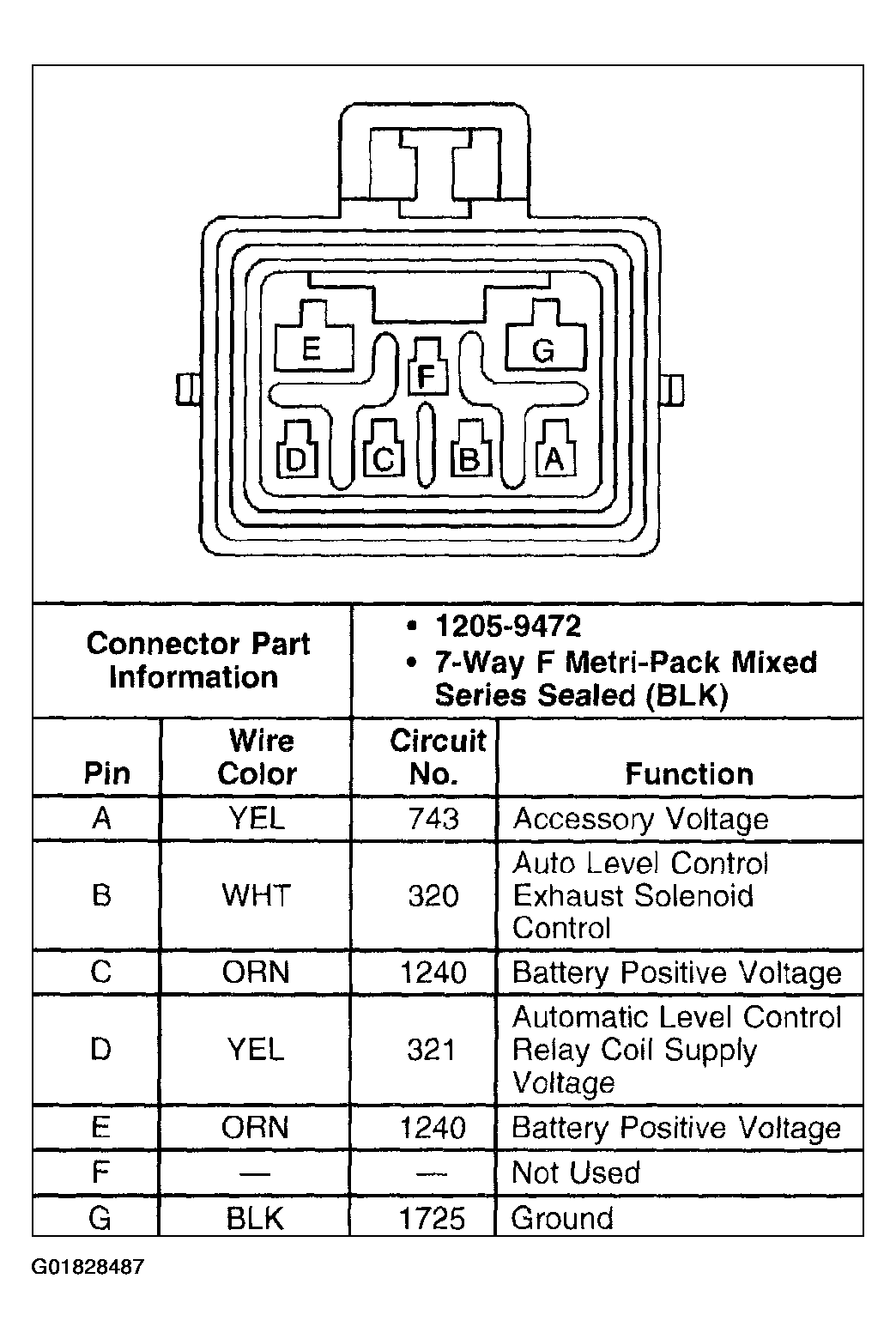

Fig 2: Auto Level Control (ALC) Air Compressor-With Inflator
G01828487Courtesy of GENERAL MOTORS CORP.

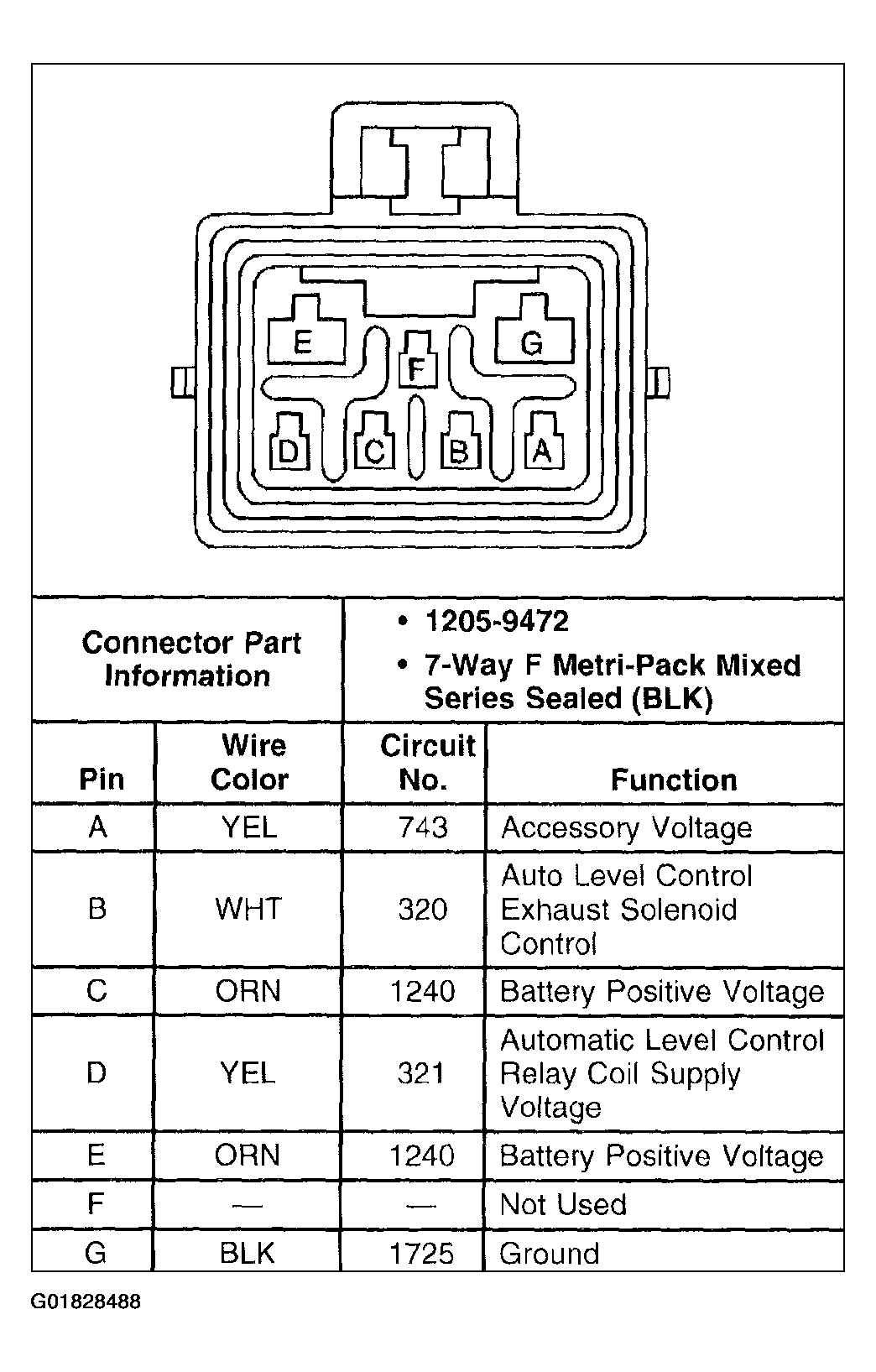

Fig 3: Auto Level Control (ALC) Air Compressor-Without Inflator
G01828488Courtesy of GENERAL MOTORS CORP.

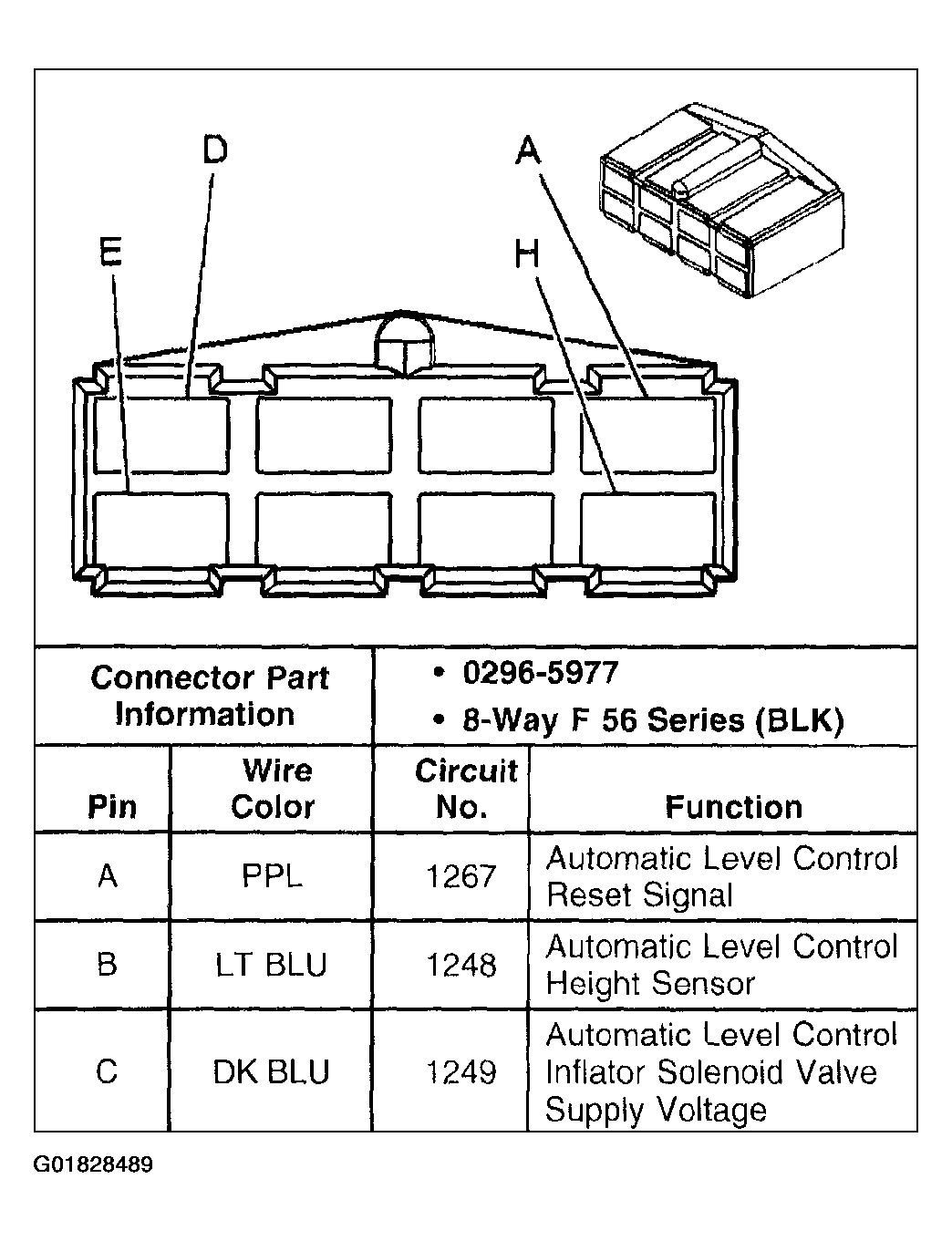

Fig 4: Auto Level Control (ALC) Air Inflator Relay (1 Of 2)
G01828489Courtesy of GENERAL MOTORS CORP.

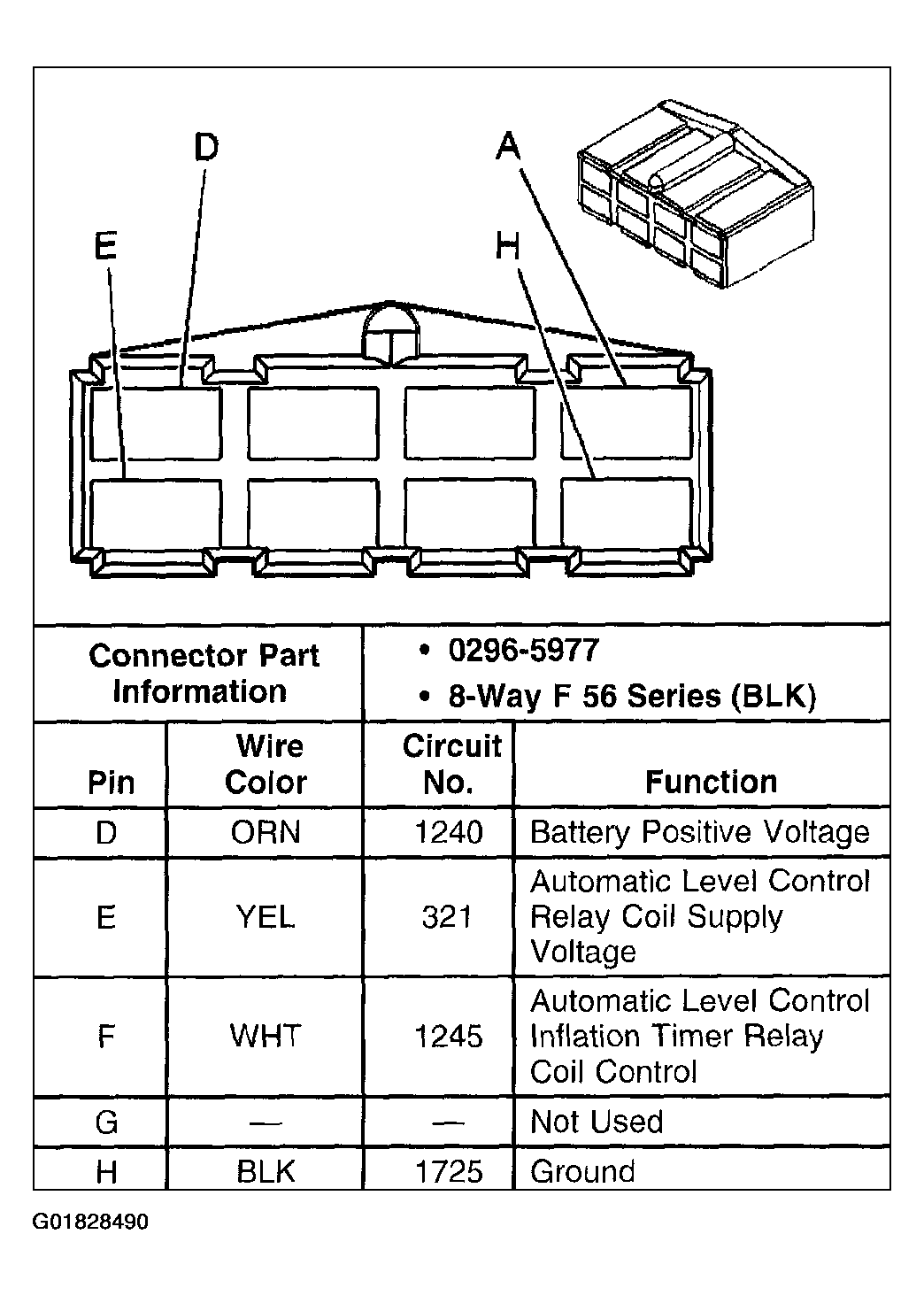

Fig 5: Auto Level Control (ALC) Air Inflator Relay (2 Of 2)
G01828490Courtesy of GENERAL MOTORS CORP.

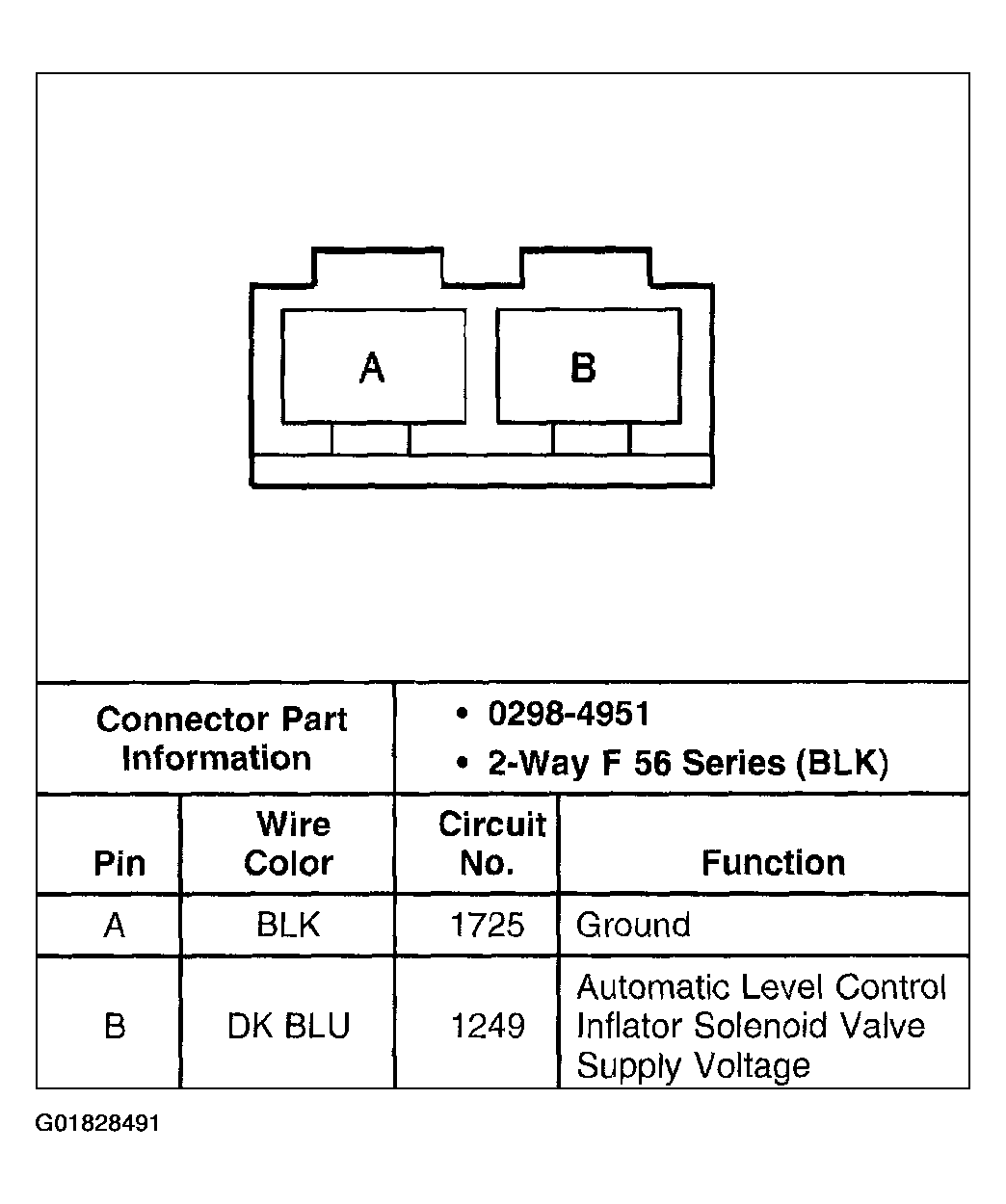

Fig 6: Auto Level Control (ALC) Air Inflator Solenoid
G01828491Courtesy of GENERAL MOTORS CORP.

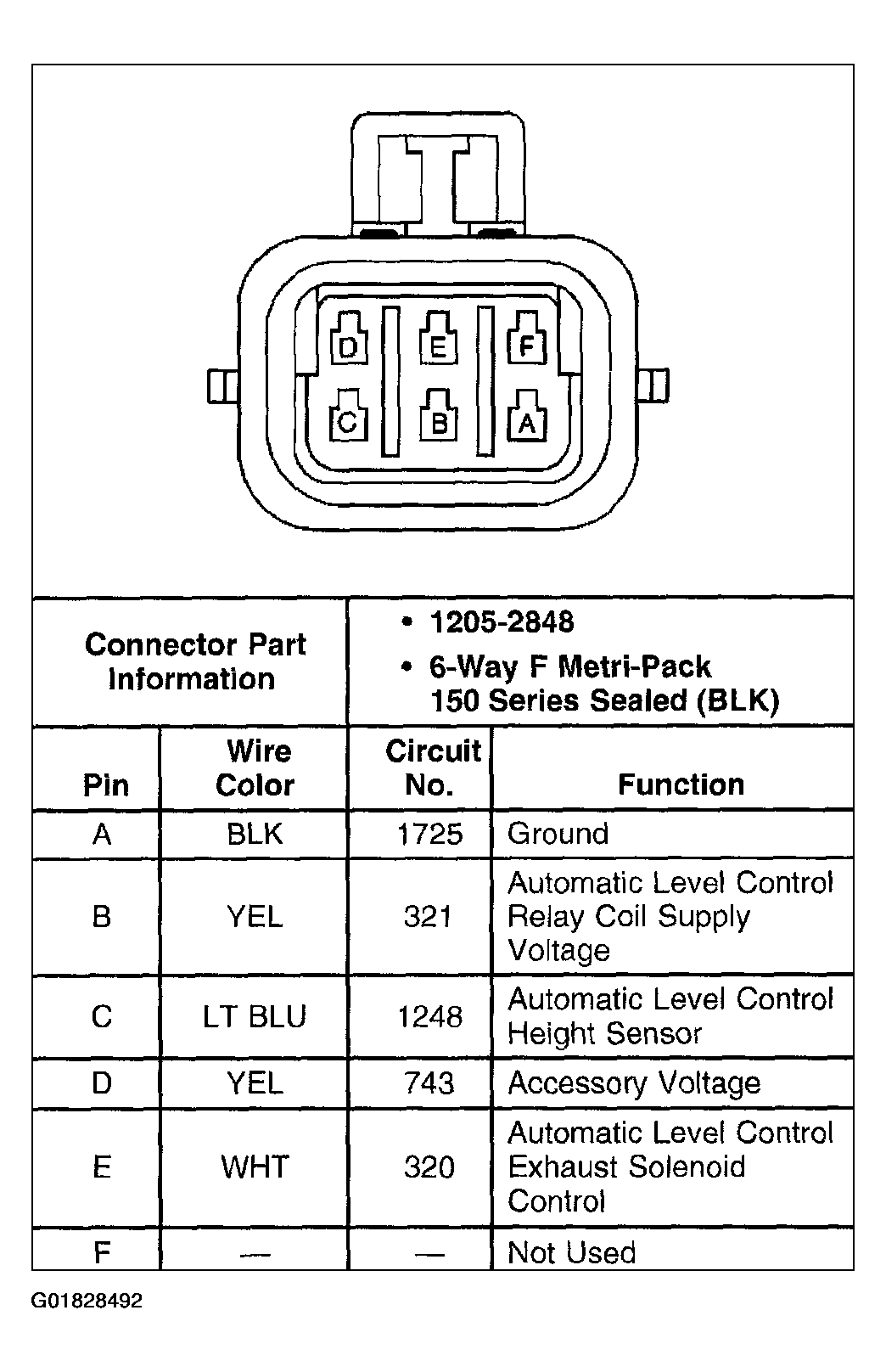

Fig 7: Auto Level Control (ALC) Sensor - With Inflator
G01828492Courtesy of GENERAL MOTORS CORP.

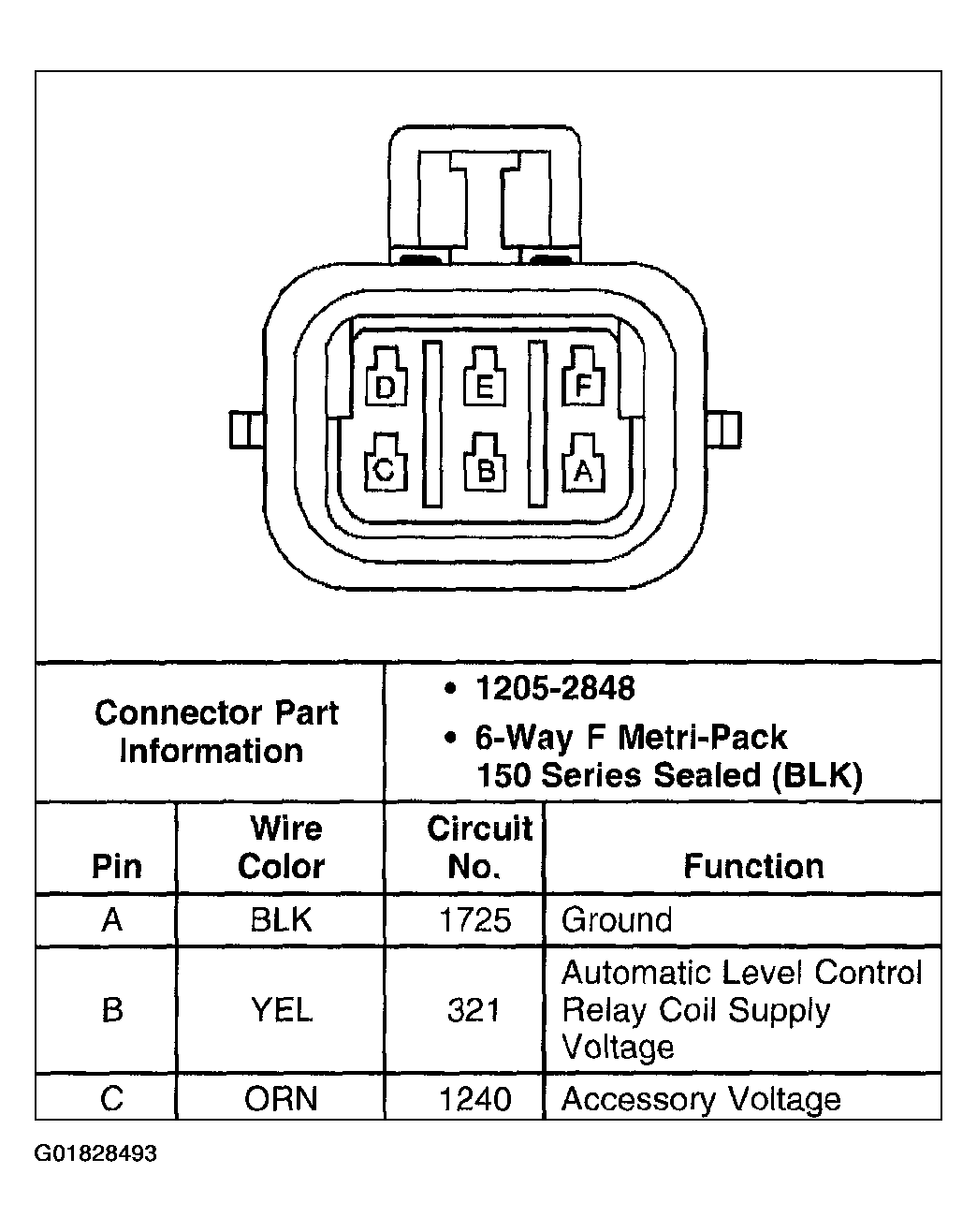

Fig 8: Auto Level Control (ALC) Sensor - Without Inflator (1 Of 2)
G01828493Courtesy of GENERAL MOTORS CORP.

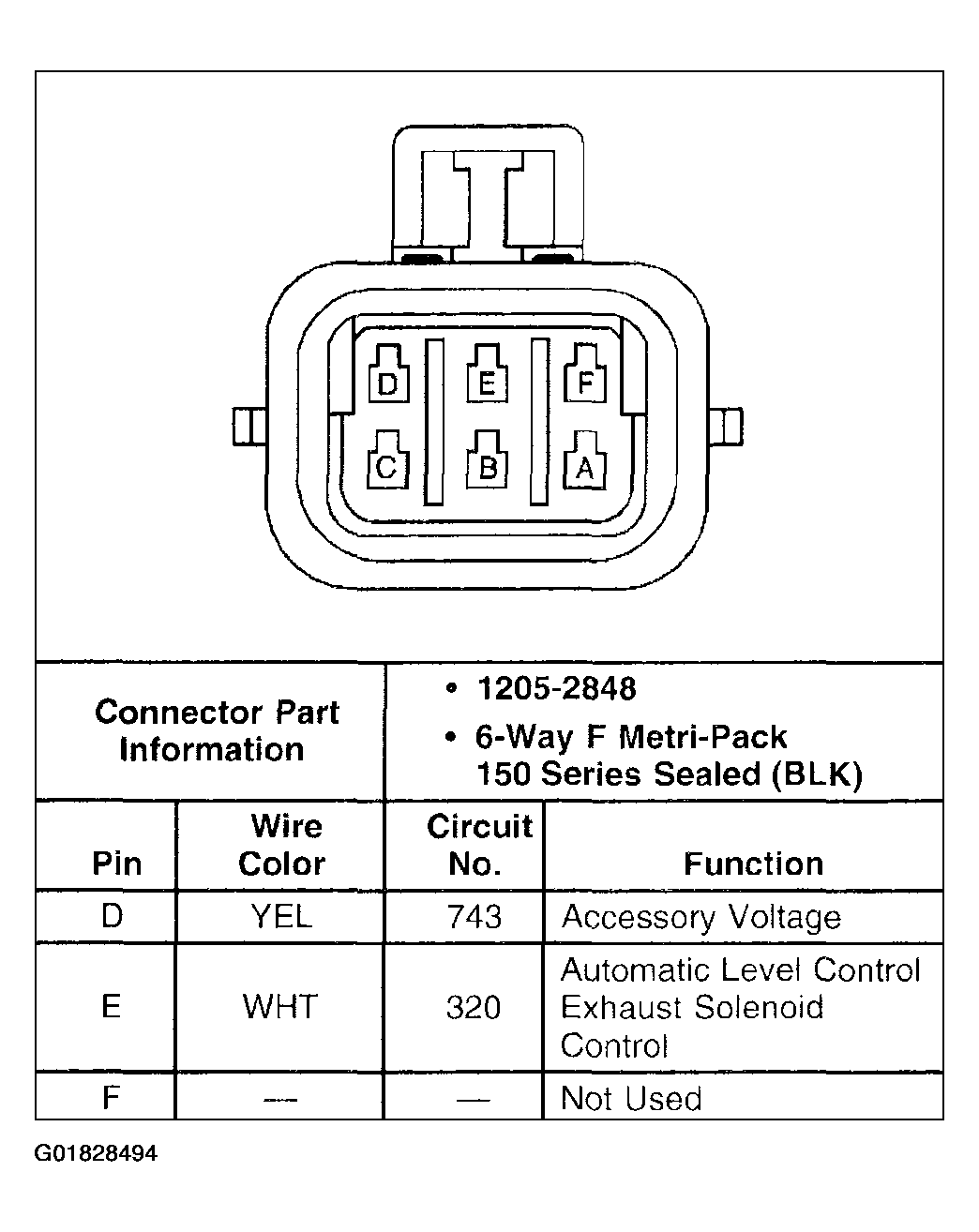

Fig 9: Auto Level Control (ALC) Sensor - Without Inflator (2 Of 2)
G01828494Courtesy of GENERAL MOTORS CORP.
