Installation Procedure

  1. Install the steering wheel controls switch to the vehicle.

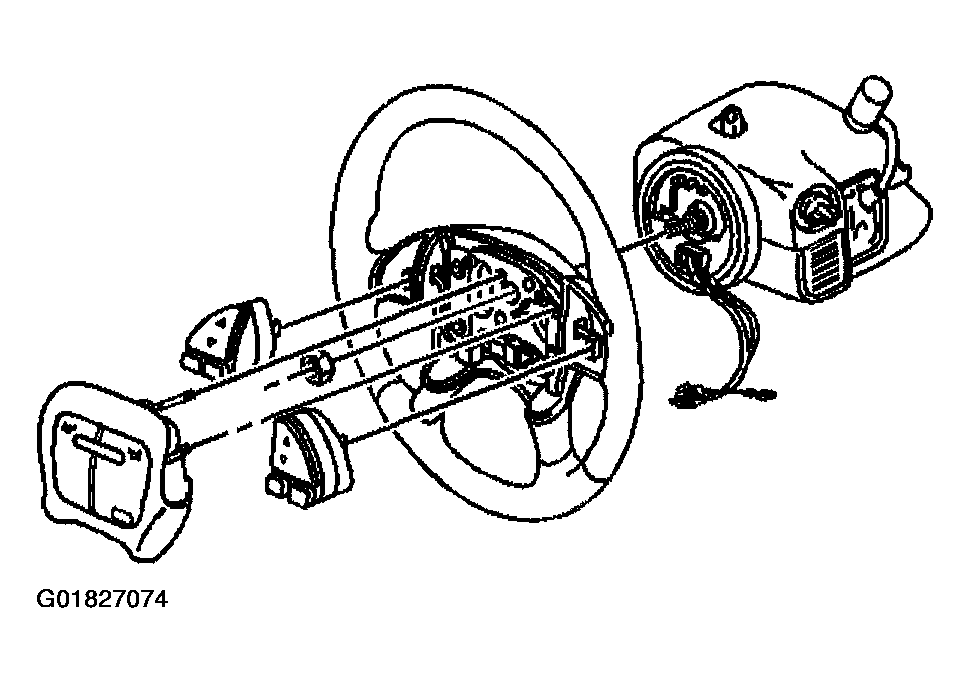

    Fig 1: Steering Wheel Control Switch Assembly (Pontiac)
    G01827074Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector.
  3. Push the steering wheel controls switch into the steering wheel.
  4. Install the steering wheel controls wire harness to the retainers in the steering wheel.
  5. Install the inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
