Removal Procedure
- Remove the drive belt. Refer to DRIVE BELT REPLACEMENT
.
- Remove the power steering hoses from the power steering hose retainers.
IMPORTANT:
Do NOT disconnect the power steering hoses from the power steering pump.
- Remove the power steering pump from the engine for clearance. Refer to Power Steering Pump Replacement .
Courtesy of GENERAL MOTORS CORP.

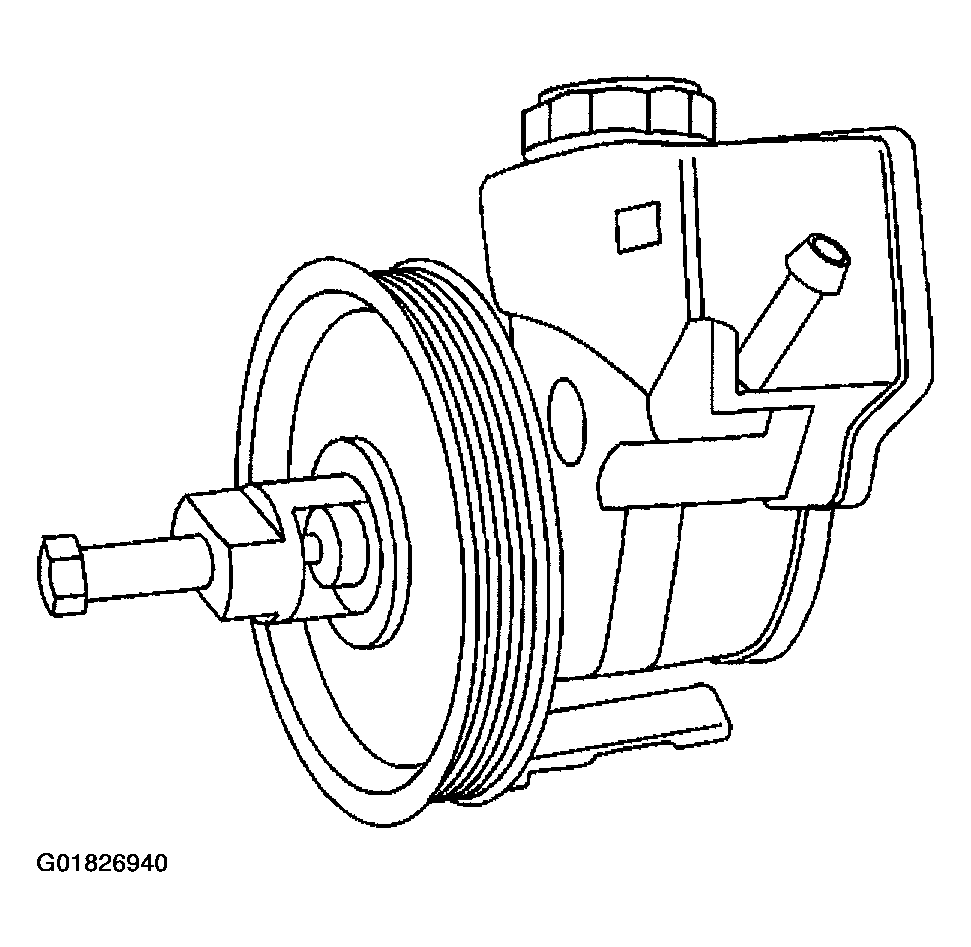

- Use J 37609-A
in order to remove the pump pulley.
